06 SIENNA_U (L/O 0603)
312
2006 SIENNA from March ‘06 Prod. (OM45443U)

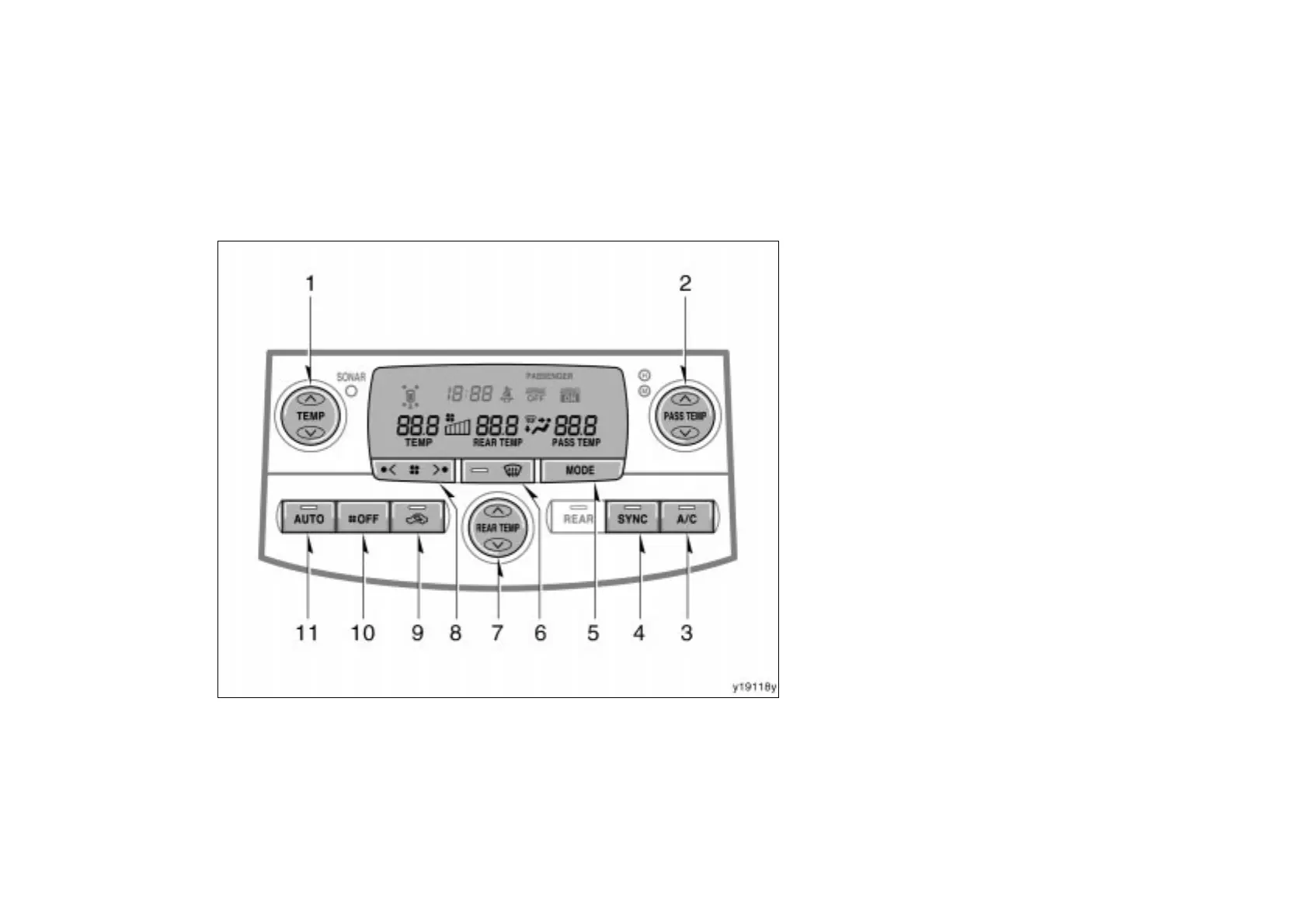

1. Temperature selector (“TEMP”)
(with “SYNC” button indicator
on—simultaneous setting on driver,
front passenger and rear passenger
sides)
(with “SYNC” button indicator
off—individual setting on driver side
only)
2. Temperature selector (“PASS TEMP”)
(individual setting on front passenger
side only)
3. “A/C” button
4. “SYNC” button
(with button indicator on—simultaneous
temperature setting )
(with button indicator off—individual
temperature setting)
5. “MODE” button (air flow selector)
6. Windshield air flow button
7. Temperature selector (“REAR TEMP”)
(individual setting on rear passenger
side only)
8. Fan speed selector
9. Air intake selector
10. “OFF” button
11. “AUTO” button
Front automatic air conditioning system—
—Controls
