577
7
7-3. Do-it-yourself maintenance
Maintenance and care
check that the connection is locked.

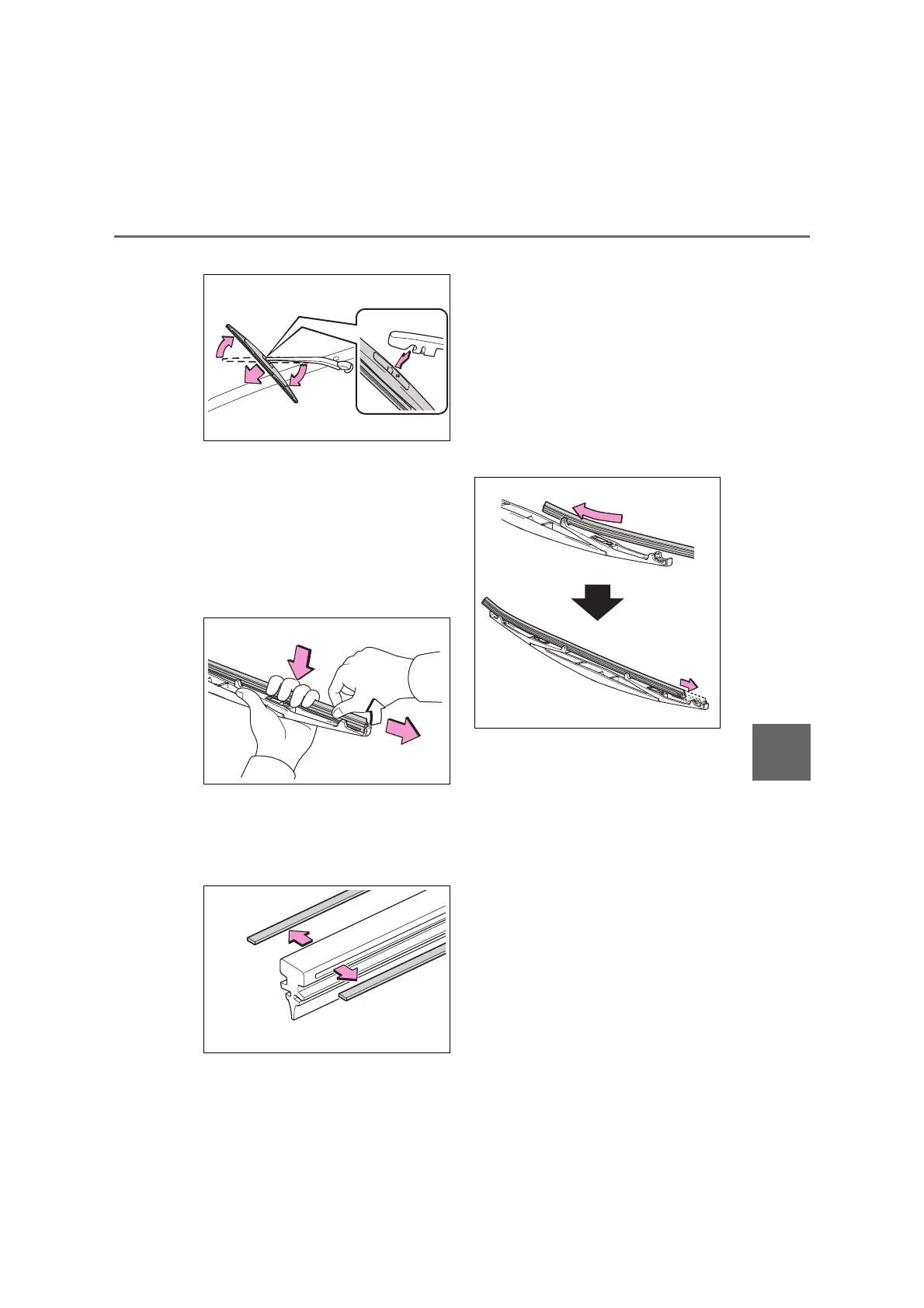

■ Wiper rubber replacement
1 Pull the wiper rubber out past
the stopper on the wiper blade,
and then continue to pull until it
is completely removed.
Lightly grasp between the claws of the
wiper blade to allow the wiper rubber to
lift up, making it easier to remove.
2 Remove the 2 metal plates from
the old wiper rubber and install
them to the replacement wiper
rubber.
3 Insert the wiper rubber starting
from the claw at the center of
the wiper blade. Pass the wiper
rubber through the 3 claws so
that it sticks out from the stop-
per, and then pass the wiper
rubber through the final remain-
ing claw.
Applying a small amount of washer fluid
to the wiper rubber can make it easier
to insert the claws into the grooves.
4 Check that the wiper blade
claws are fitted in the grooves of
the wiper rubber.
If the wiper blade claws are not fitted in
the grooves of the wiper rubber, grasp
the wiper rubber and slide it back and
forth multiple times to insert the claws
into the grooves.
Lightly lift up the center of the wiper
rubber to make the rubber easier to
To Next Page
