331
Fuses

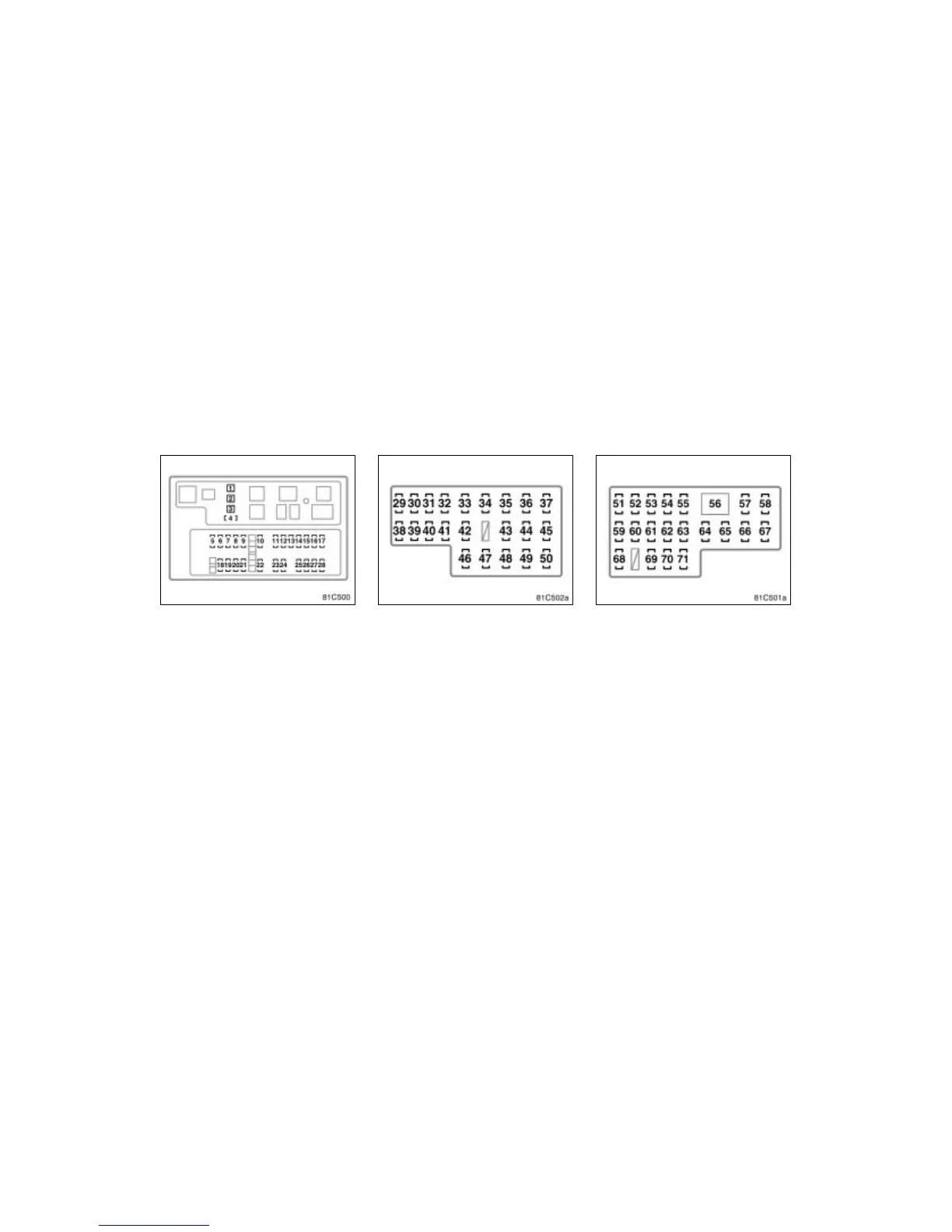

Engine compartment
Fuses
1. ABS NO.2 40 A: Anti- lock brake sys-
tem
2. ABS NO.1 50 A:
Anti- lock brake system
3. AHC 50 A: No circuit
4. ST1 7.5 A:
Mutiport fuel injection system/
Sequential multiport fuel injection
5. TOWING 30 A: Trailer lights
6. MIR HTR 15 A: Outside rear view mirror
defogger
7. RR HTR 10 A: Rear air conditioning sys-
tem
Left side kick panel
8. HAZ- TRN 15 A: Emergency flashers,
Turn signal lights
9. ALT- S 7.5 A: Charging system
10. NV-IR 20 A: No circuit
11. FR FOG 15 A:
Fog lights
12. TOWING BRK 30 A: Trailer lights
13. HEAD CLNER 20 A:
Headlight cleaner
14. FR-IG 10 A: Charging system
15. PANEL 7.5 A: Instrument panel light
16. TOWING TAIL 30 A: Trailer lights
17. TAIL 15 A: Parking lights, Tail lights
Right side kick panel
18. BAT 30 A: All components in “ECU- B2”
19. TEL 7.5 A: No circuit
20. AMP 30 A: Audio system
21. EFI or ECD No.1 25 A: Multiport fuel
injection system/Sequential multiport fuel
injection system
22. AM2 15 A: All components in “IGN”
23. ETCS 10 A: Multiport fuel injection sys-
tem/Sequential multiport fuel injection sys-
tem
24. HORN 10 A: Horns
25. HEAD (RH- LWR) 10 A: Right- hand
headlight (low beam)
To Next Page
