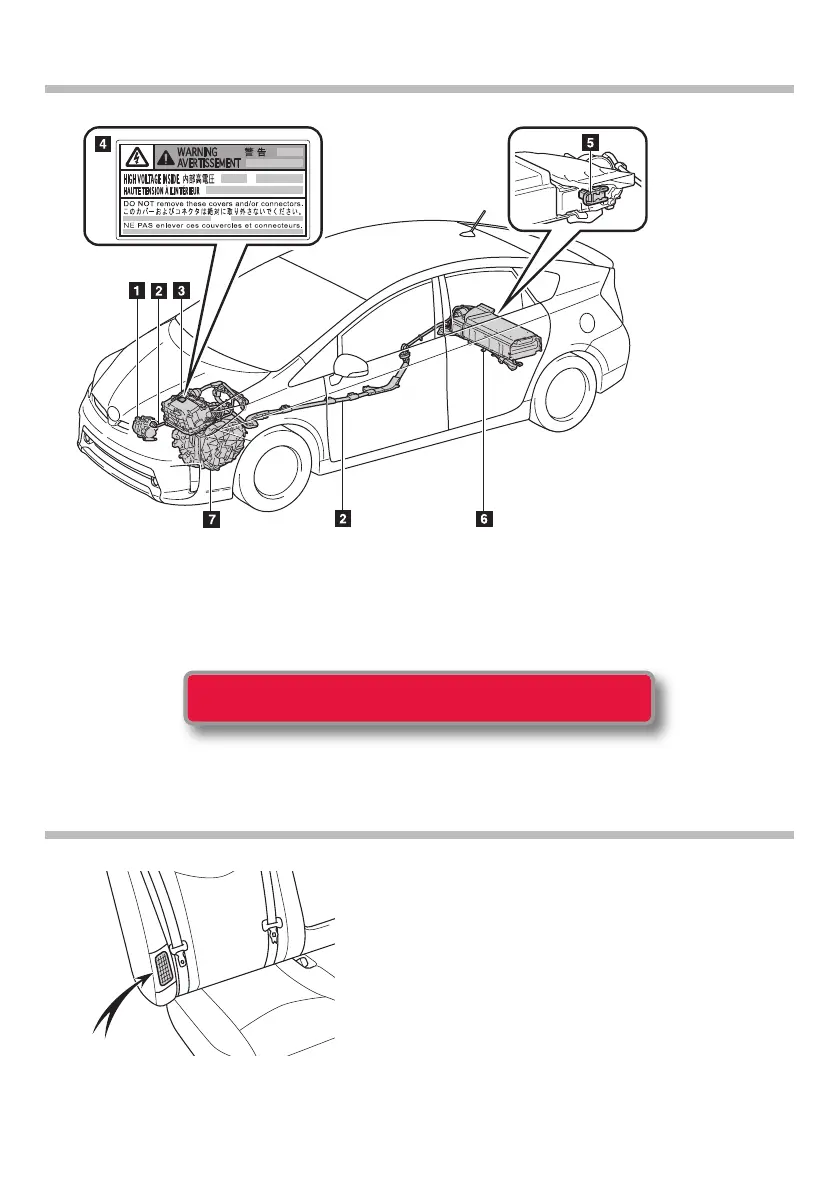

High voltage components
Hybrid battery air vent
1. Air conditioning compressor.
2. High voltage cables (orange colour).
3. Power control unit and DC/DC converter.
4. Caution label.
5. Service plug.
6. Hybrid battery (Traction battery).
7. Electric motor (Traction motor).
There is an air intake vent on the side of the rear right
seat back to cool the hybrid battery. If it becomes
blocked, hybrid battery may overheat causing
reduction of battery output.
Take care when handling the hybrid system, as it contains a high
voltage system and some parts become extremely hot.
