TP-Link AC50 User Manual

101

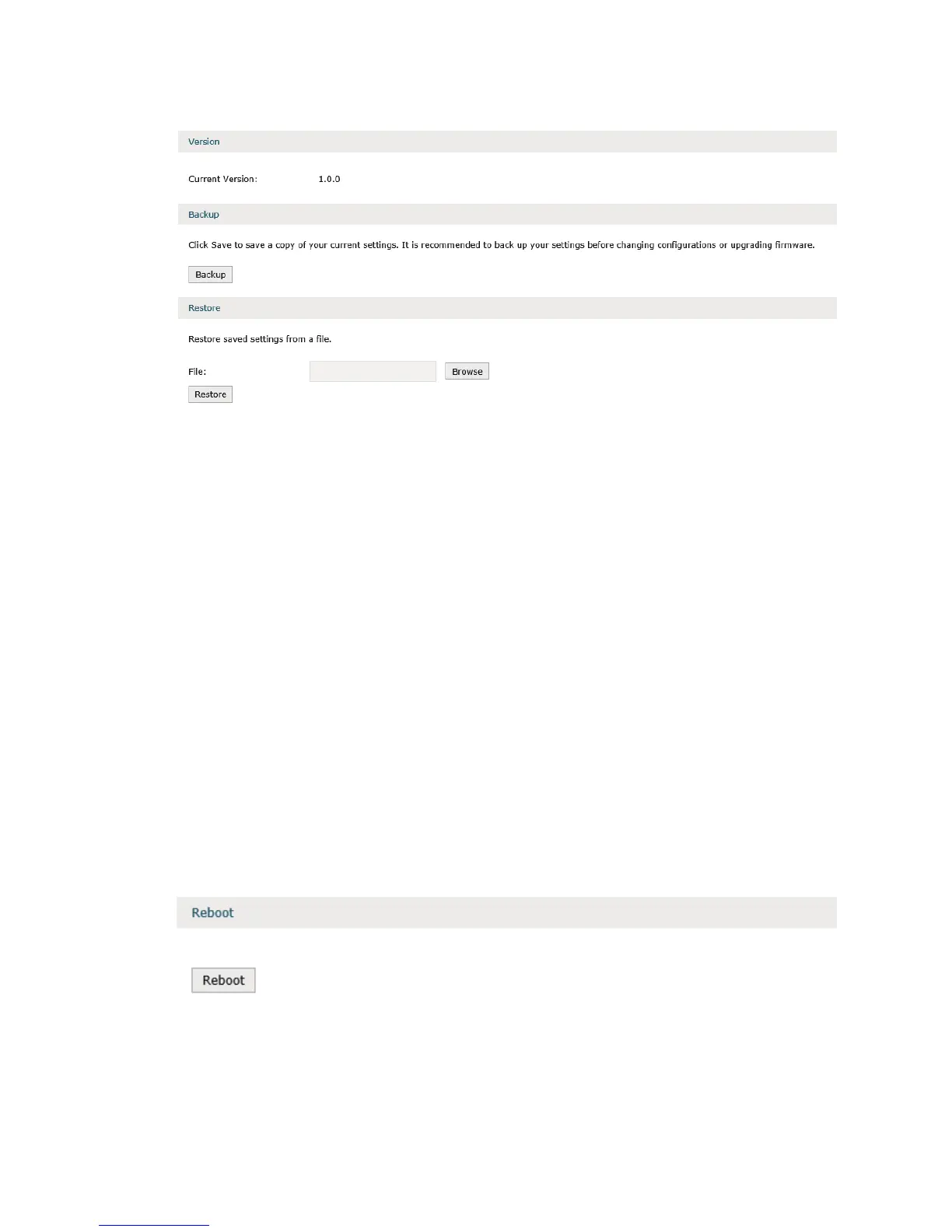

Figure 9-5 Backup & Restore

Version
View the current version.

Backup
Click Backup to save a copy of your current settings. Please save your copy in a secure file
location. It is recommended to back up the settings before you change the configurations
and upgrade the firmware.

Restore
Click Browse to locate and select the backup file, then click Restore to import the file to
recover the configurations.
Note:
• Please keep the power supply stable and avoid power o during the backup and import process.
• If the version of the imported conguration le diers a lot from the current version of the controller, the
conguration information may be lost.
9.2.3 Reboot
Choose the menu System Tools > Administration > Reboot to load the following page.
Figure 9-6 Reboot
Click Reboot to reboot your device. Some settings will be applied only after the device has
rebooted.
Note:
DO NOT power o your device while it is rebooting.

TP-Link AC50 Specifications

General

Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Input voltage	100 - 240 V
Input frequency	50/60 Hz
VLAN support	Yes
Security algorithms	802.1x RADIUS, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MAC
Certification	CE, FCC, RoHS
Product color	Black
Cables included	AC
Compatible operating systems	Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, MAC OS, NetWare, UNIX, Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	16 MB
Internal memory	128 MB
Processor frequency	650 MHz
Control display unit	-
Internal memory type	DDR2
Number of processors installed	1
Package type	Box
Package depth	223 mm
Package width	285 mm
Package height	68 mm
Package weight	1030 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	126 mm
Width	209 mm
Height	26 mm
