TP-Link Archer C20 User Manual

Archer C20
AC750 Wireless Dual Band Router
- 110 -
3) PPPoEv6

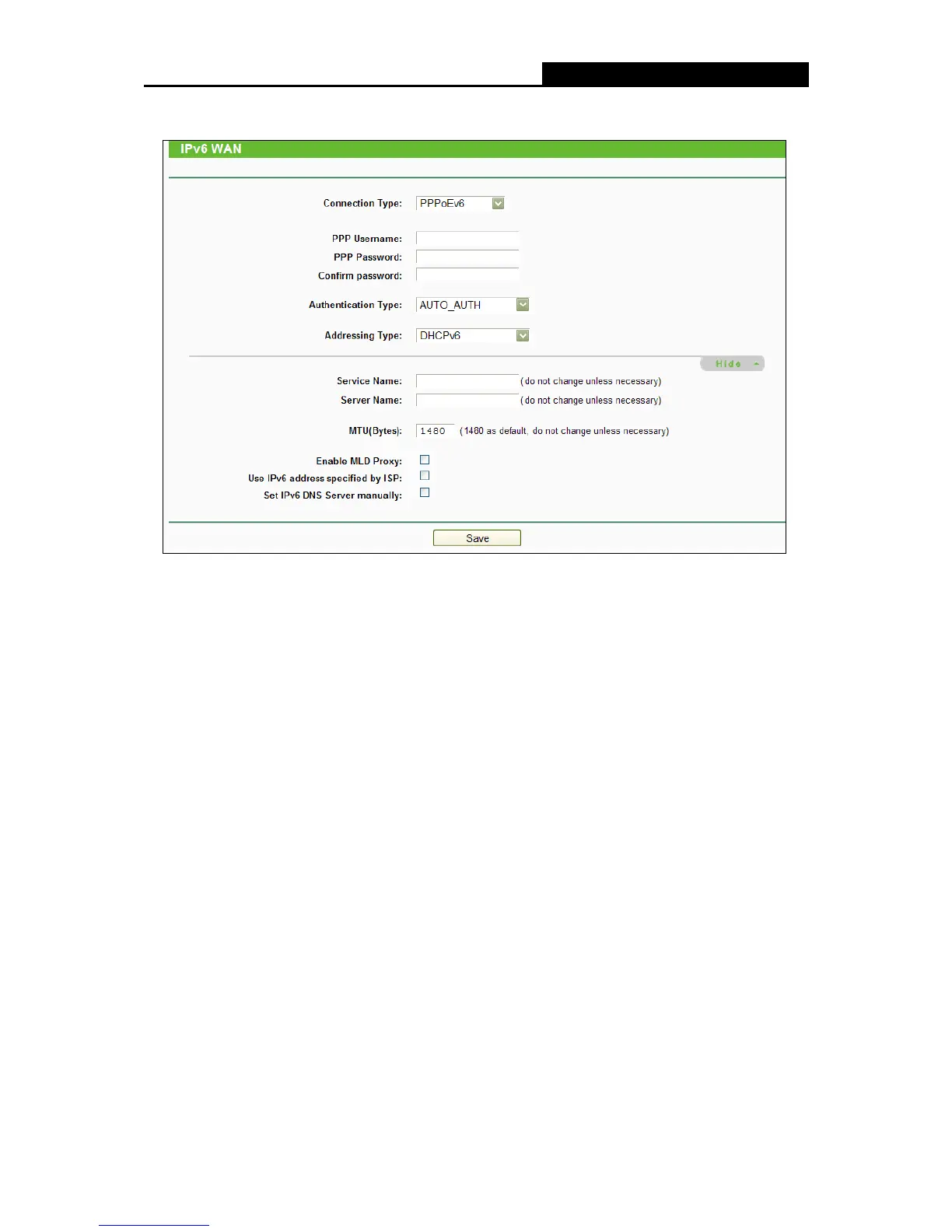

Figure 4-105 PPPoEv6
 PPP Username/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive.
 Authentication Type – Choose one authentication type from AUTO-AUTH, PAP, CHAP and
MS-CHAP.
 Addressing Type - There are two types of assignation for IPv6 address: SLAAC (Stateless
address auto-configuration) and DHCPv6 (Dynamic Host Configuration Protocol for IPv6)
Server.
 MTU(Bytes) - The normal MTU (Maximum Transmission Unit) value for most Ethernet
networks is 1500 Bytes. For some ISPs, you may need to modify the MTU. But this is rarely
required, and should not be done unless you are sure it is necessary for your ISP connection.
 Enable MLD Proxy - Enable the Multicast Listener Discovery (MLD) Proxy function if you need.
 Use IPv6 address specified by ISP - Input a static IPv6 address from the ISP.
 Set IPv6 DNS Server manually - Enter the IP address of the IPv6 DNS server and
secondary IPv6 DNS server.

TP-Link Archer C20 Specifications

General

Color	blue/white, blue
Wi-Fi Speed	0.733 gigabits per second
Band Technology	dual
Frequency Band	2.4 ghz, 5.0 ghz
QoS Traffic Prioritization	yes
Ethernet Standard	10/100
Ethernet Switch	yes
Wireless Networking Standard	wi-fi 5
Wireless Standard	ac, n
2.4 Ghz Streams	1
5.0 Ghz Streams	1
Antennas	3
Firewall	spi
Data Encryption	yes
Encryption Type	wpa, wpa2, wpa-psk, wpa2-psk
Ports	rj-45
LAN Ports	4
WAN Ports	1
Built In Modem	no

Weight and Dimensions

Height	1.4 inches
Width	9.1 inches
