TP-Link Archer C20 User Manual

Archer C20
AC750 Wireless Dual Band Router
- 49 -
If the numbers of connected wireless stations go beyond one page, click the Next button to go to
the next page and click the Previous button to return the previous page.

Note:
This page will be refreshed automatically every 5 seconds.
4.7 Wireless 5GHz

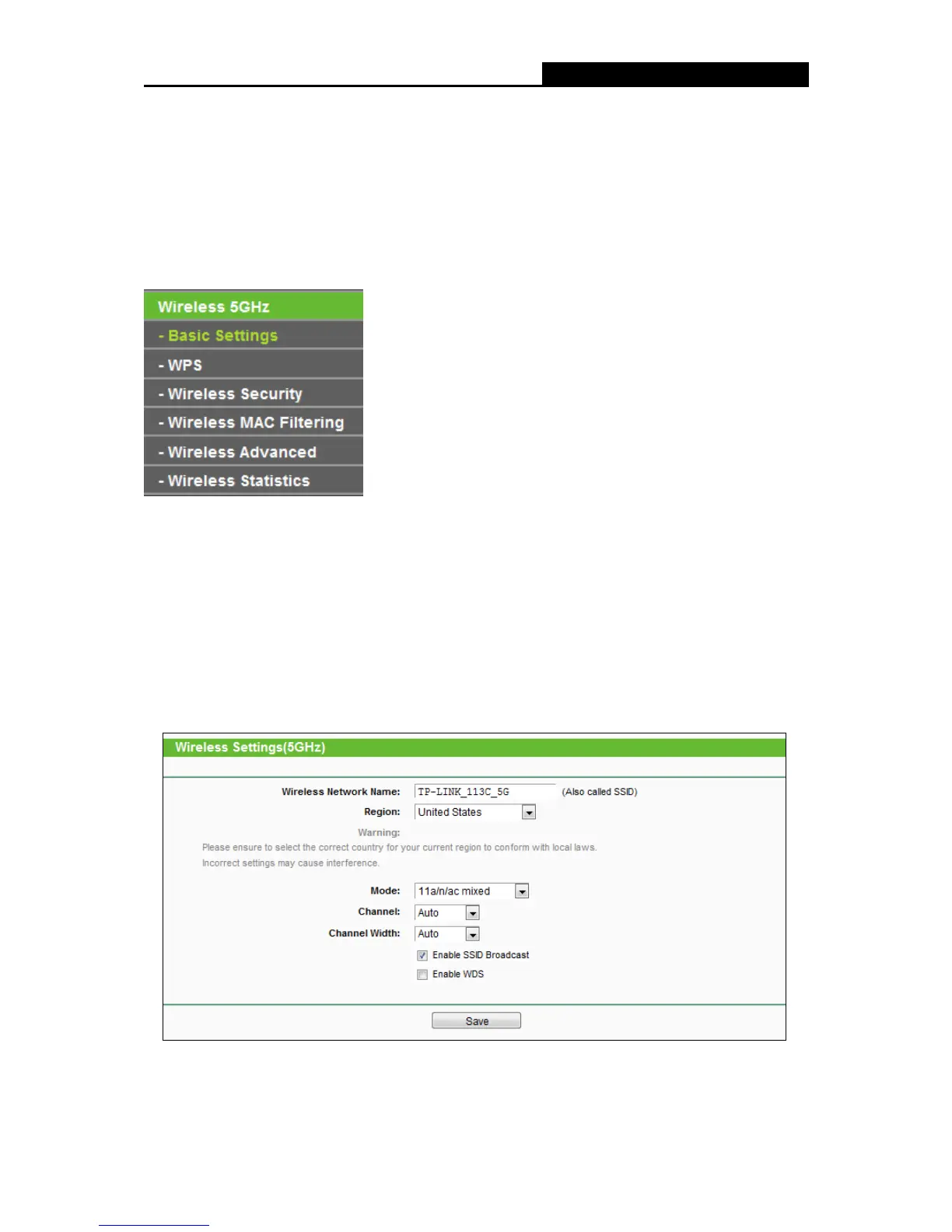

Figure 4-29 Wireless menu
There are six submenus under the Wireless menu (shown in Figure 4-29): Basic Settings, WPS,
Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click
any of them, and you will be able to configure the corresponding functions.
4.7.1 Basic Settings
Choose menu “Wireless 5GHz
→
Basic Settings”, you can configure the basic settings for the
wireless network of 5GHz on this page.
Figure 4-30 Wireless Settings – 5GHz

TP-Link Archer C20 Specifications

General

Color	blue/white, blue
Wi-Fi Speed	0.733 gigabits per second
Band Technology	dual
Frequency Band	2.4 ghz, 5.0 ghz
QoS Traffic Prioritization	yes
Ethernet Standard	10/100
Ethernet Switch	yes
Wireless Networking Standard	wi-fi 5
Wireless Standard	ac, n
2.4 Ghz Streams	1
5.0 Ghz Streams	1
Antennas	3
Firewall	spi
Data Encryption	yes
Encryption Type	wpa, wpa2, wpa-psk, wpa2-psk
Ports	rj-45
LAN Ports	4
WAN Ports	1
Built In Modem	no

Weight and Dimensions

Height	1.4 inches
Width	9.1 inches
