TP-Link MC200CM User Manual

8
Note:

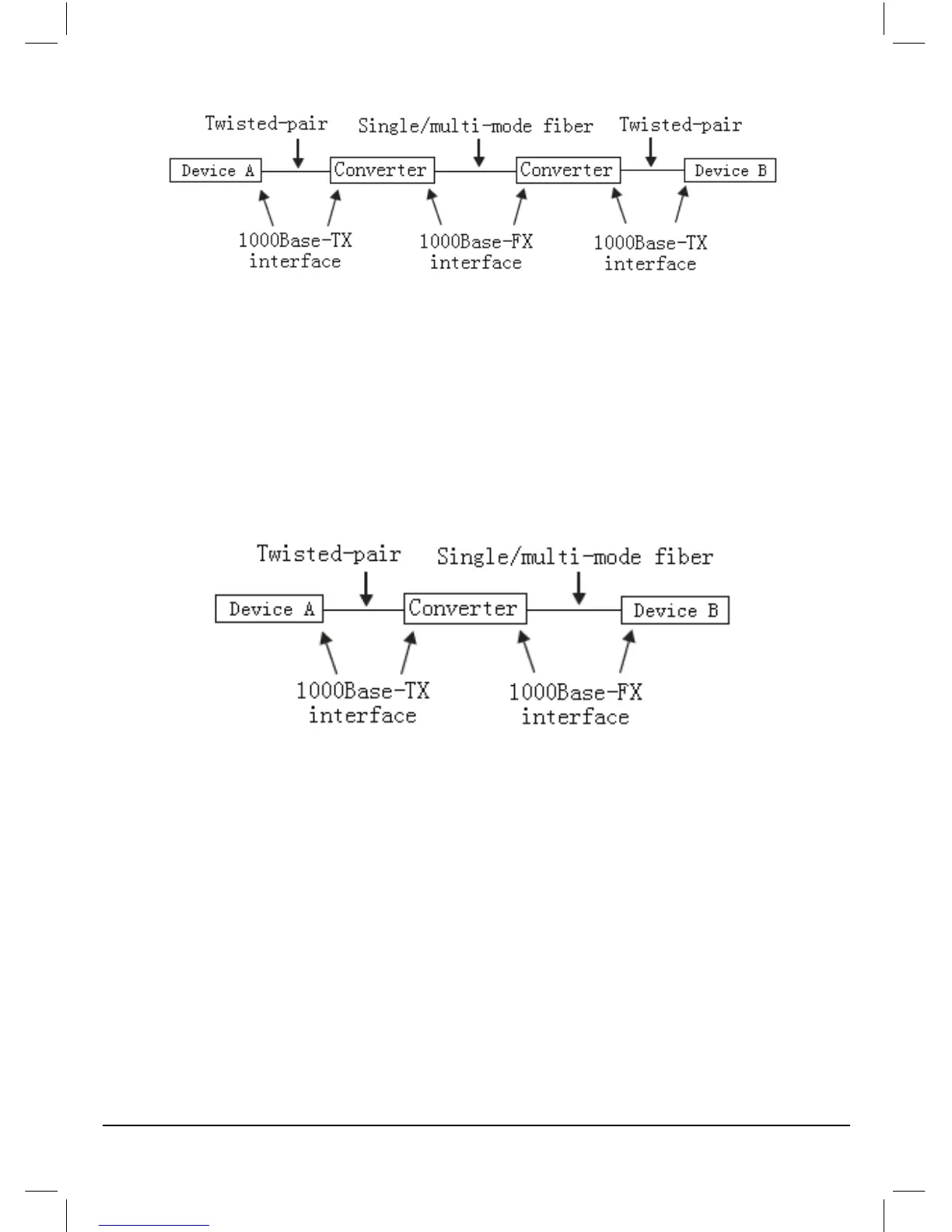

For the correct connection between 2 Media Converters, please refer to
connection diagram in 4.1 ---- two MC200CM, two MC210CS, two
MC220L or one MC220L with another MC200CM/MC210CS.
2. Another effective application is to place one converter directly
between a 1000Base-TX network and a fiber optic (FX) device.
4.3 Installation Procedure
Use a fiber cable to connect two converters, or connect a converter with
a 1000Base-FX Device.
1. Connection of a Converter and a 1000Base-TX Device (HUB or
Switch): Make sure that the length of the Cat.5 twisted pair cable
(Category-5) between the 1000Base-TX device and the converter is
less than 100 meters. Connect one end of the Cat.5 twisted pair
cable to the RJ45 jack on the converter and the other end of the
cable to the RJ45 jack on the 1000Base-TX device.

TP-Link MC200CM Specifications

General

DC-in jack	Yes
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	850 nm
Fiber mode structure	Multi-mode
Maximum transfer distance	550 m
Fiber cable diameters supported (core/cladding)	50/125, 62.5/125 µm
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Internal	No
Certification	FCC, CE
Product color	Black
LED indicators	Link
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Power consumption (max)	5.5 W
Sustainability certificates	RoHS
Package depth	165 mm
Package width	204 mm
Package height	65 mm
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	73 mm
Width	94.5 mm
Height	27 mm
