TD-8817 ADSL2+ Ethernet/USB Modem Router User Guide
7
Chapter 3. Quick Installation Guide
3.1 TCP/IP Configuration
The default IP address of the TD-8817 ADSL2+ Ethernet/USB Modem Router is 192.168.1.1. And
the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this
guide, we use all the default values for description.
Connect the local PC to the LAN/WAN port of the Modem Router. configure your PC to obtain IP
address automatically in the following way.
1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If
you need instructions as to how to do this, please refer to Appendix B: "Configuring the PC”
.
2) Then the built-in DHCP server will assign IP address for the PC.

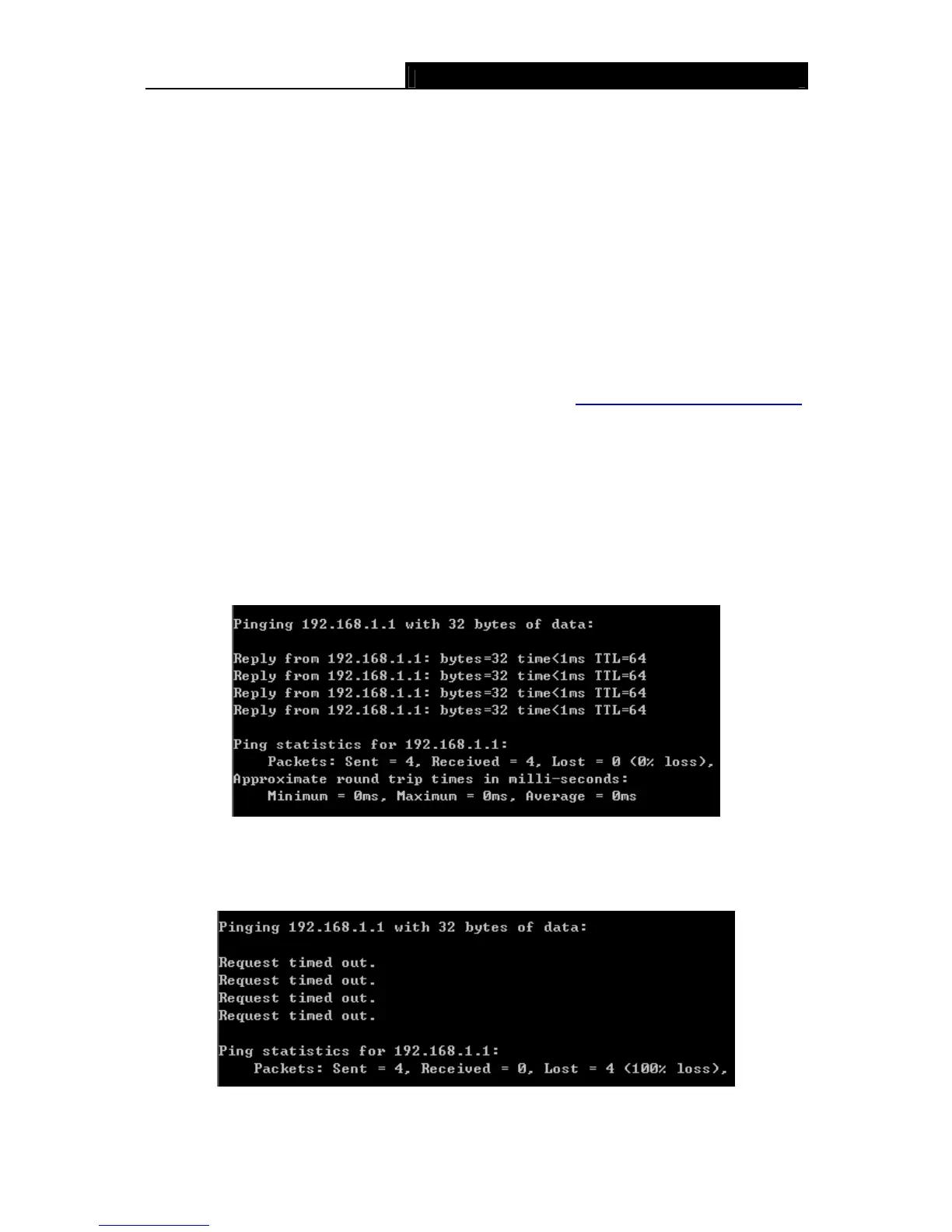

Now, you can run the Ping command in the command prompt to verify the network connection.
Please click the Start menu on your desktop, select run tab, type cmd or command in the field
and press Enter. Type ping 192.168.1.1 on the next screen, and then press Enter.
If the result displayed is similar to the screen below, the connection between your PC and the
modem router has been established.
Figure 3-1
If the result displayed is similar to the screen shown below, it means that your PC has not
connected to the modem router.
Figure 3-2
