TP-Link TL-SF1008P User Manual

7
Note
If all PoE PDs power consumption is >= 53W, a priority* will be
arranged among the PoE ports like port-1 = port-2 = port-3 >
port-4, then the system will cut off the power of the
lowest-priority port.
3.2 Rear Panel

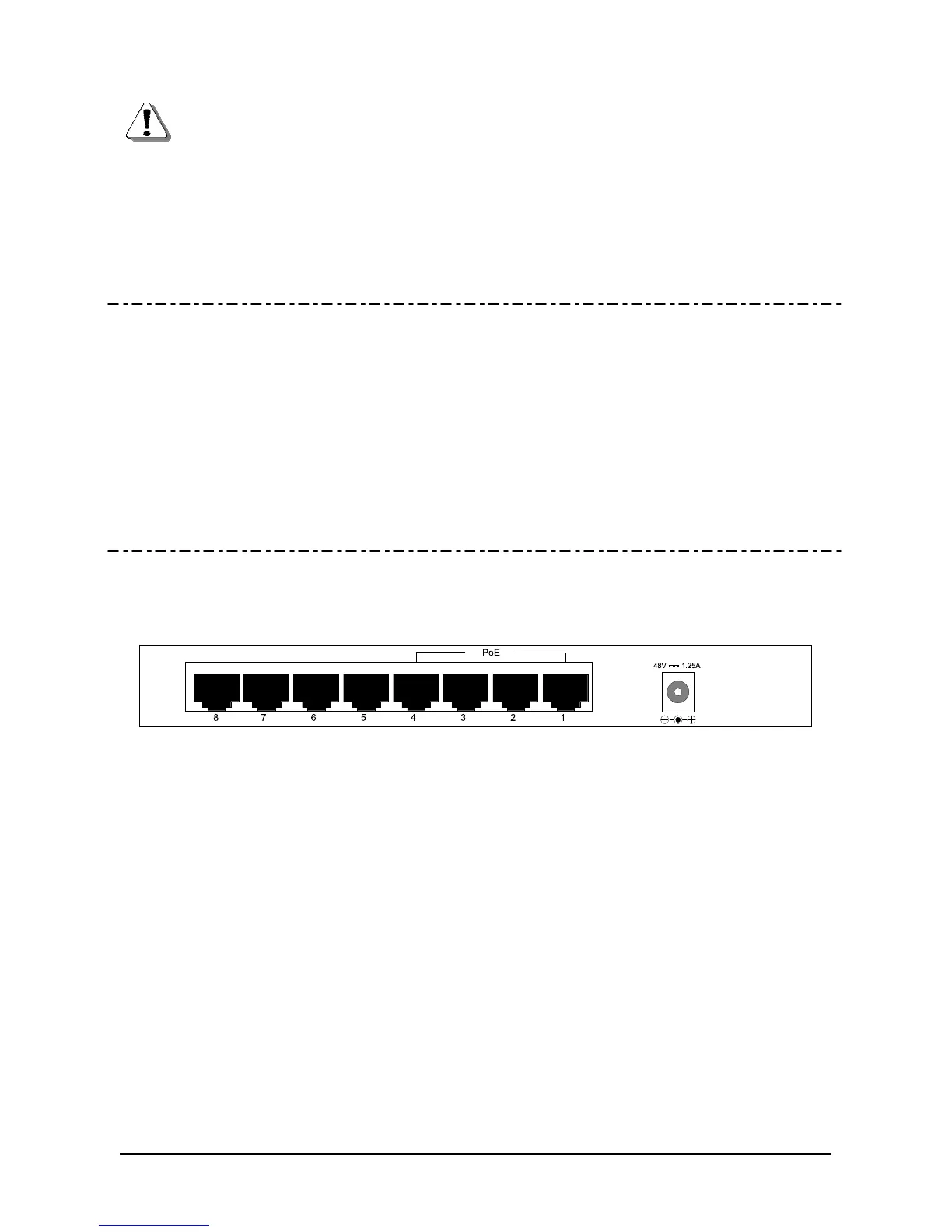

Figure 3-2 TL-SF1008P Switch Rear Panel
The following parts are located on the rear panel:
¾ Power (48V): 48V indicates the input voltage of the power
adapter provided with this TL-SF1008P Switch. The Power
socket is where you will connect the power adapter.
¾ PoE Ports (1-4): These ports support PoE function which
integrates power and data onto one Ethernet cable. Once
the device you connect to the Switch is identified, the Switch
will supply power through the PoE port, and then you can
*Priority: This function will help protect the system when the system
power is overloaded. For example, Port 1, 2 and 4 is using
15.4W (maximum power for per port is 15.4W); the system
power is 46.2W in total. If there is an additional PD inserted
to Port 3 with 10W, and then the system will cut off the
power of Port 4 because of the overloaded power, this means
Port 1, 2 will use 15.4W, and Port3 will use 10W, no power
will be supplied to Port 4.

TP-Link TL-SF1008P Specifications

General

Heat dissipation	248.93 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
User guide	Yes
Package type	Box
Package depth	280 mm
Package width	223 mm
Package height	68 mm
Package weight	970 g
10G support	No
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX
Forwarding rate	1.1904 Mpps
MAC address table	2000 entries
Total Power over Ethernet (PoE) budget	57 W
Power over Ethernet plus (PoE+) ports quantity	8
Switch type	Unmanaged
Product color	Black
Housing material	Metal
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power source	DC/PoE
Input current	1.31 A
AC input voltage	220 V
DC input voltage	53.5 V
AC input frequency	50 Hz
Power consumption (max)	66 W
Harmonized System (HS) code	85176990
IPv4 & IPv6 features	IPv6 portal
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	98 mm
Width	171 mm
Height	27 mm
