TP-Link TL-SG108PE User Manual

Managing System Backing up and Restoring the Switch
User Guide
15
2) Click Open and the following page will be displayed. In the Config Restore section, click
Restore Config to restore the switch to the previous configuration. It will take effect
after the switch automatically reboots.

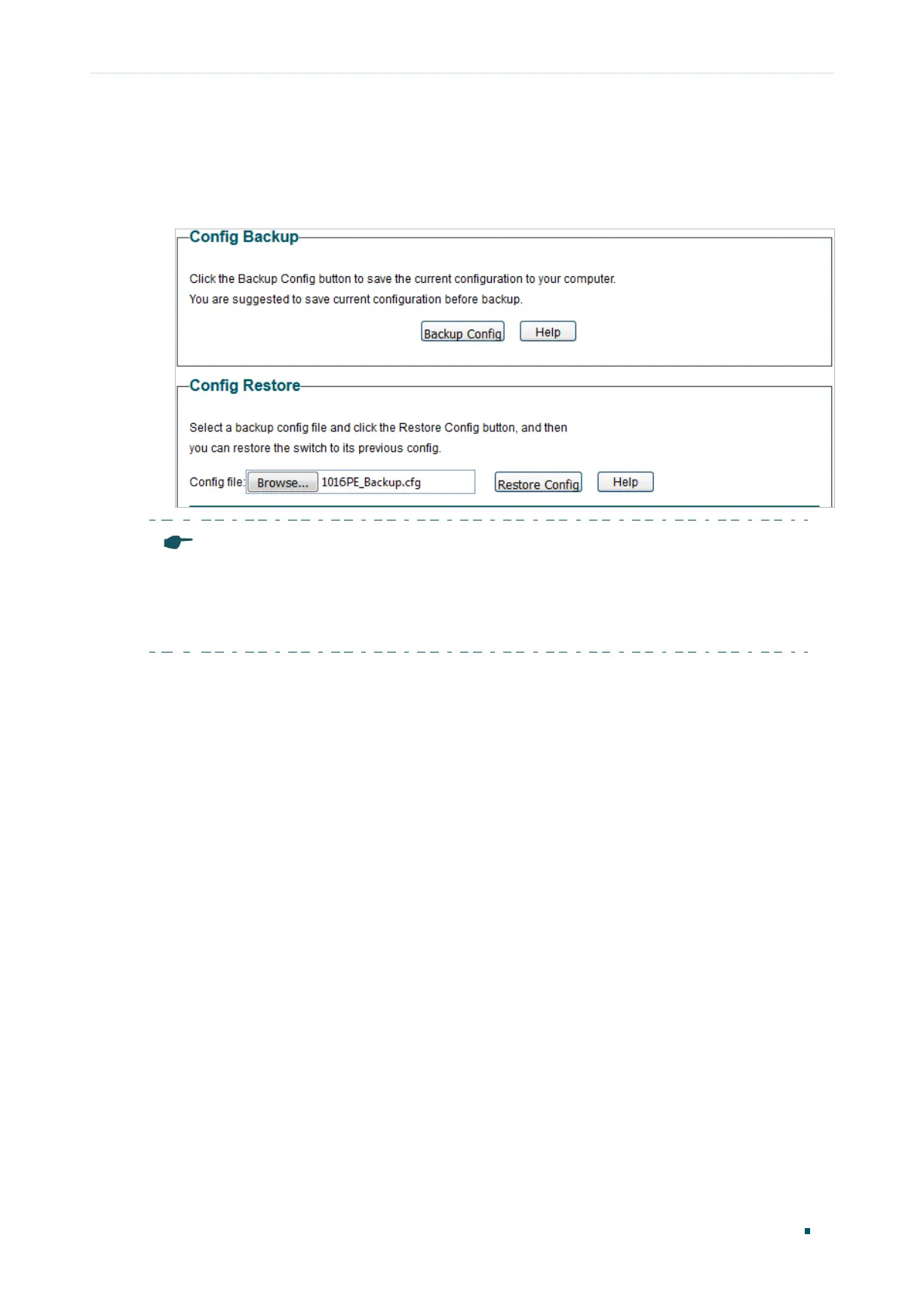

Figure 5-4 Restoring to the Previous Configuration
Note:
•
It will take several minutes to restore the configuration. Wait without any operation.
•
To avoid any damage, do not power down the switch while being restored.
•
After being restored, the current configuration of the switch will be lost.

TP-Link TL-SG108PE Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	32
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Total Power over Ethernet (PoE) budget	64 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	15.4 W
Jumbo frames	15000
Forwarding rate	11.9 Mpps
MAC address table	4000 entries
Packet buffer memory	1.5 MB
Power source	DC
Input current	1.25 A
Input voltage	48 V
Power consumption (max)	65.2 W
Certification	FCC, CE, RoHS
Product color	Black
Rack mounting	-
LED indicators	Activity, Link, PoE, Power, Speed, Status
Package type	Box
Package depth	196 mm
Package width	131 mm
Package height	121 mm
Package weight	890 g
Cables included	AC
Heat dissipation	256.19 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	101 mm
Width	158 mm
Height	25 mm
