TL-WA730RE 150Mbps Wireless N Range Extender User Guide
4.3 Quick Setup
Please refer to Section 3.1 Quick Setup for more details.
4.4 Operation Mode
The Operation Mode option allows you to change the operation mode for your AP, shown in
Figure 4-4.

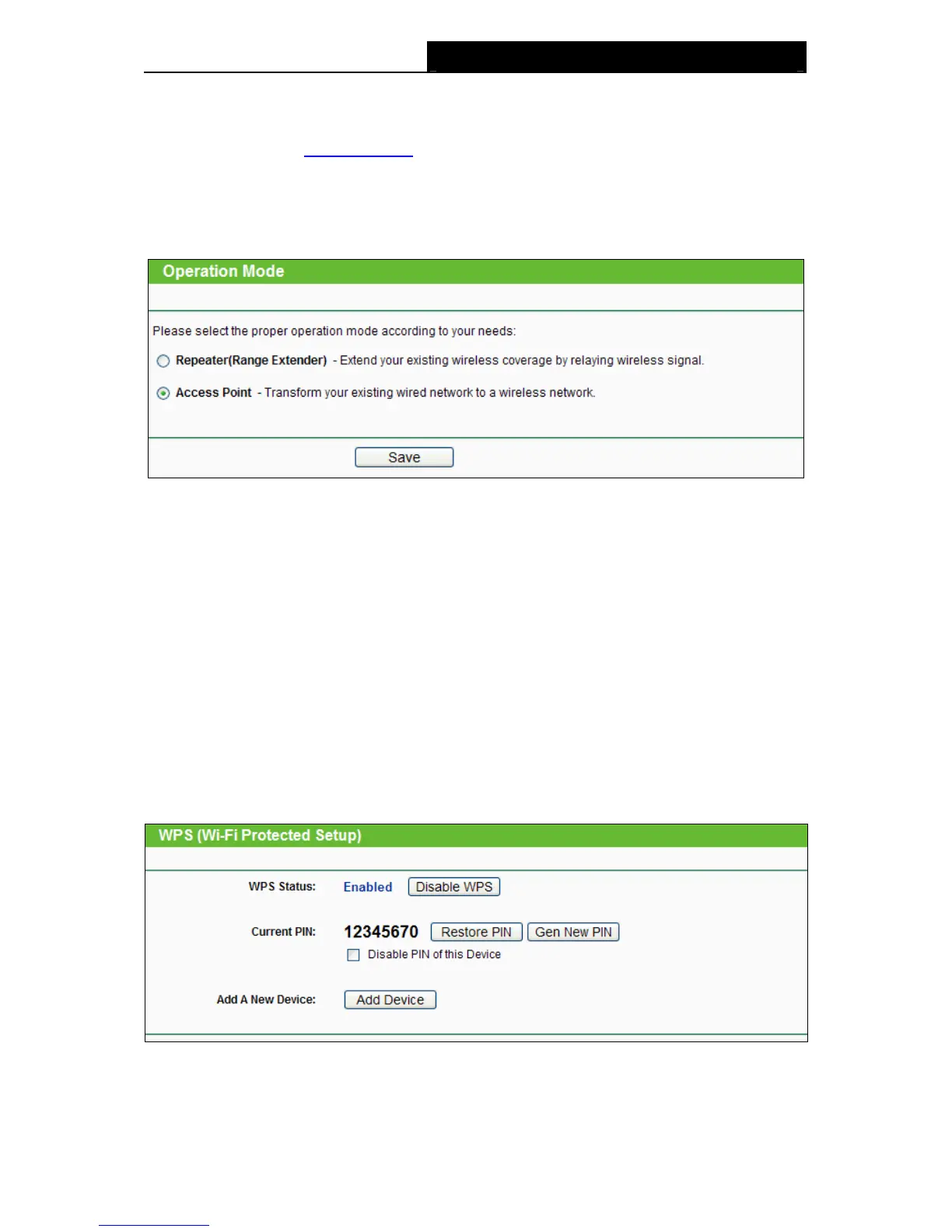

Figure 4-4 Operation Mode
¾ In Repeater (Range Extender) mode, the product can extend the coverage of another
wireless Access Point or Router. The universal repeater mode is for the wireless Access
Point or Router which does not support WDS function.
¾ In Access Point mode, the product will act as a wireless central hub for your wireless
LAN clients, giving a wireless extension for your current wired network.
Select the operation mode based on your need, then click the Save button.
If the mode is changed, the Note Dialog will appear, shown as below. Click OK.
4.5 WPS
WPS (Wi-Fi Protected Setup) can help you to quickly and securely connect to a network. This
section will guide you to add a new wireless device to an existing network quickly by function. The
WPS function is only available when the Operation Mode is set to Access Point. Select menu
“WPS”, you will see the next screen shown in Figure 4-5.
Figure 4-5 WPS
¾ WPS Status - To enable or disable the WPS function here.
17
