TL-WA730RE 150Mbps Wireless N Range Extender User Guide
4.7.5 Antenna Alignment
Selecting Wireless > Antenna Alignment will show how remote AP's signal strength changes
while changing the antenna's direction in the following screen shown in Figure 4-18.

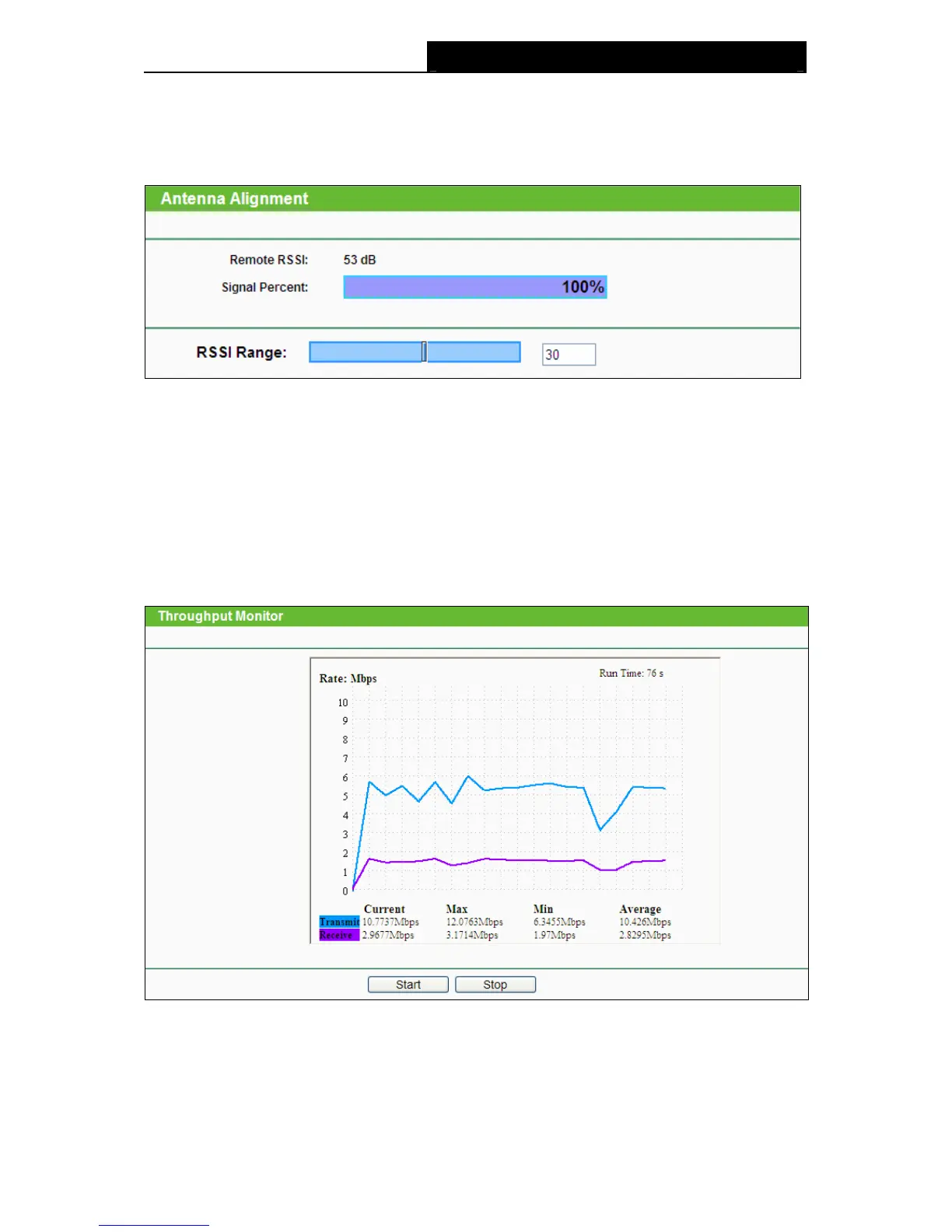

Figure 4-18 Antenna Alignment
¾ Remote RSSI - Remote AP's signal strength value.
¾ Signal Percent - The ratio of RSSI to RSSI RANGE in percentage.
¾ RSSI Range - Drag the Slider to set or input the RSSI RANGE value.
4.7.6 Throughput Monitor
Selecting Wireless > Throughput Monitor will helps to watch wireless throughput information in
the following screen shown in Figure 4-19.
Figure 4-19 Throughput Monitor
¾ Rate - The Throughput unit.
¾ Run Time - How long this function is running.
¾ Transmit - Wireless transmit rate information.
33
