18-GF16D1-1A-EN
19
Coil Conversion Instructions
Table 11. Downflow
Follow the conversion steps when installing the air handler in
downflow configuration.
1. Remove the front panels from the air handler. The coil and line set
panel do not need to be separated.
2. Remove the fasteners on both sides of the coil.

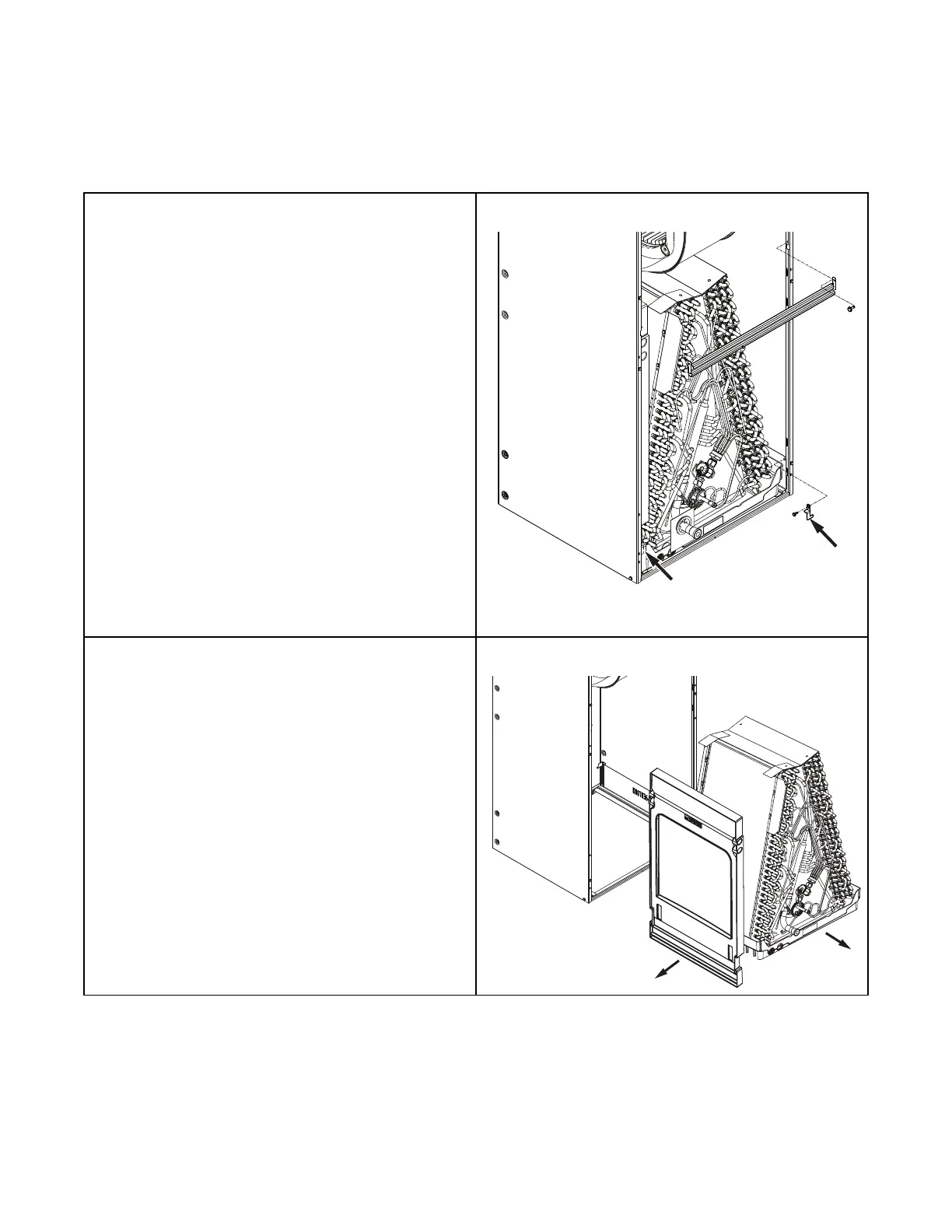

3. Remove the two screws holding the center horizontal bracket and
rotate out of place. Retain parts.
Figure 3. All models
4. Slide the coil assembly out. Remove and discard the horizontal
drain pan.
Figure 4. All models
