18-GF16D1-1A-EN
23
Coil Conversion
Table 12. Horizontal Right
Follow the conversion steps when installing the air handler in
horizontal right configuration.
1. Remove the front panels from the air handler. The coil and line set
panel do not need to be separated.
2. Remove the fasteners on both sides of the coil. Retain the coil
retaining brackets and screws.
3. Remove the two screws holding the center horizontal bracket and
rotate out of place. Retain parts.

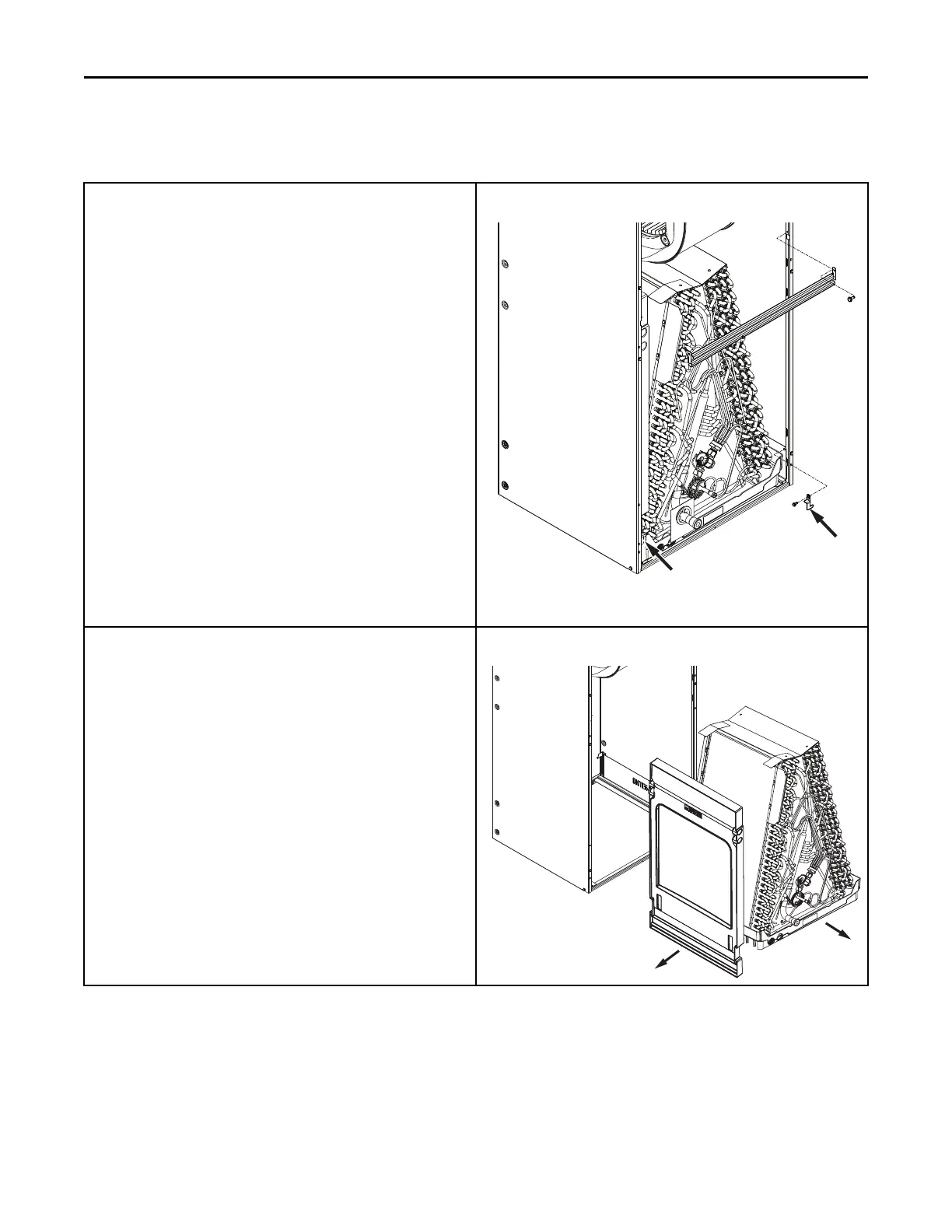

Figure 10. All models
4. Make note of the horizontal drain pan orientation (up/down).
5. Slide the coil assembly out.
Figure 11. All models
