24
18-GF15D1-1B-EN

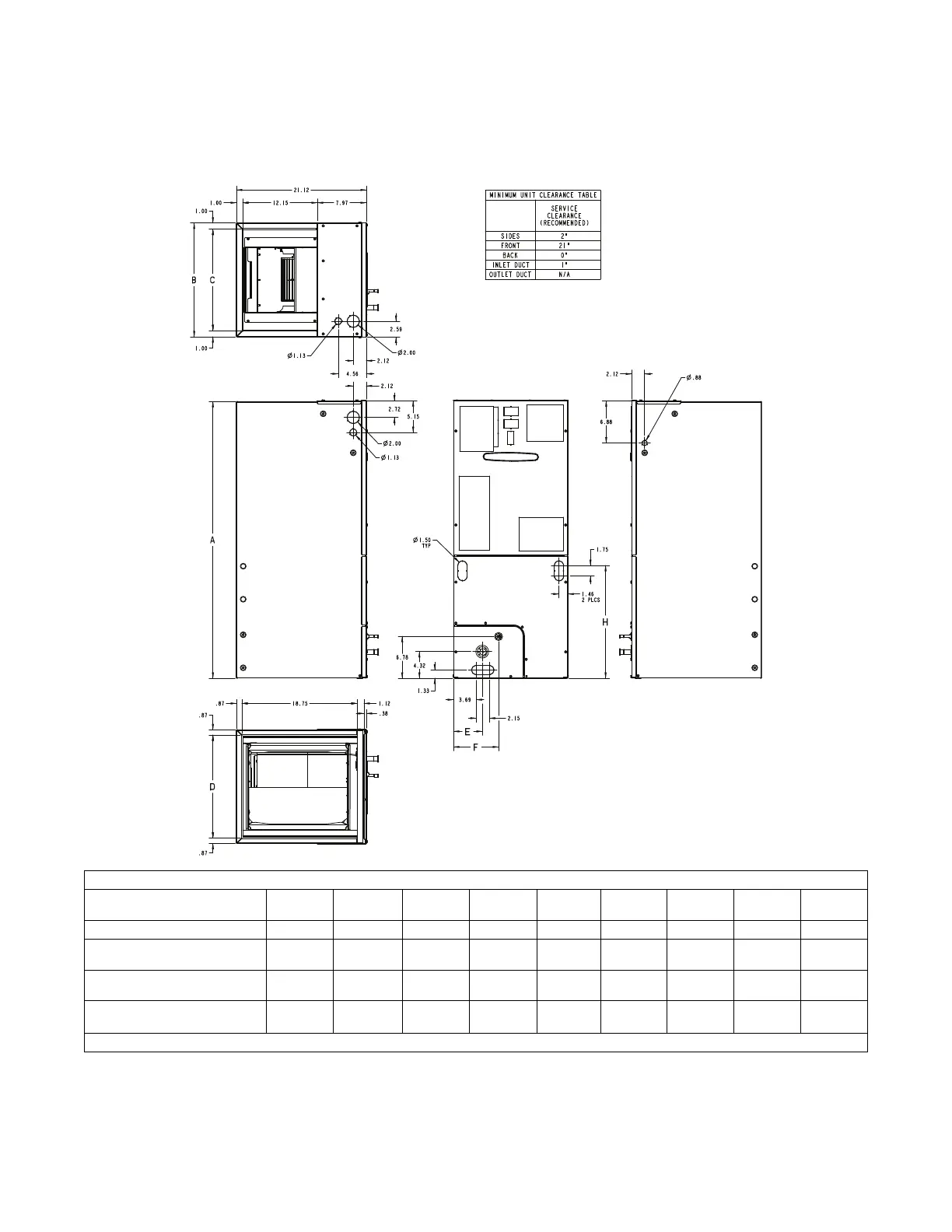

Outline Drawing
NOTE: THIS UNIT IS APPROVED FOR
INSTALLATION CLEARANCES TO
COMBUSTIBLE MATERIAL AS STATED ON
THE UNIT RATING NAMEPLATE
NOTE: ALL DIMENSIONS ARE REFERENCE
DIMENSIONS
PRODUCT DIMENSIONS
Air Handler Model A B C D E F H
Flow
Control
Gas Line
Braze
A4AH5E19 45.02 18.50 16.50 16.75 4.68 7.33 18.34 TXV
3/4
A4AH5E31, A4AH5V24,
A4AH5V30
46.77 18.50 16.50 16.75 4.68 7.33 20.09 TXV
3/4
A4AH5E43, A4AH5V36,
A4AH5V42
51.27 23.50 21.50 21.75 7.01 9.66 24.59 TXV
7/8
A4AH5E49, A4AH5E61,
A4AH5V48A1C, A4AH5V60B1C
57.40 23.50 21.50 21.75 4.68 9.66 27.19 TXV
7/8
All dimensions are in inches
