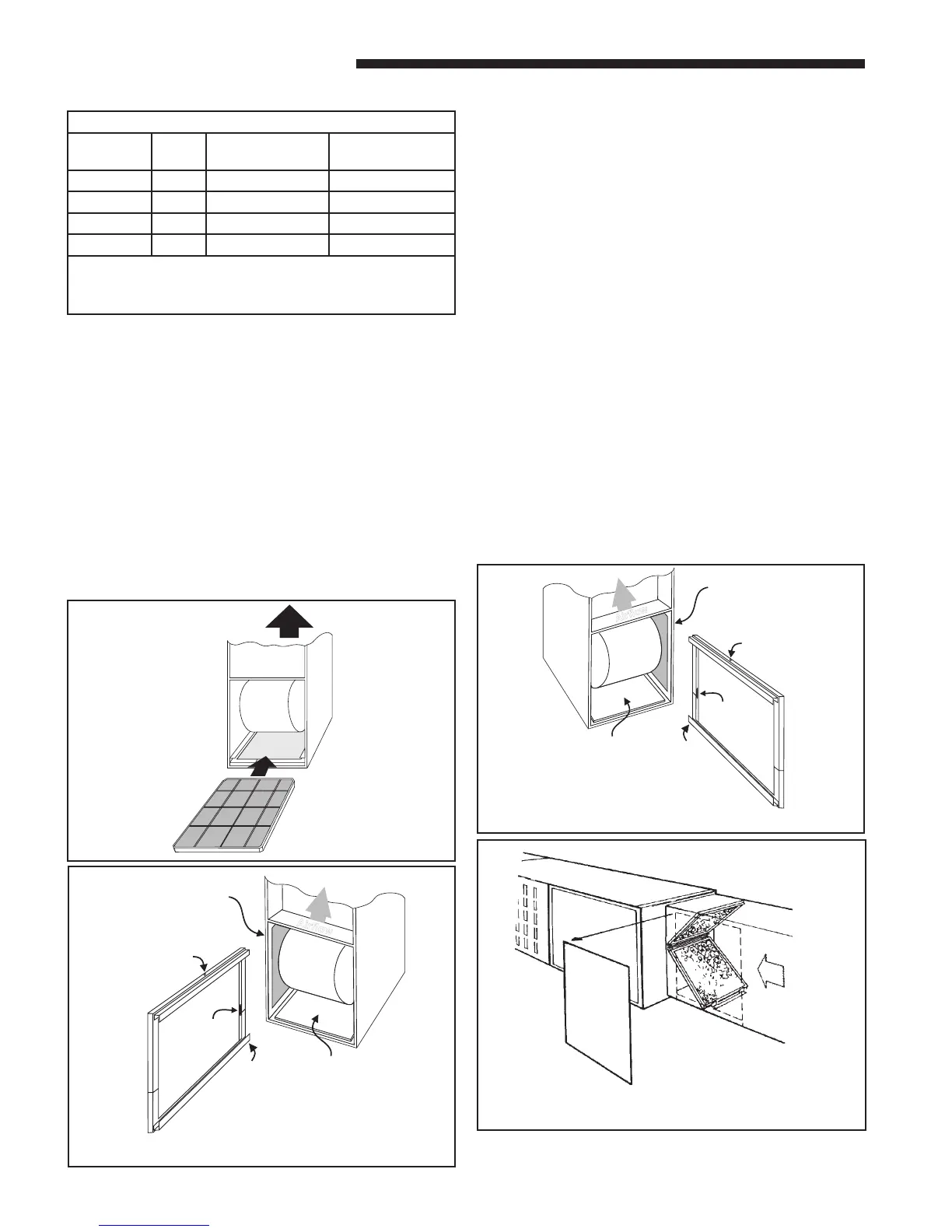

12 18-CD21D1-12
Installer’s Guide
UPFLOW FURNACE RETURN AIR FILTERS
CABINET
WIDTH
QTY*
CABINET
BOTTOM FILTER
CABINET
SIDE FILTER
14-1/2" 1 14" X 25" X 1" 17-1/2" X 25" X 1"
17-1/2" 1 17" X 25" X 1" 17-1/2" X 25" X 1"
21" 1 20" X 25" X 1" 17-1/2" X 25" X 1"
24-1/2" 1 24" X 25" X 1" 17-1/2" X 25" X 1"
**NOTE: For upflow 5 ton airflow models where the airflow
requirement exceeds 1800 CFM - Models will require return air
openings and filters on: (1) both sides, or (2) one side and the
bottom, or (3) just on the bottom
TABLE 4
ALTERNATE FILTER RACK INSTALLATION FOR BOT-
TOM RETURN - BAYRACK960
The following checklist should be used when installing
a bottom return filter on an upflow furnace:
a. Remove the filter.
b. Remove the bottom panel.
c. With the filter removed, the filter rack is com-
pressed and then inserted into the bottom of the
furnace.  The retaining screw/pin on each side 
inserts into engagement holes at the bottom of
the furnace cabinet side. See Figure 18.
d. Reinstall the furnace filter in the bottom position
by inserting the chamfer end first into the filter
rack.
ALTERNATE FILTER RACK INSTALLATION FOR SIDE
RETURN AIR ON UPFLOW FURNACES (LEFT OR RIGHT) -
BAYRACK960
The following checklist should be used when installing
a right or left side return filter on an upflow furnace:
a. Remove the filter.
b. Leave the bottom panel in place.
c. Make side cutout by following the directions in
the “Return Air Duct Connections” section on
page 10.
d. Compress the filter rack and reinstall in the side
position on the furnace. Confirm that the upper
retaining pin/screw locks into the engagement 
hole in the blower deck and the lower pin/screw 
rests against the side of the bottom panel. See
Figures 15-16, 19-20.
e. Reinstall the furnace filter in the side position
by inserting the chamfer end first into the filter
rack.
Airflow
r
Typical Upflow Left Side Return Filter Rack Installation
RETAINING
PIN
(Both Sides)
SPRINGS
SIDE
CUTOUT
FILTER
RACK
RAILS
BOTTOM
PANEL
INSTALLED
Airflow
t
RETAINING
PIN
(Both Sides)
SPRINGS
SIDE
CUTOUT
FILTER
RACK
RAILS
BOTTOM
PANEL
INSTALLED
Airflow
y
Typical Upflow Right Side Return Filter Rack Installation
Airflow
Typical Horizontal Filter Installation
u
Optional conversion kits for horizontal lters are BAY-
FLTR203 for 17 1/2"  width cabinets, BAYFLTR204 for 
21" width cabinets, and BAYFLTR205 for 24" width 
cabinets. These include filters and brackets necessary
for horizontal filters. See Figure 17.
Accessory lter kit BAY-
FLTR203, 204, 205 used
for Upflow Horizontal
furnaces.
