CVHE-SB-32A 43

Purge Module

The purge module (3U1) is provided with the Trane Purifier Purge on CVHE and CVHF chillers. It

is located in the purge control panel at the purge. It provides all inputs and outputs for the UCP2

to control purge operation.

Low Voltage (<30VAC) Inputs:

24 VAC; PC link to Chiller module

Purge refrigeration compressor suction temperature

Purge tank liquid level sensor

Service pumpout switch

High Voltage (>30VAC) Outputs:

Exhaust valve solenoid; tank valve solenoid

Purge refrigerant compressor purge pumpout compressor

Purge pumpout running (Tracer); purge alarm

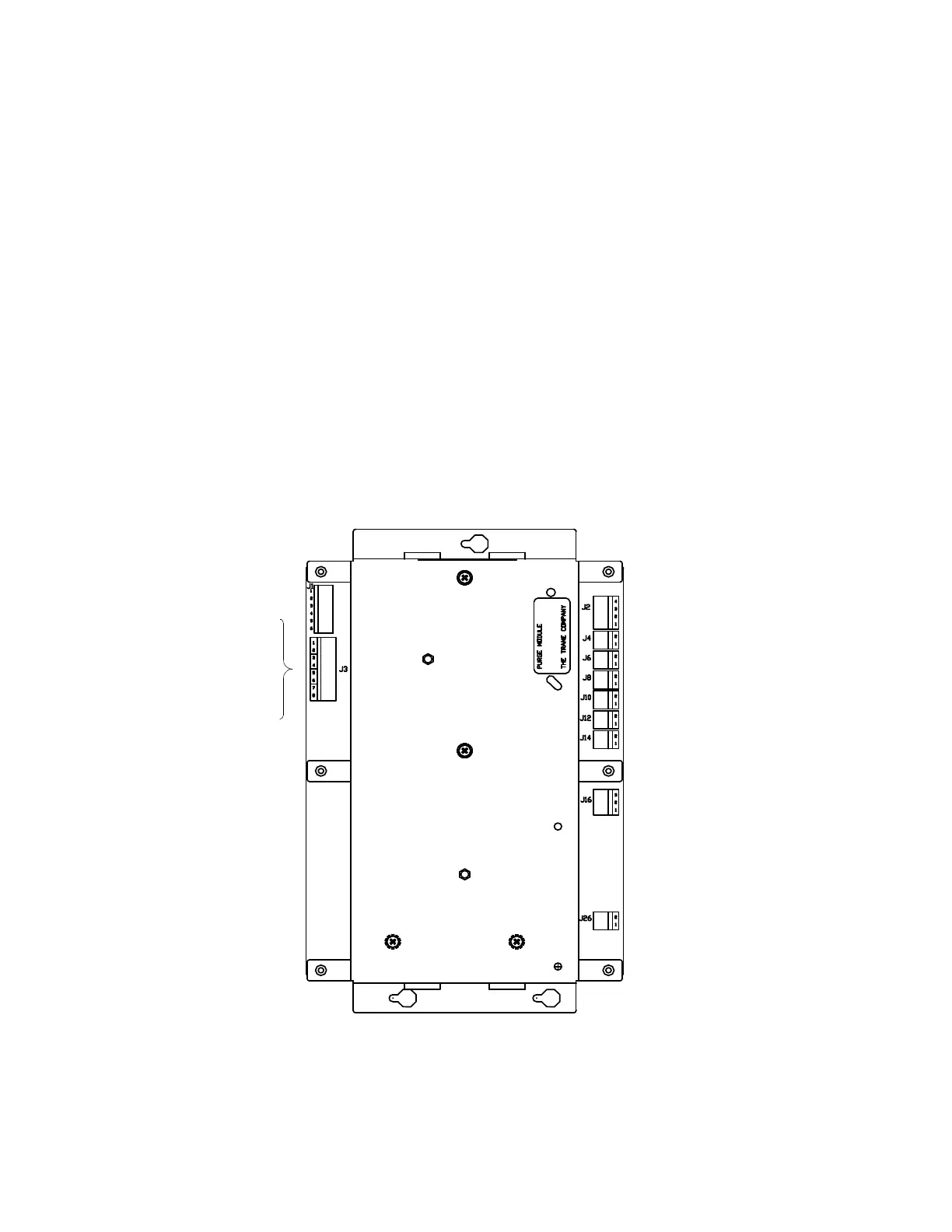

Figure 6

Purge Module

IP Communications

Chiller Saturated

Condenser Temp.

Purge Refrig. Comp.

Suction Temp.

LIquid level Sensor

Service Pumpout Switch

J10

J12

J14

J16

J26

Exhaust Valve Solenoid

Tank Valve Solenoid

Purge Refrig. Compressor

Purge Pumpout Compressor

Pumpout Running Relay

Alarm Relay

Compressor Running

24 VAC

Drain Valve
