Trane FIAECON003 Series User Manual

6 ACC-SVN232A-EN
Installation
Field Installed Option
1. Assemble connecting rods 4 to return air damper 3 by
aligning holes 1 and 2, and attach rods using two
screws as shown below.
2. Remove the filter/fan compartment access panel and
the unit end panel (evaporator end).
a. Place the return air damper assembly into the
return air opening as illustrated in Figure 4. Confirm
damper is positioned with the sheet metal lip in the
upward position.
b. Attach the pivotal brackets to the unit using two
screws per bracket.
c. Raise the damper and rods into the vertical
position. Position the connecting rods against the
filter rack to prevent them from interfering with the
economizer. See Figure 4.
d. Confirm damper is positioned with sheet metal lip
in the upward position as illustrated in following
figure.
WARNING
Hazardous Service Procedures!
Failure to follow all precautions in this manual and on
the tags, stickers, and labels could result in death or
serious injury.
Technicians, in order to protect themselves from
potential electrical, mechanical, and chemical hazards,
MUST follow precautions in this manual and on the
tags, stickers, and labels, as well as the following
instructions: Unless specified otherwise, disconnect all
electrical power including remote disconnect and
discharge all energy storing devices such as capacitors
before servicing. Follow proper lockout/tagout
procedures to ensure the power can not be
inadvertently energized.When necessary to work with
live electrical components, have a qualified licensed
electrician or other individual who has been trained in
handling live electrical components perform these
tasks.
WARNING
Hazardous Voltage w/Capacitors!
Failure to disconnect power and discharge capacitors
before servicing could result in death or serious injury.
Disconnect all electric power, including remote
disconnects and discharge all motor start/run
capacitors before servicing. Follow proper lockout/
tagout procedures to ensure the power cannot be
inadvertently energized. Verify with a CAT III or IV
voltmeter rated per NFPA 70E that all capacitors have
discharged.

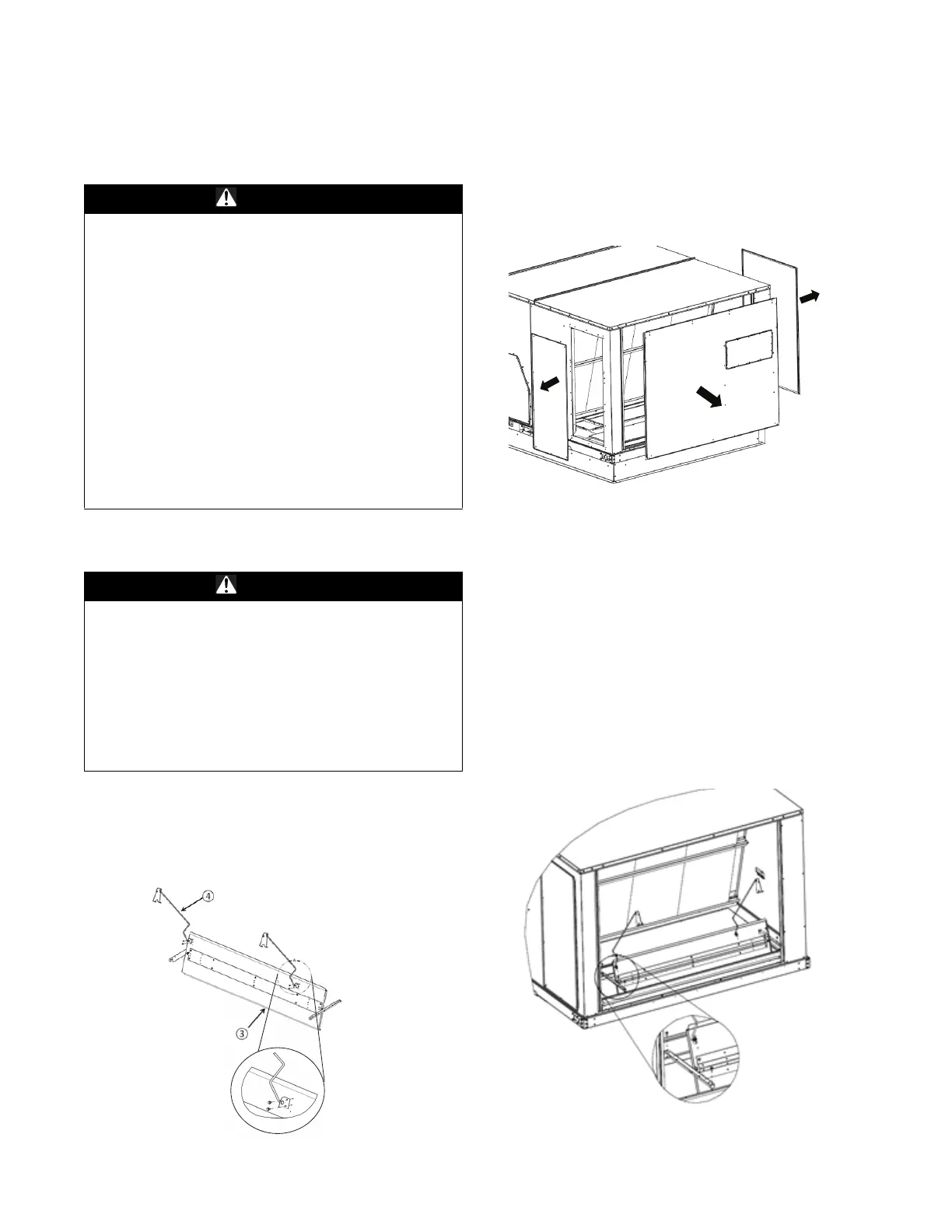

Figure 2. Assemble connecting rods
1
2
Figure 3. Remove panels
Figure 4. Install return air damper assembly
