RT
-PRC0
06-EN
92

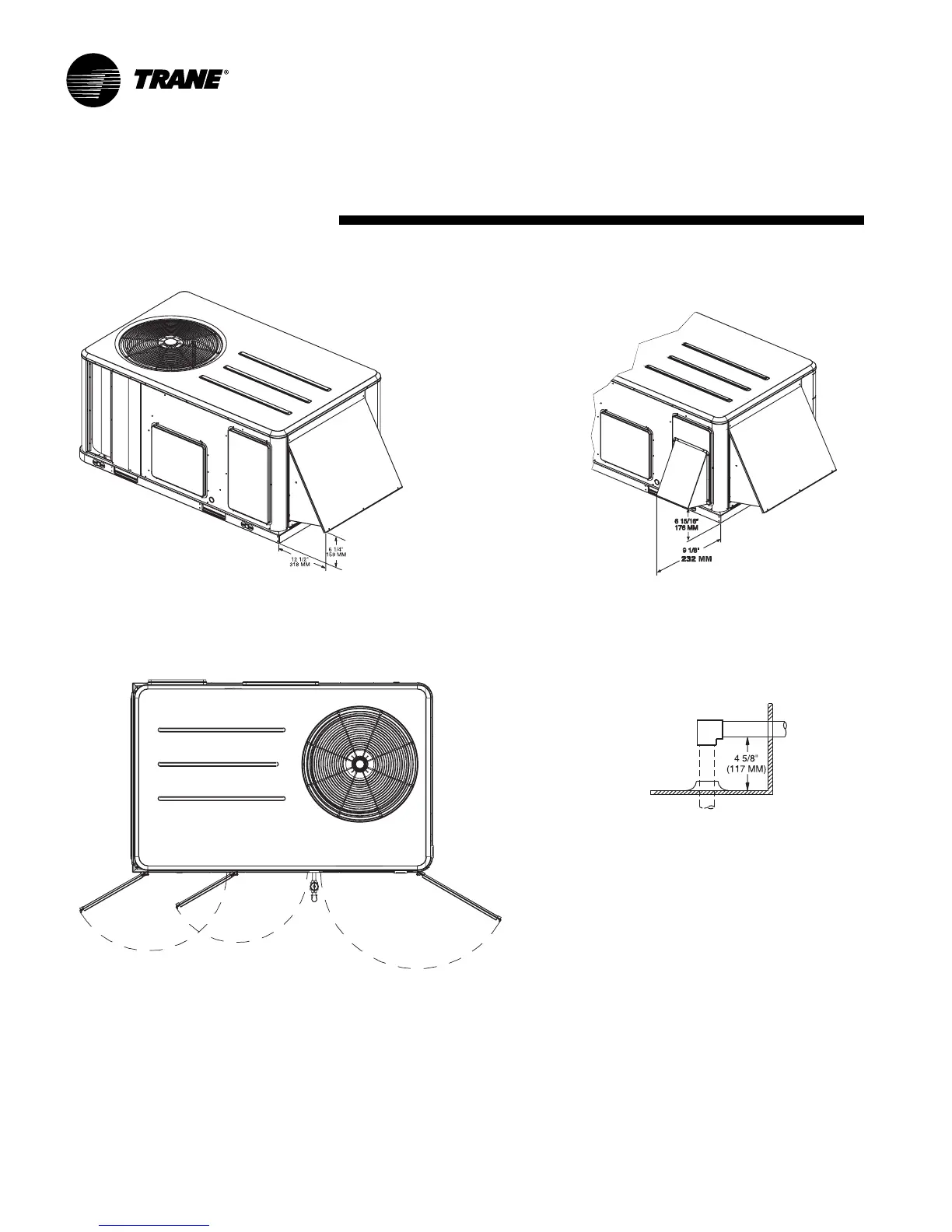

Dimensional
Data
(3 - 5
T
ons) Options/
A
ccessories
3-5
T
ons — Economizer
, Manual, or Mot
orized D
amper Hood
3-5
T
ons — Barometr
ic Relief Damper Hood
3-5
T
ons — Swing Diameter f
or Hinged Door(s) Option
3-5
T
ons — Height of Gas Pipe re
quired
from Inside Base of Unit to Gas Shut off
assembly (Factory Provided)
17 7/8"
(454 MM)
16"
(406 MM)
22 1/4"
(565 MM)
91
93
Table of Contents
Introduction
2
Packaged Rooftop Air Conditioners
2
Compressor
2
Table of Contents
3
Factory Installed Options
4
Field Installed Options
4
Factory or Field Installed Options
4
Features and Benefits
4
Electromechanical Controls
5
Reliatel Makes Testing Easy
5
Quality and Reliability
5
Easy to Install, Service and Maintain
5
Outstanding Standard and Optional Components
6
Compressors
6
Cabinet Integrity
6
Clogged Filter/Fan Failure Switch
6
Phase Monitor
7
Power Exhaust Option
7
Sloped Drain Pans
7
Progressive Tubular Heat Exchanger
7
Tool-Less Hail Guards
8
Rigorous T Esting
8
Varitrac
8
Ventilation Override Accessory
8
Easy to Install
9
Low Voltage Connections
9
Through the Base Condensate
9
Electric Heaters
9
Added Efficiency
10
Through the Base Utilities Access
10
Economizer
10
High Efficiency Motors
10
Clearance Requirements
11
Low Ambient Cooling
11
Barometric Relief
11
Application Considerations
11
Cooling Capacity
12
Heating Capacity
12
Air Delivery Selection
12
Selection Procedure
12
Dehumidification Selection
13
Compressor
14
Major Design Sequence
14
Model Number Description
14
Unit Controls
14
Unit Voltage
14
Indoor Coil - Type
15
Heating Performance
15
Cooling Performance
15
General Data
15
Standard Efficiency
16
Performance Data
28
Cooling Performance
28
Performance Data
29
Gross Cooling Capacities (MBH) 4 Ton Single Phase YSC048A1
29
Gross Cooling Capacities (MBH) 4 Ton Three Phase YSC048A3, A4, AW
29
Fan Performance
37
Standard Motor & Sheave/Fan Speed (Rpm)
73
Oversized Motor & Drive Sheave/Fan Speed (Rpm)
73
Heating Performance
75
Hot Gas Reheat Temperature Rise
76
Reliatel Controlled Units
77
Zone Sensors Are the Building
77
Manual Changeover
77
Controls
77
Electromechanically Controlled Units
78
Automatic Changeover
78
Programmable Electronic Night Setback Thermostat
78
Unit Wiring - Standard Efficiency
79
Electrical Data
79
Electric Power
79
Unit Wiring - High Efficiency
80
Electrical Characteristics — Evaporator Fan Motors — Direct Drive
81
Electrical Characteristics — Evaporator Fan Motors — Belt Drive
81
Electrical Characteristics — Inducer Motor
84
Electrical Characteristics — Power Exhaust
84
Electrical Data
84
Jobsite Connections
85
Typical Number of Wires
85
Dimension and Weights
86
Dimensional Data
92
Weights
94
Maximum Unit and Corner Weights (Lbs) and Center of Gravity Dimensions
94
Factory-Installed Options Net Weights
94
Unit Top
95
Filters
95
Gas Heating Section
95
Mechanical Specifications
95
Specifications
96
Novar Return Air Sensor
96
Hinged Access Doors
96
Dehumidification Option
96
Black Epoxy Pre-Coated Coils
96
Differential Pressure Switches
97
Frostat
97
Discharge Air Sensing
97
Oversized Motors
97
Humidity Sensor
98
Thermostat
98
Powered Exhaust
98
Remote Potentiometer
98
