RT-PRC006-EN94
Weights

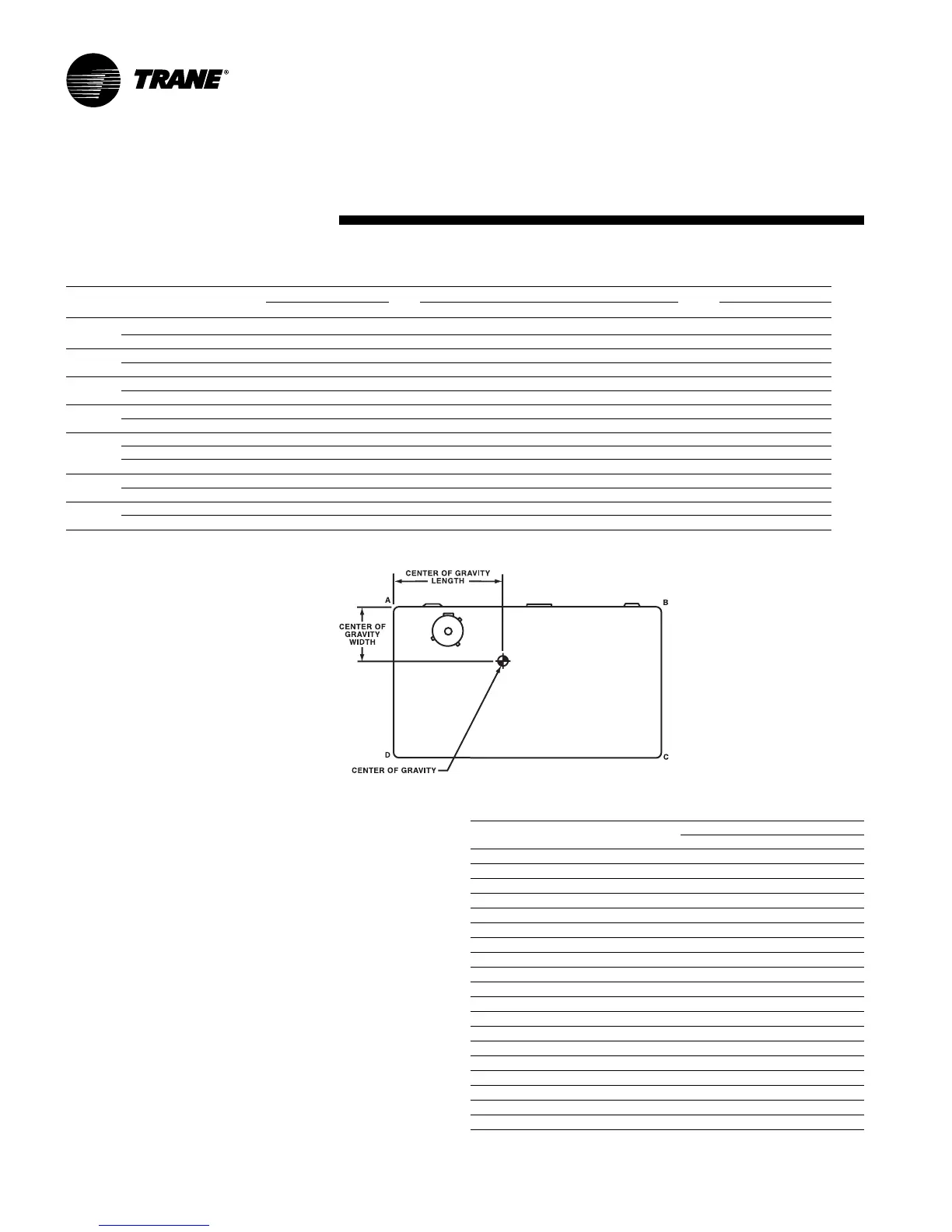

Table W-1 — Maximum Unit And Corner Weights (Lbs) And Center Of Gravity Dimensions (In.)
Unit Maximum Weights (Lbs)
2
Corner Weights (Lbs)
1
Center of Gravity (In.)
Tons Model No. Shipping Net A B C D Length Width
YSC036A 572 480 151 124 96 109 32 19
3
YHC036A 589 497 158 128 101 110 32 19
YSC048A 597 505 159 130 108 109 33 19
4
YHC048A 631 539 166 133 114 126 32 20
YSC060A 614 522 169 134 105 114 32 18
5
YHC060A 666 574 179 140 119 136 32 20
YSC072A 878 735 249 193 132 161 39 21
6
YHC072A 915 772 249 198 141 184 39 22
YSC090A 963 820 273 208 146 193 38 22
7½ YSC092A 965 822 277 222 147 175 40 21
YHC092A 1066 923 306 243 165 210 39 22
YSC102A 1042 899 297 243 165 194 40 21
8½
YHC102A 1100 957 310 252 175 220 40 22
YSC120A 1063 958 317 261 177 202 41 21
10
YHC120A 1203 1060 342 277 197 245 40 22
Notes:
1. Corner weights are given for information only.
2. Weights are approximate.
Table W-2 — Factory-installed Options Net Weights (Lbs)
1,2
Net Weight
Accessory 3-5 Tons 6-10 Tons
Economizer 26 36
Barometric Relief 7 10
Powered Exhaust — 80
Motorized Outside Air Damper 20 30
Manual Outside Air Damper 16 26
Roof Curb 70 115
Oversized Motor 5 8
Belt Drive Motor 31 —
Smoke Detector, Return 7 7
Smoke Detector, Supply 5 5
Coil Guards 12 20
Hinged Doors 10 12
Powered Convenience Outlet 38 38
Through the Base Electrical 8 13
Through the Base Gas 5 5
Unit Mounted Circuit Breaker 5 5
Unit Mounted Disconnect 5 5
Novar Control 8 8
Dehumidification (Hot Gas Reheat) Coil 15 25
Notes:
1.Weights for options not listed are < 5 lbs.
2.Net weight should be added to unit weight when ordering factory-installed accessories.
