RLC-SVX14H-GB
20

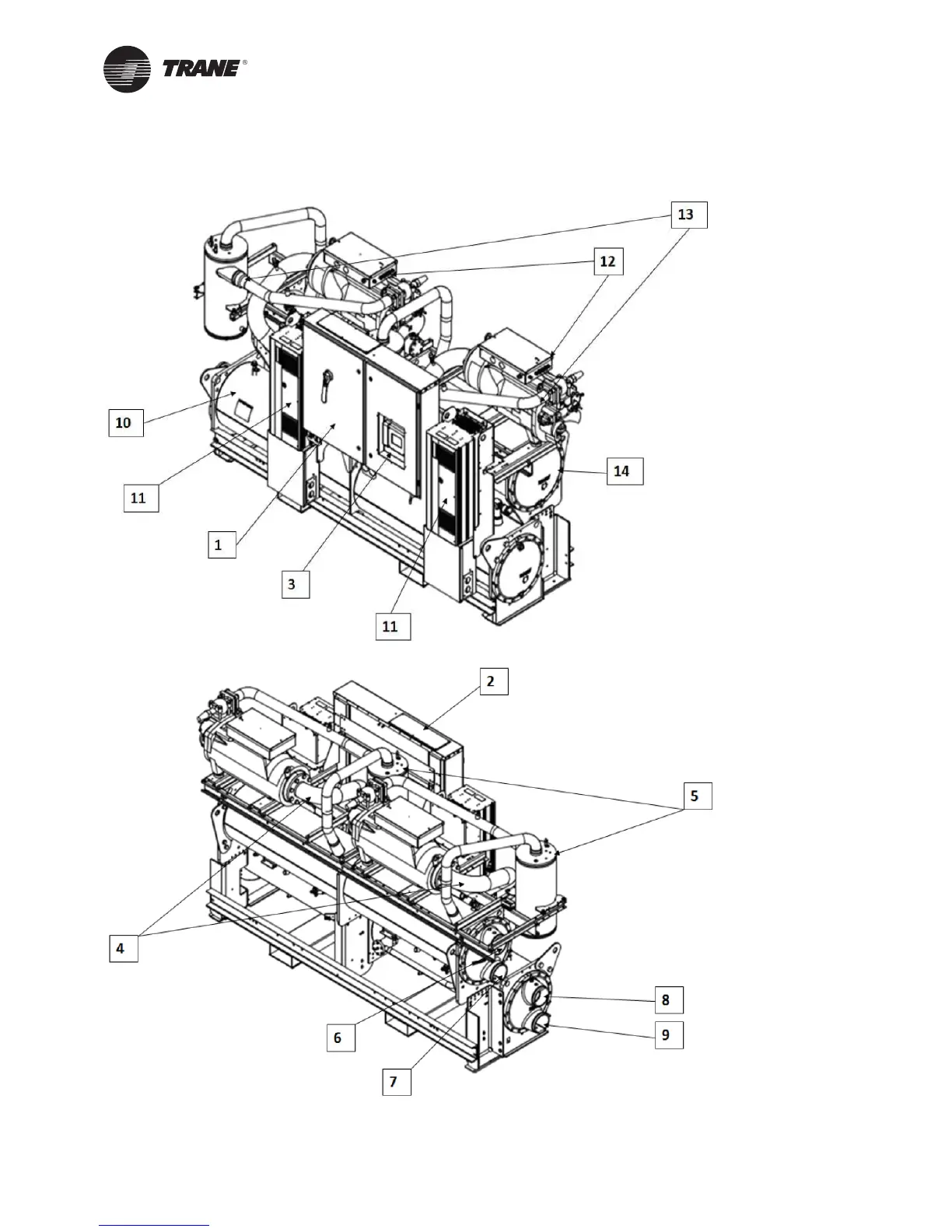

Figure 1 - Component location for Typical RTWD unit
Unit Description
1 = Control panel
2 = Power cable gland plate
for customer wiring
3 = Tracer CH530 or
DynaView
4 = Suction line
5 = Oil separator
6 = Condenser water outlet
7 = Condenser water inlet
8 = Evaporator water outlet
9 = Evaporator water inlet
10 = Evaporator
11 = Adaptive Frequency
Drive (HSE version)
12 = Compressor
13 = Discharge line
14 = Condenser
