RTWB-SVN01B-E4
16

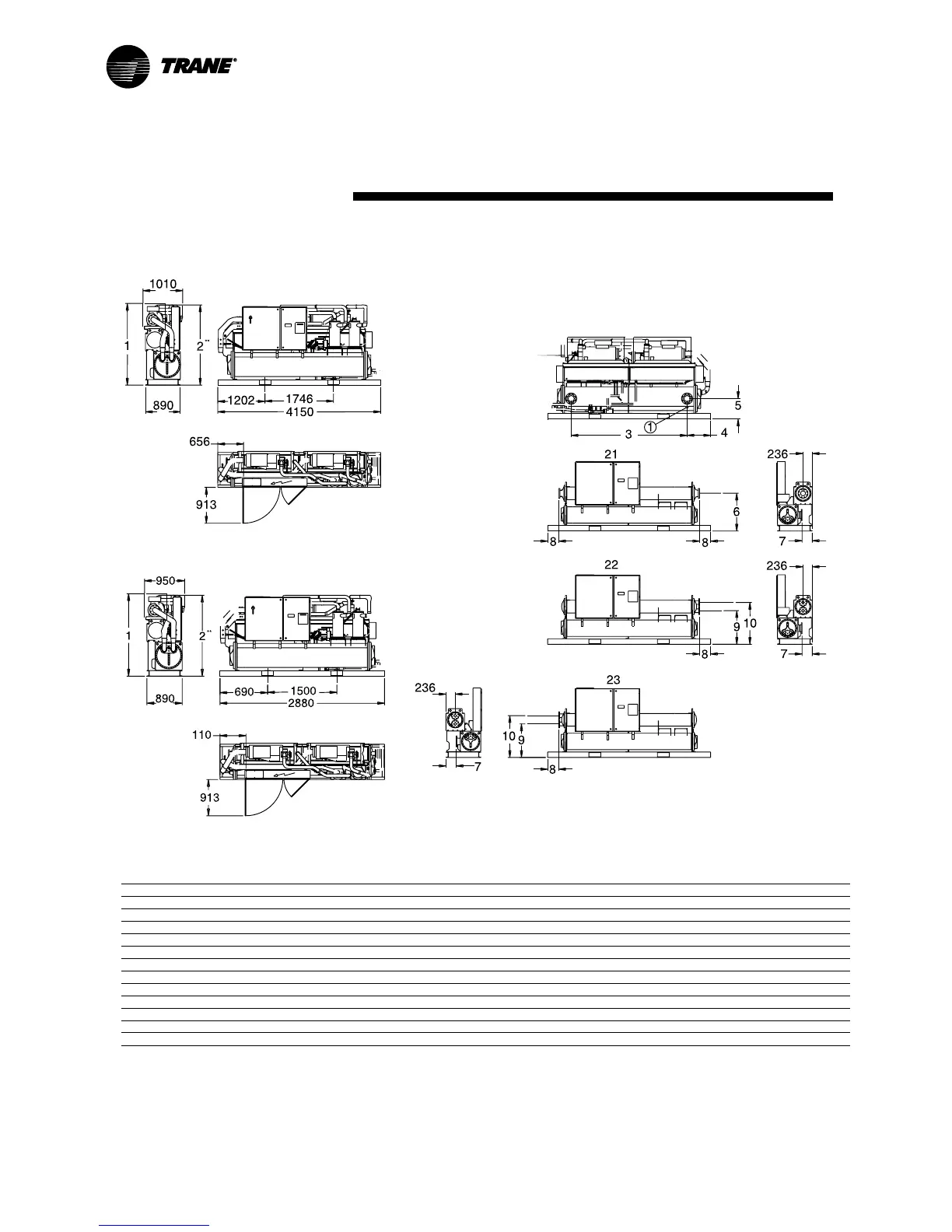

Figure 11 – Dimensions for RTWB units
Unit size 1 (mm) 2 (mm) 3 (mm) 4 (mm) 5 (mm) 6 (mm) 7 (mm) 8 (mm) 9 (mm) 10 (mm)
207 1800 1789 1792 544 384 911 318 215 806 1016
208 1800 1789 1792 544 384 911 318 215 806 1016
210 1898 1832 2844 653 408 959 258 279 854 1064
211 1898 1832 2844 653 408 959 258 279 854 1064
212 1898 1832 2844 653 408 959 258 279 854 1064
214 1898 1832 2844 653 408 959 258 279 854 1064
216 1898 1832 2844 653 408 959 258 279 854 1064
217 1898 1832 2844 653 408 959 258 279 854 1064
218 2008 1932 2952 599 498 1063 181 215 958 1168
220 2008 1932 2952 599 498 1063 181 215 958 1168
222 2097 2041 2952 599 522 1150 95 215 1045 1255
224 2097 2041 2952 599 522 1150 95 215 1045 1255
1: Evaporator drain
21: 1 pass condenser
22: condenser 2 passes right
23: condenser 2 passes left
