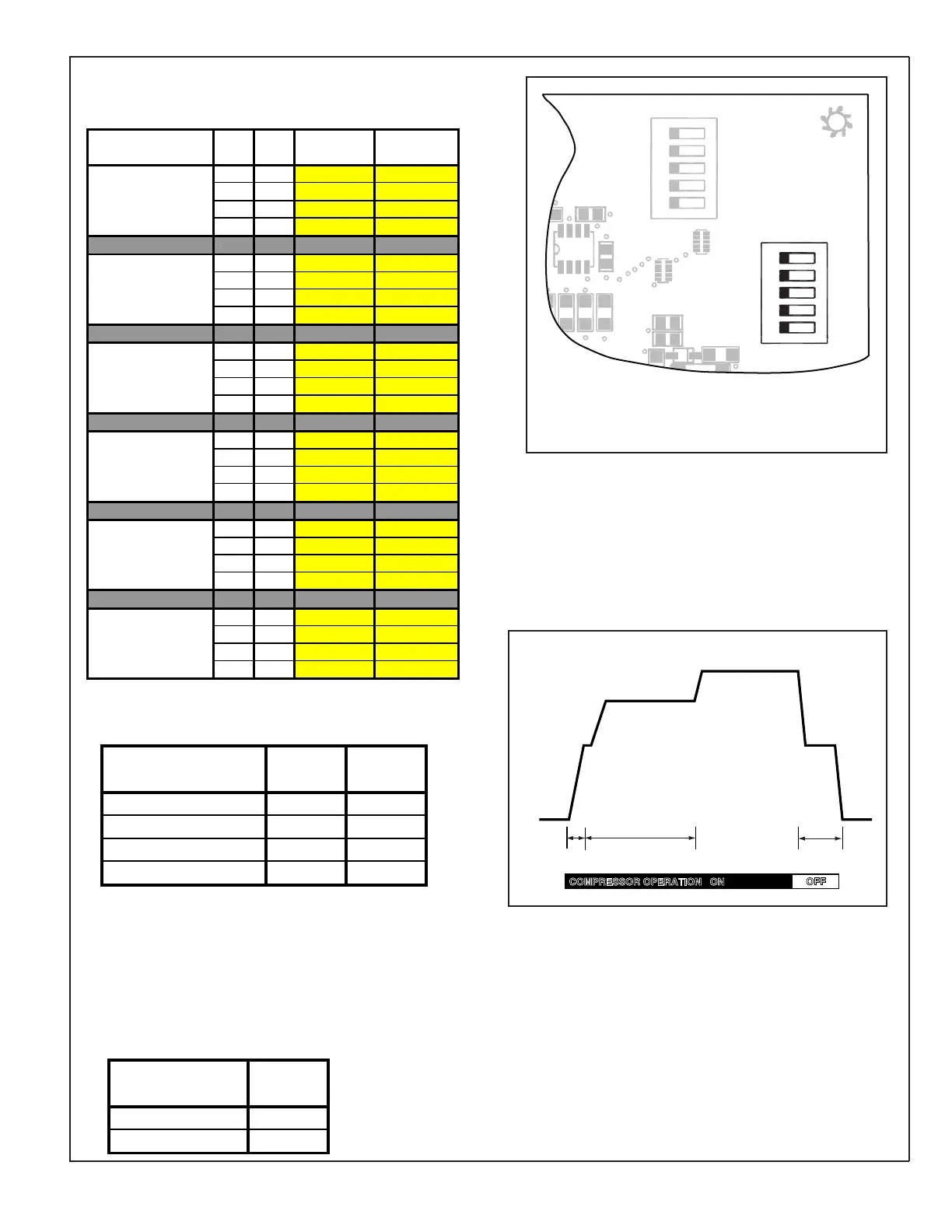

Dip Switch S2
• Set the S2-1 and S2-2 dip switches for the Cooling
and Heating CFM/Ton.
• Set the S2-3 and S2-4 dip switches for the Blower
Off Delay.
BLOWEROFFDELAY S2‐3 S2‐4
1.5m@100% OFF OFF
NODELAY OFF ON
3m@50% ON OFF
ENHANCED ON ON
AIRFLOWMODE S2‐5
*TORQUE OFF
CONSTANTCFM ON
• Set the S2-5 dip switch for the airflow mode.
Indoor Blower Timing
This ENHANCED MODE selection provides a ramping
up and ramping down of the blower speed to provide im-
proved comfort, quietness, and potential energy savings.
The graph on the right shows the ramping process.
Enhanced Mode works in cooling, HP, heating, Torque,
and constant CFM modes.
OFF OFF
50%
80%
100% if necessary
50%
Dehumidify
Fast Coil Cooling
Efficiency
7.5
minutes
3
minutes
1
minute
FAN OPERATION (CFM)
COMPRESSOR OPERATION ON
OFF
as required
S2
1
1
12345
12345
HP
2(Compressor)
2(Stages)
AC (System)
}
OUTDOOR
Capacity (Tons)
OUTDOOR
}
Torque
CFM/Ton
Cool OffDelay
}
INDOOR
CFM
+12V
R13
R14
R1
R4
1
U1
RNET 1
S1
on
on
S2
RNET 2
R
6
C22
C19
C
15
C
12
C18
C21
C10
D9
L1
R22
Airflow Control (AFC)
* Torque mode is optional and is recommended for high static
applications. High static conditions dramatically increase energy
consumption with variable speed motors. Evaluate the blower
performance table in relationship to the duct system to determine
the benefit of each installation.
*Forthe2tonairhandler,torquemodewillreduceairowwhen
static is above approximately 0.3" water column.
* For the 2-1/2, 3, and 3-1/2 ton air handlers, torque mode will
reduceairowwhenstaticisaboveapproximately0.35”water
column.
*Forthe4and5tonairhandlers,torquemodewillreduceairow
when static is above approximately 0.4” water column.
When selected, Torque Mode is used for cooling operation only.
All heating modes default to constant CFM.
INDOORMODEL S2‐1 S2‐2
COOLING
CFM/TON
HEATING
CFM/TON
OFF OFF 400 430
OFF ON 360 390
ON OFF 380 410
ON ON 420 450
OFF OFF 400 430
OFF ON 360 390
ON OFF 380 410
ON ON 420 450
OFF OFF 370 420
OFF ON 350 400
ON OFF 390 440
ON ON 410 450
OFF OFF 370 400
OFF ON 330 360
ON OFF 350 380
ON ON 390 420
OFF OFF 350 400
OFF ON 330 380
ON OFF 370 420
ON ON 390 440
OFF OFF 370 400
OFF ON 380 410
ON OFF 390 420
ON ON 400 430
*Maybe"A"or"T"
*AM7A0C60H51SA
*AM7A0A24H21SA
*AM7A0B30H21SA
*AM7A0C36H31SA
*AM7A0C42H31SA
*AM7A0C48H41SA
