BAS-SVX36C-EN 11
Installation
This section provides installation instructions.
Before you begin, read through the pre-installation information, beginning on p. 9, and also verify
the following conditions are met:
• A wire access hole is available at the thermostat location.
• The wires are accessible through the hole.
• The wires are attached to the appropriate terminals on the HVAC equipment.
• There is continuity (and not more than 2.5 ohms resistance) between the thermostat location
and
the HVAC equipment.
• The wires are accurately labeled or identified by color.
Mounting the Back Plate
WARNING
Hazardous voltage!
Disconnect all electric power, including remote disconnects before servicing. Follow proper
lockout/tagout procedures to ensure the power cannot be inadvertently energized. Failure to
disconnect power before servicing could result in death or serious injury.
NOTICE
Equipment damage!
Applying excessive voltage to the thermostat will permanently damage it.
To mount the back plate:
1. Shut off power to the HVAC equipment.
Note: If
the security screw is installed, remove it before attempting to remove the cover.
See Figure 3.

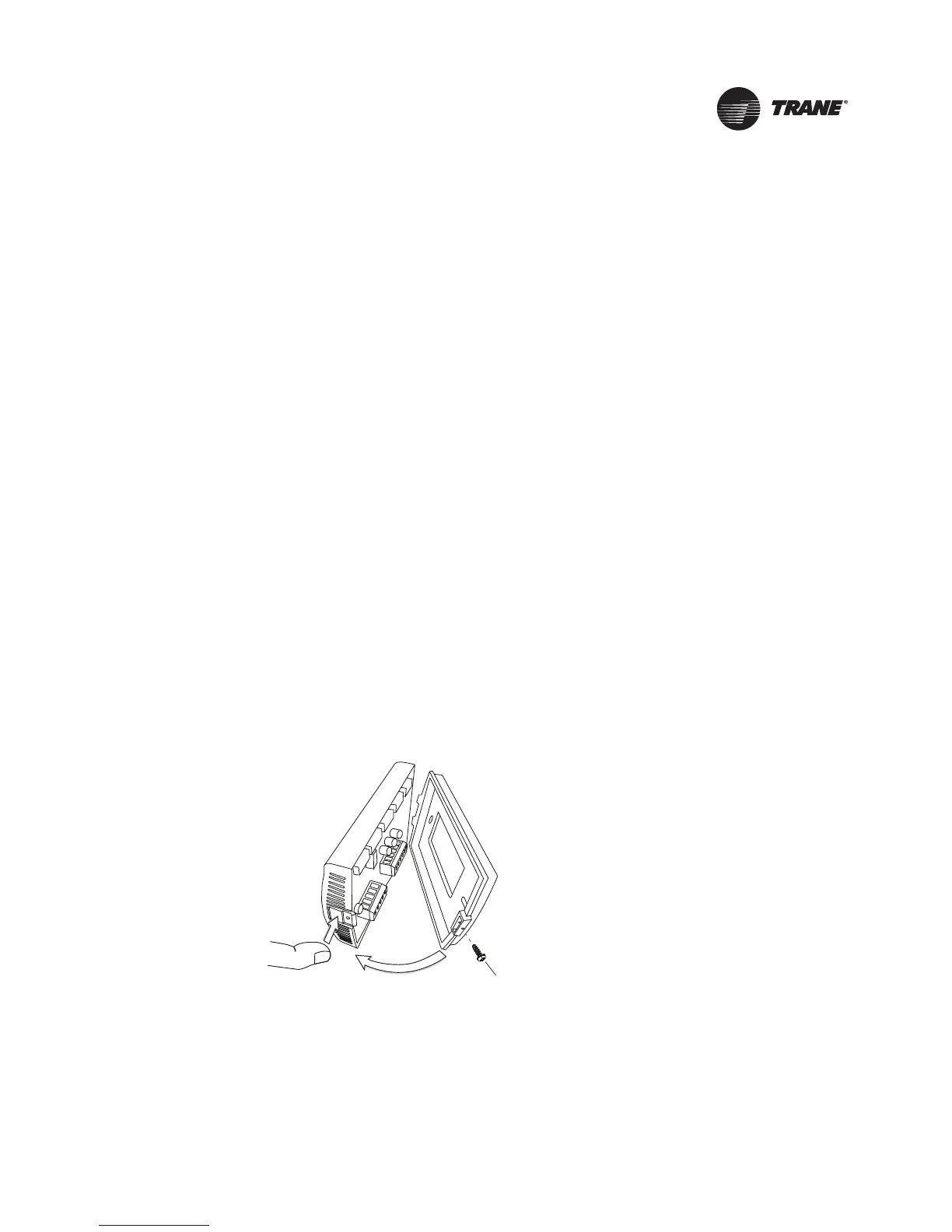

Figure 3.
Security screw
Security Screw Location (if used)
2. Remove the cover by firmly pressing the thumb tab at the bottom of the cover and pulling the
co
ver away from the back plate.
3. Feed the wires through the opening in the back plate.
