26 BAS-SVX36C-EN
Configuration
NOTICE
Adv erse Control System Behavior!
Improper configuration could cause unwanted, possibly adverse control system behavior. Be
sure to configure the thermostat according to your system type.
To change the installation configuration:
1. Apply electrical power to the thermostat.
2. See the appropriate table for your thermostat type to determine the configuration options you
need:
• T
able 6, p. 27 for 3-Heat/2-Cool programmable thermostats
• Table 7, p. 31 for 3-Heat/2-Cool non-programmable thermostats
• Table 8, p. 32 for 1-Heat/1-Cool, non-programmable thermostats
3. Write down your selections or other notes on the table.
4. Enter installer configuration mode:
WARNING
Live Electrical Components!
The circuit board is energized. Have a qualified licensed electrician or other individual who has
been properly trained in handling live electrical components perform this step. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death
or serious injury.
a. Remove the thermostat cover.
b. Press and hold the configuration button for at least 3 sec.

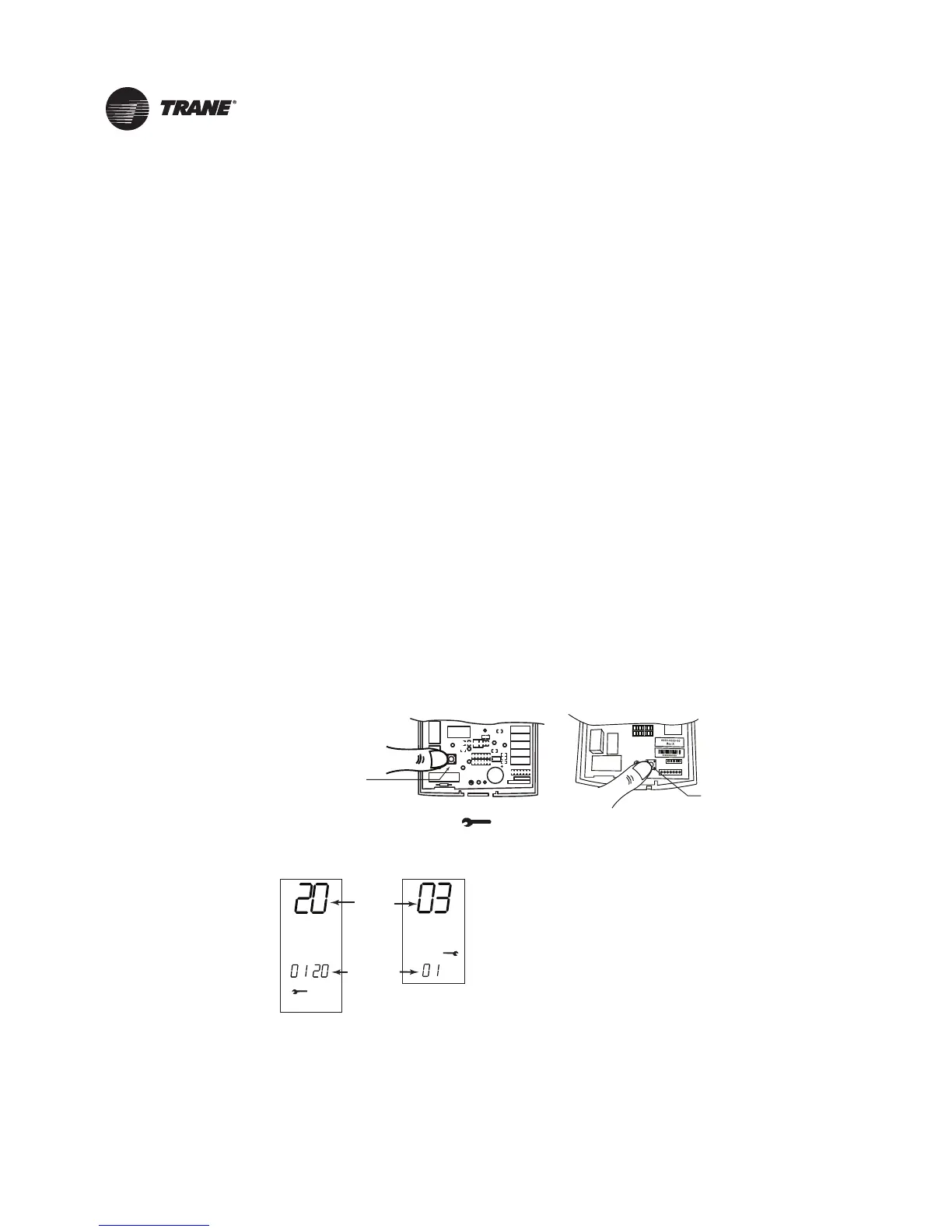

Figure 34. Pressing the Configuration Button
Thermostat Non-Prog XH/XC
X########-## Rev X
BAYSTAT15#X
####XXX
Programmable 3H/
2C configuration
button
Non-programmable
thermostats
configuration button
The configuration wrench icon appears, along with the option number and value:
Figure 35. Configuration Mode
Value
Programmable
Thermostat
Non-Programmable
Thermostat
Option
Number
Note: Configuration mode automatically ends if no buttons are pressed for 10 min.
