Trane UC SERIES User Manual

4 18-CD19D5-10 Installer’s Guide
MODEL A B C D
*UC040C924
*UC060C936
*UC080C942
17-1/2" 2-1/4" 16-1/4" 16"
*UC100C948 21" 2-1/2" 19-3/4" 19-1/2"
*UC100C960
*UC120C960
24-1/2" 2-15/16" 23-1/4" 23"
* - First letter may be "A" or "T"
From Dwg. 21C340386 Rev. 7

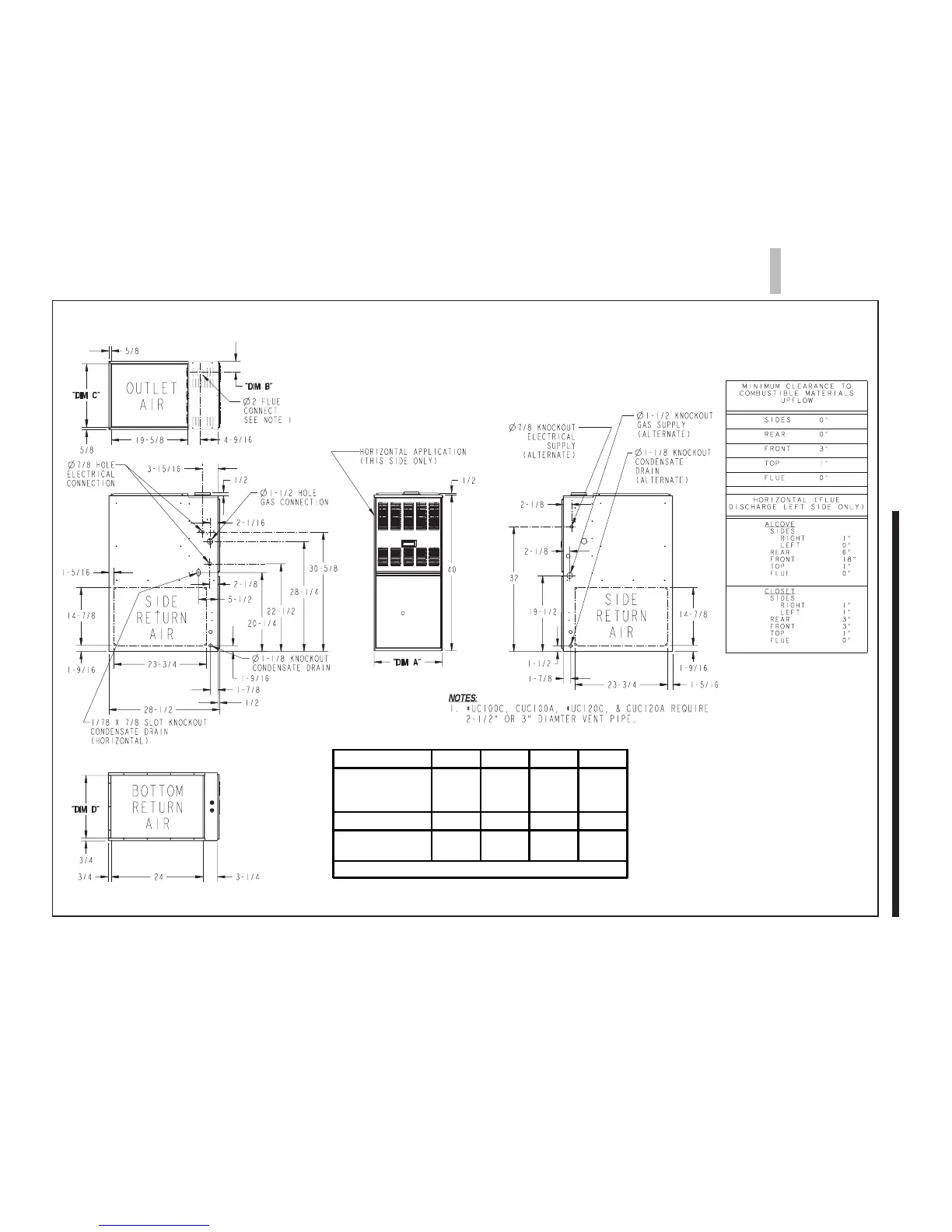

*UC-C OUTLINE DRAWING
(ALL DIMENSIONS ARE IN INCHES)

Trane UC SERIES Specifications

General

Brand	Trane
Model	UC SERIES
Category	Furnace
Language	English
