WC-IOM-7 • Packaged Heat Pump 19
Unit Dimensions
WARNING
Heavy Objects!
Do not use cables (chains or slings) except as shown. Each of the cables (chains
or slings) used to lift the unit must be capable of supporting the entire weight of
the unit. Lifting cables (chains or slings) may not be of the same length. Adjust
as necessary for even unit lift. Other lifting arrangements may cause equipment
or property-only damage. Failure to properly lift unit may result in death or
serious injury. See details below.
WARNING
Improper Unit Lift!
Test lift unit approximately 24 inches to verify proper center of gravity lift point.
To avoid dropping of unit, reposition lifting point if unit is not level. Failure to
properly lift unit could result in death or serious injury or possible equipment or
property-only damage.
Table 1. Typical weights and point loading data
Corner Weights (lbs.)
Center of
Gravity (in.)
Unit
Description
Net
Weight
A B C D Length Width
WC*150B 1375 465 344 231 311 46 29
WC*155B 1412 547 638 231 343 43 27
WC*180B 1412 547 638 231 343 43 27
WC*200B 1916 640 497 340 438 51 34
WC*240B 1916 640 497 340 438 51 34
Note: Corner weights are given for information only. Unit is to be supported continuously by
a curb or equivalient frame support.

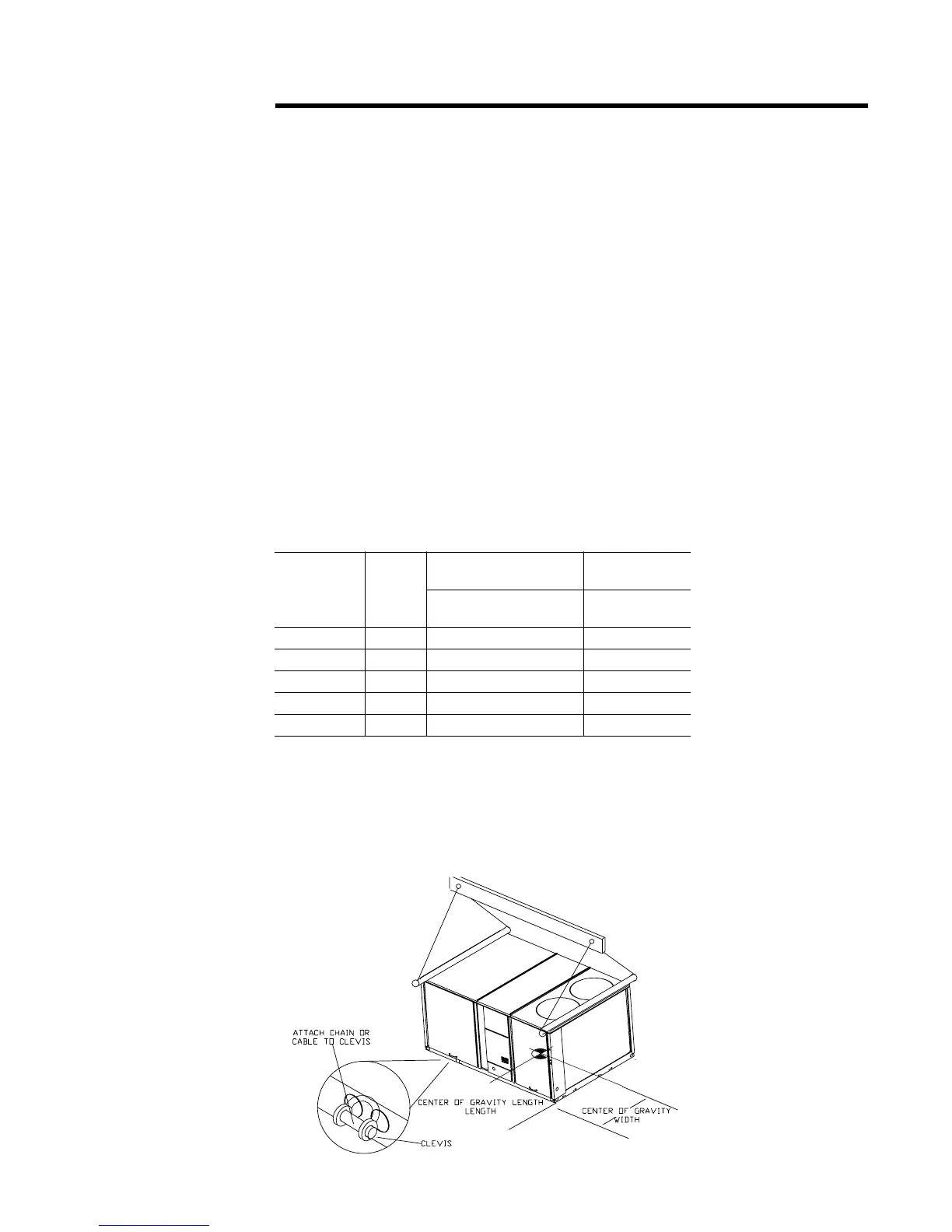

Figure 8. Rigging and center of gravity data
