1. O i l f i l t e r
• Unscrew and remove the oil filter
using the Triumph service tool
T3880313.
• Discard the oil filter.
• Pre-fill the replacement oil filter with
new engine oil.
• Apply a smear of clean engine oil to
the sealing ring of the new oil filter.
Fit the oil filter and tighten to
10 N m .
• After the oil has completely drained
out, fit a new sealing washer to the
drain plug. Fit and tighten the plug
to 25 Nm.
• Remove the oil filler plug. Fill the
engine with new oil of the type and
grade listed in the Specification
section, until oil begins to show in
the sight glass. Do not overfill or
exceed the capacities given in the
Specification section.
• Start the engine and allow it to idle
for a minimum of 30 seconds.
• Ensure that the oil pressure warning
light extinguishes shortly after
starting.
Warning
The oil may be hot to the touch. Avoid
contact with the hot oil by wearing suitable
protective clothing, gloves, eye protection
etc. Contact with hot oil may cause the skin
to be scalded or burned.

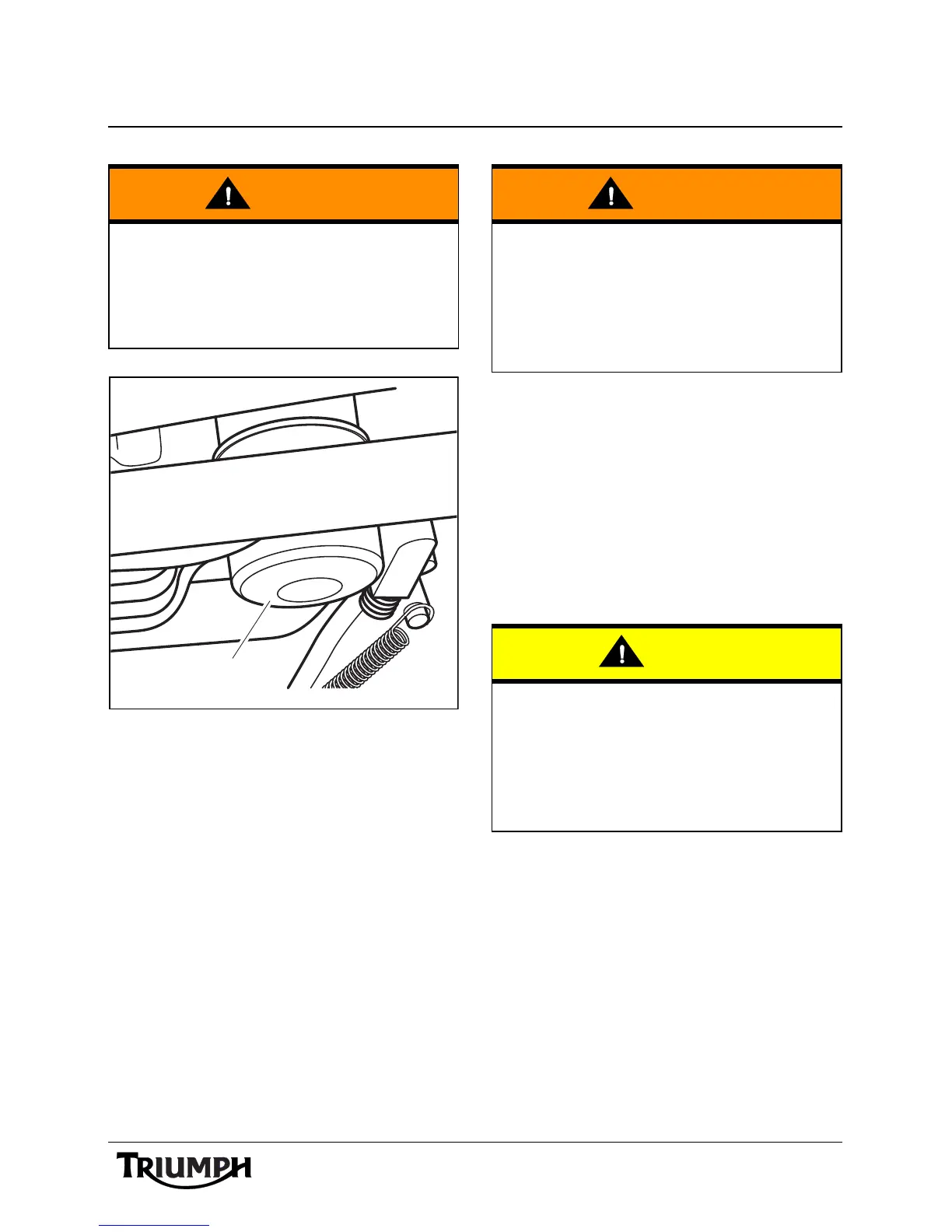

T908029
1
Warning
If the engine has recently been running,
the exhaust system will be hot. Before
working on or near the exhaust system,
allow sufficient time for the exhaust system
to cool as touching any part of a hot
exhaust system could cause burn injuries.
Caution
Raising the engine speed above idle,
before the oil reaches all parts of the
engine can cause engine damage or
seizure. Only raise engine speed after
running the engine for 30 seconds to allow
the oil to circulate fully.

Triumph America Specifications

General

Engine Type	Air-cooled, DOHC, parallel-twin, 270º firing interval
Displacement	865cc
Compression Ratio	9.2:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	5-speed
Frame	Tubular steel cradle
Front Suspension	41mm forks
Front Tire	110/80 R18
Max Power	61 hp @ 7, 400 rpm
Max Torque	72 Nm @ 3, 300 rpm
Exhaust	Chromed
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310mm disc, 2-piston caliper
Rear Wheel	Wire-spoked, 15 x 3.5in
Seat Height	720mm
Rear Brakes	Single 285mm disc, 2 piston caliper
Rear Tire	170/80 R15
