Triumph America User Manual

85
Maintenance and Adjustment

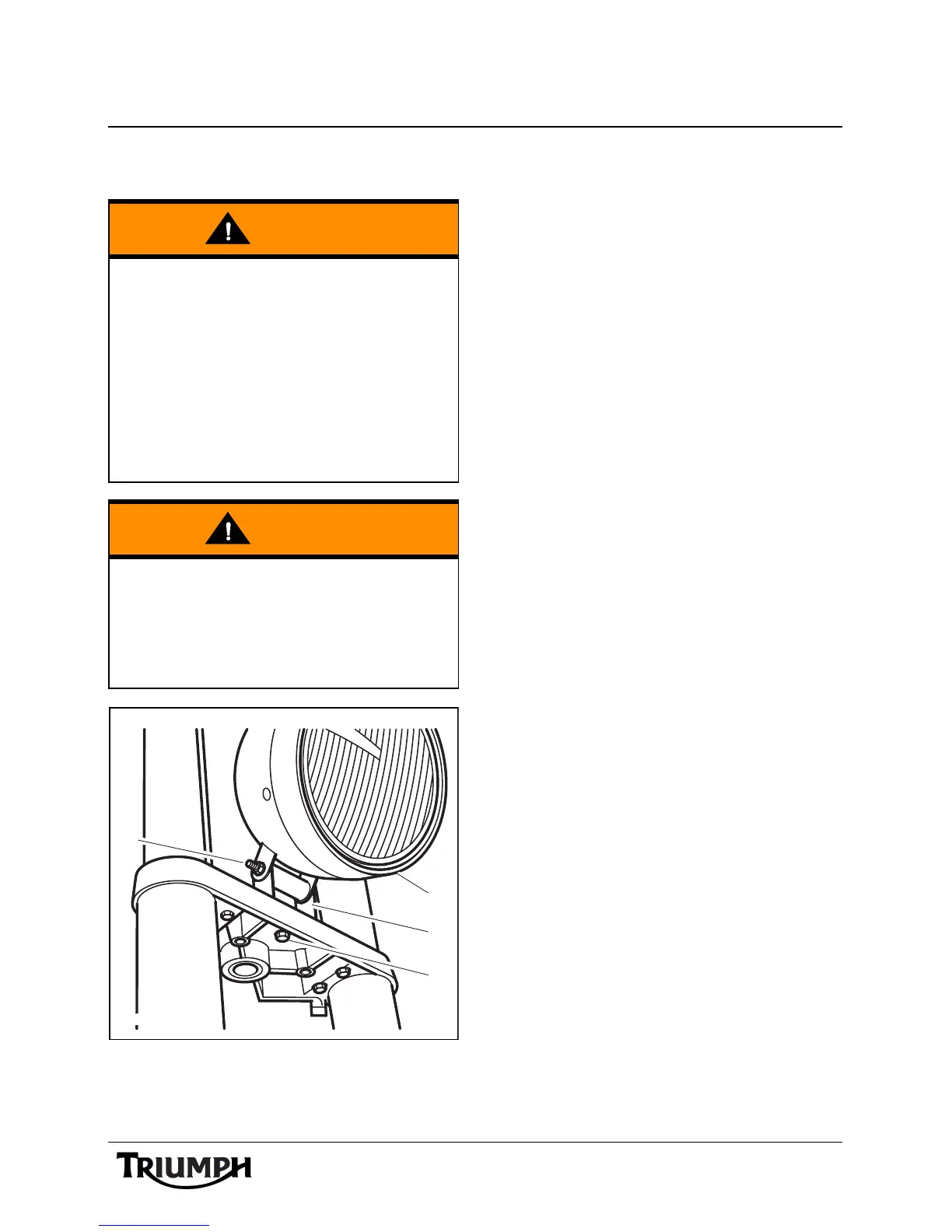

Headlight
1. Headlight
2. Headlight bracket
3. Pinch-bolt (vertical setting)
4. Bracket fixing (horizontal setting)
Headlight Adjustment
• Horizontal adjustment of the
headlight beam is controlled by the
position of the bracket on which the
headlight is mounted. To adjust the
horizontal position of the headlight,
slacken the bracket retaining bolt
and turn the headlight assembly left
or right. When set to the correct
position, tighten the bracket fixing to
27 Nm.
• Vertical adjustment of the headlight
is controlled by the position of the
headlight bowl in relation to the
bracket on which it is mounted. To
adjust the vertical setting, slacken the
headlight bowl pinch-bolt and move
the headlight assembly up or down.
When set to the correct position,
tighten the bracket pinch-bolt to
27 Nm.
Warning
Adjust road speed to suit the visibility and
weather conditions in which the motorcycle
is being operated.
Ensure that the beam is adjusted to
illuminate the road surface sufficiently far
ahead, but without dazzling oncoming
traffic. An incorrectly adjusted headlight
may impair visibility causing loss of
motorcycle control and an accident.
Warning
Never attempt to adjust the headlight
beam when the motorcycle is in motion.
Any attempt to adjust the headlight beam
when the motorcycle is in motion may
result in loss of control and an accident.
T908047USA
1
2
4
3

Triumph America Specifications

General

Engine Type	Air-cooled, DOHC, parallel-twin, 270º firing interval
Displacement	865cc
Compression Ratio	9.2:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	5-speed
Frame	Tubular steel cradle
Front Suspension	41mm forks
Front Tire	110/80 R18
Max Power	61 hp @ 7, 400 rpm
Max Torque	72 Nm @ 3, 300 rpm
Exhaust	Chromed
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310mm disc, 2-piston caliper
Rear Wheel	Wire-spoked, 15 x 3.5in
Seat Height	720mm
Rear Brakes	Single 285mm disc, 2 piston caliper
Rear Tire	170/80 R15
