Maintenance and Adjustment
Fuse Replacement
If a fuse fails during operation, inspect the
electrical system to determine the cause, and
then replace it with a new fuse of the same
(correct) current rating.
Fuse Identification
The fuses can be identified by a number
moulded into the fusebox housing, adjacent
to each fuse, as shown below. These numbers
correspond to the numbers given in the table
overleaf. Fuses without an identification
number are spare, and should be replaced if
used.

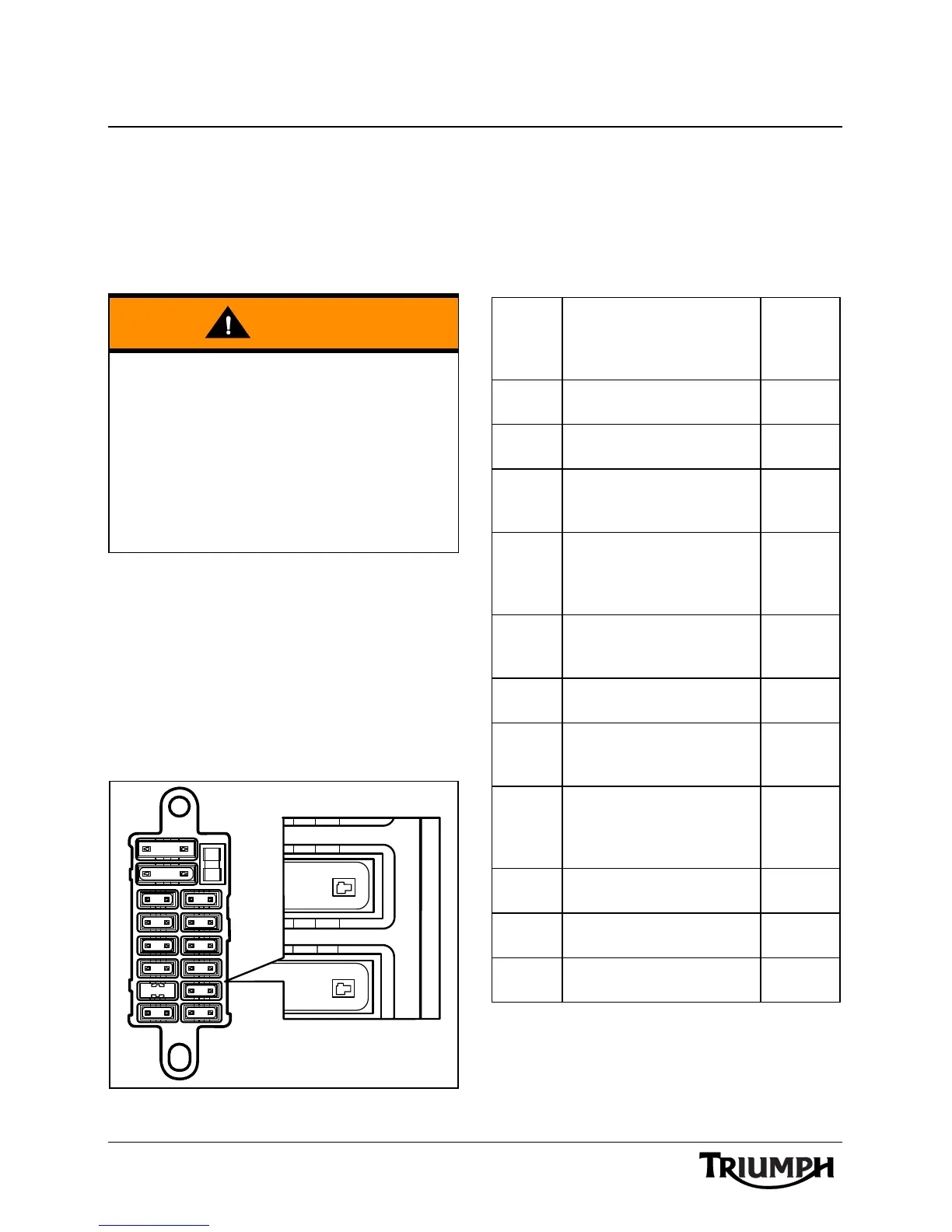

Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the table below to establish which fuse
has blown.
Note:
• Only 30, 20 and 10 amp. spare
fuses are provided in the fuse box.
A spare 5 amp. fuse must also be
carried on the motorcycle.
Warning
Always replace blown fuses with new ones
of the correct current rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrectly rated fuse could lead
to an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
30
30
520
10
10
10
15
10
10
5
10
1
23
4
5
6
7
8
910
11
10
30
1
2
10
Fuse
No
Circuits Protected Fuse
Rating
(Amp.)
1 Accessory Lights 10
2 Alarm, GPS 10
3 Accessory Socket,
Diagnostic Connector
10
4 Ignition Switch Main
Feed, Instrumentation
Illumination
10
5 Engine Management
System
20
6 Not Used -
7 Direction Indicators,
Brake Light, Horn
10
8 Position Light,
Instrumentation
Illumination
5
9 Dip/Main Beam 10
10 Position Lights 5
11 Main Battery Fuse 30
