Maintenance and Adjustment
• Also remove the sprocket cover and
inspect the sprockets for unevenly or
excessively worn or damaged teeth.
• If there is any irregularity, have the
drive chain and sprockets replaced
by an authorised Triumph dealer.
• Refit the chain guard and sprocket
cover.
Warning
The use of non-approved chains may result
in a broken chain or may cause the chain
to jump off the sprockets. Either condition
could lock the rear wheel, severely
damaging the motorcycle and causing loss
of control and an accident.
For safety, use a genuine Triumph supplied
chain as specified in the Triumph parts
catalogue.
Never neglect chain maintenance and
always have chains installed by an
authorised Triumph dealer.

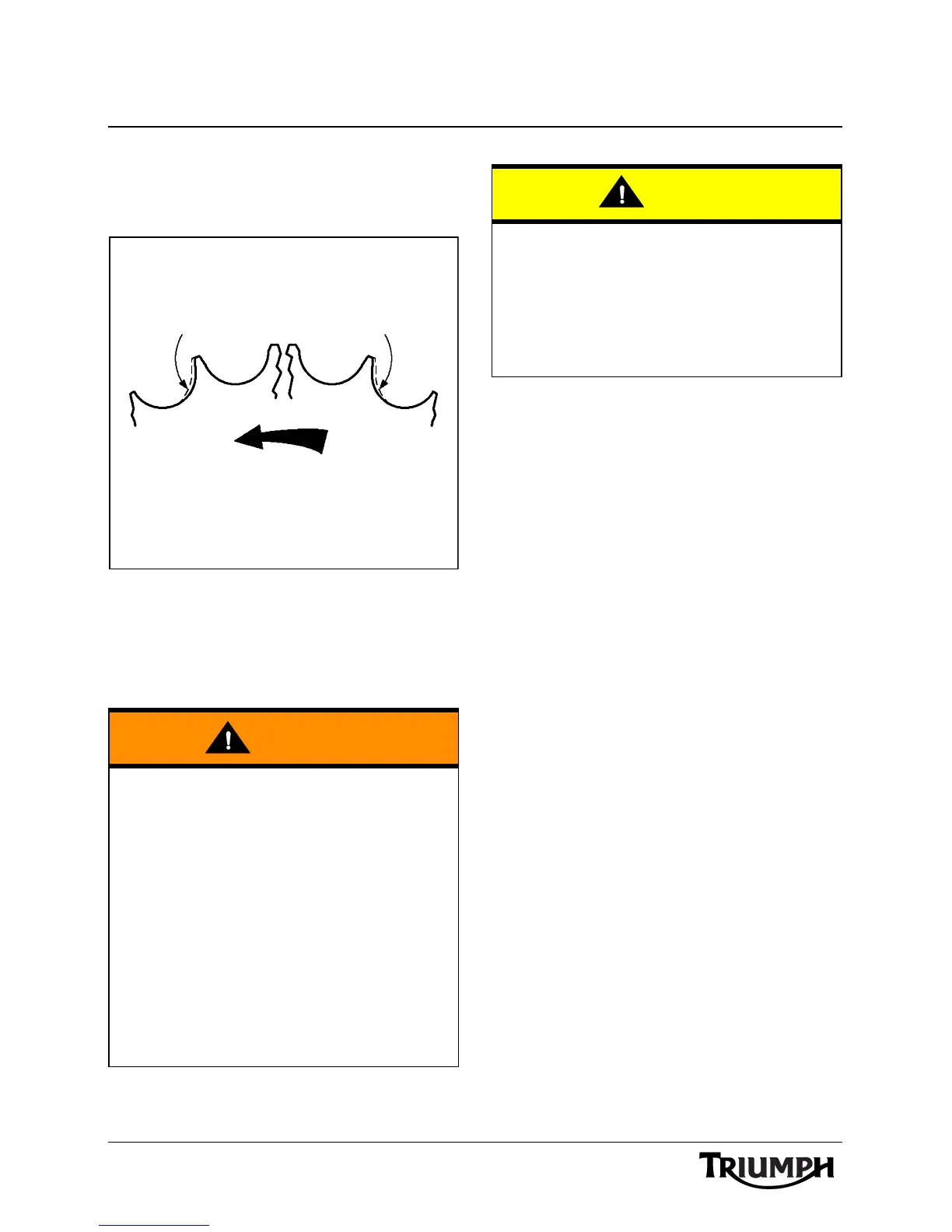

T509-- 33
WORN TOOTH
(ENGINE SPROCKET)
WORN TOOTH
(REAR SPROCKET)
Sprocket Wear Is Shown Exaggerated
Caution
If the sprockets are found to be worn,
always replace the sprockets and drive
chain together.
Replacing worn sprockets without also
replacing the chain will lead to premature
wear of the new sprockets.

Triumph America Specifications

General

Engine Type	Air-cooled, DOHC, parallel-twin, 270º firing interval
Displacement	865cc
Compression Ratio	9.2:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	5-speed
Frame	Tubular steel cradle
Front Suspension	41mm forks
Front Tire	110/80 R18
Max Power	61 hp @ 7, 400 rpm
Max Torque	72 Nm @ 3, 300 rpm
Exhaust	Chromed
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310mm disc, 2-piston caliper
Rear Wheel	Wire-spoked, 15 x 3.5in
Seat Height	720mm
Rear Brakes	Single 285mm disc, 2 piston caliper
Rear Tire	170/80 R15
