Maintenance and Adjustment
121
Rear Brake Fluid Level Inspection
and Adjustment
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorized
Triumph dealer for advice before riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.

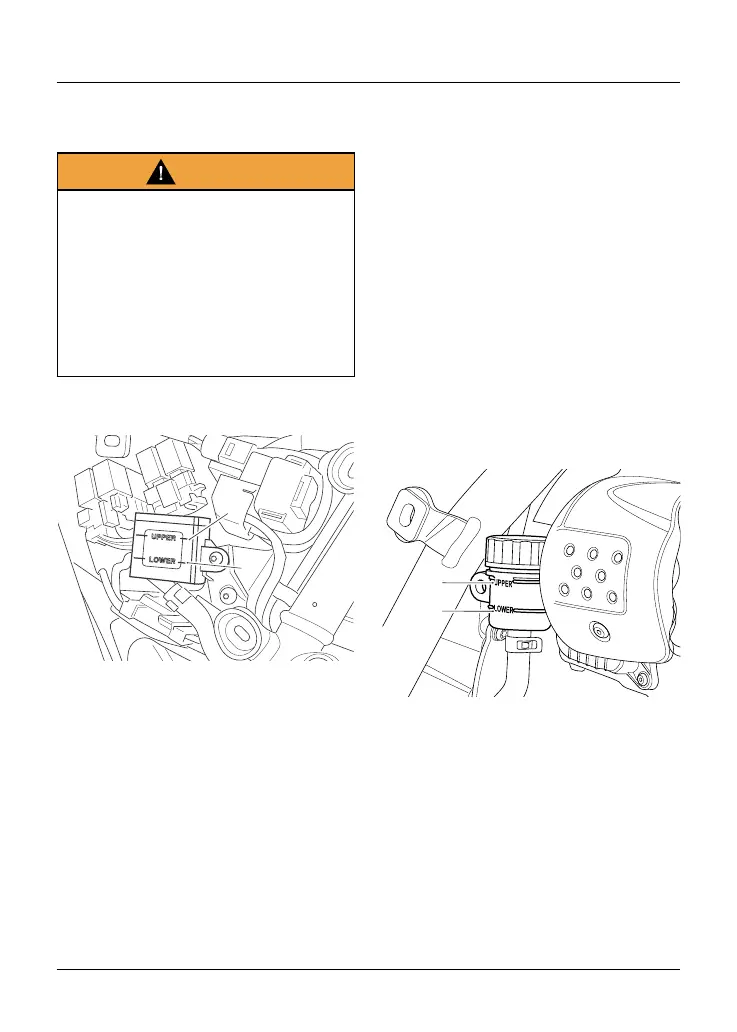

All Models except Street Scrambler
citi_1
1
2
1. Upper level line
2. Lower level line
To inspect the rear brake fluid level:
• Remove the right hand side panel as
described on page 68.
• The brake fluid level in the rear
reservoir must be kept between the
upper and lower level lines.
To adjust the rear brake fluid level:
• Release the reservoir from the
airbox without detaching the
connecting hose.
• Loosen the cap retaining screws
and remove the cap noting the
position of the sealing diaphragm.
• Fill the reservoir to the upper level
line using new DOT 4 from a sealed
container.
• Reinstall the reservoir cap making
sure that the diaphragm seal is
correctly positioned between the
cap and the reservoir body.
• Tighten the cap retaining screws to
13.3 lbf in (1.5 Nm).
• Reinstall the reservoir to the airbox
by tightening the original fastener
to 44 lbf in (5 Nm).
• Re-install the right hand side panel.
Street Scrambler
cjyu
1
2
1. Upper level line
2. Lower level line
To inspect the rear brake fluid level:
• Remove the right hand side panel as
described for the Street Scrambler
on page 69.
• The brake fluid level in the rear
reservoir must be kept between the
upper and lower level lines.
