Speedometer and Odometer
The speedometer indicates the road
speed of the motorcycle.
The odometer shows the total distance
that the motorcycle has travelled.
Tachometer
Caution
Never allow engine speed to enter the
red zone as severe engine damage
may result.
The tachometer shows the engine
speed in revolutions per minute - rpm
(r/min). At the end of the tachometer
range there is the red zone.
Engine speeds in the red zone are above
maximum recommended engine speed
and are also above the range for best
performance.
Gear Position Display
Street Scrambler and Street Twin
Only
10
20
110
120
120
0
0
20
40
180
200
1
2

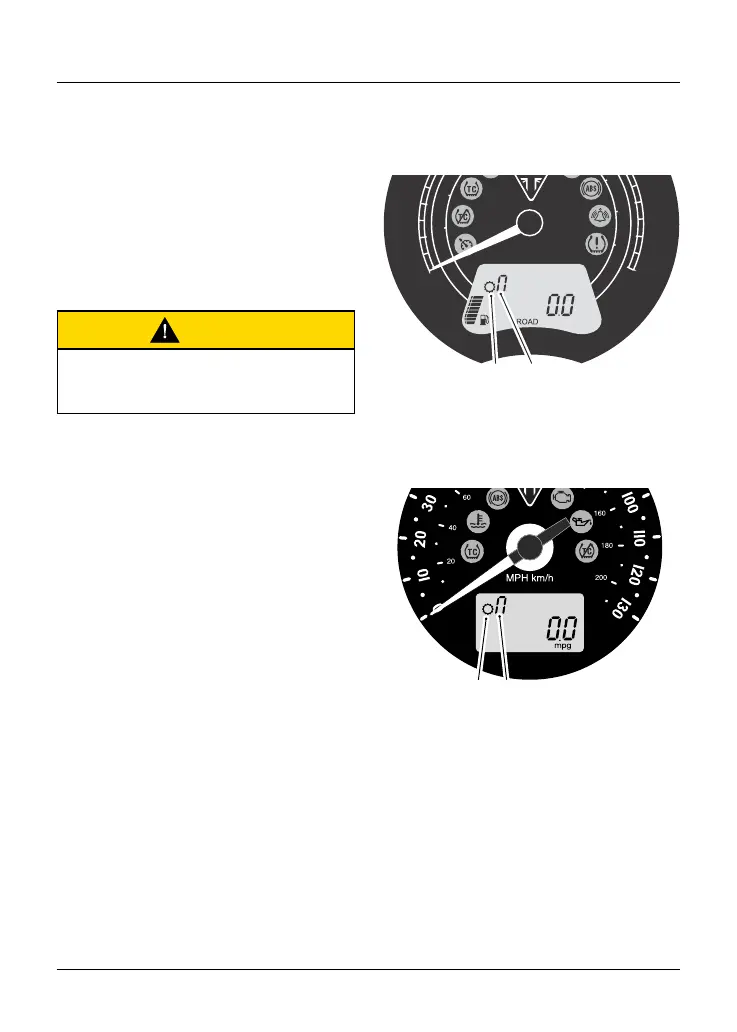

1. Gear position symbol
2. Gear position display (neutral position
shown)
All Other Models
21
1. Gear position symbol
2. Gear position display (neutral position
shown)
The gear position display indicates
which gear (1-5 or 1-6) has been
engaged. When the transmission is in
neutral (no gear selected), the display
screen will show n.
