Maintenance and Adjustment
148
License Plate Light
Bonneville T120 Ace,
Bonneville T120 Diamond and
Speed Twin
The license plate light unit is a sealed,
maintenance free LED unit. The license
plate light unit must be replaced in the
event of the failure of the license plate
light.
Street Scrambler and Street Twin

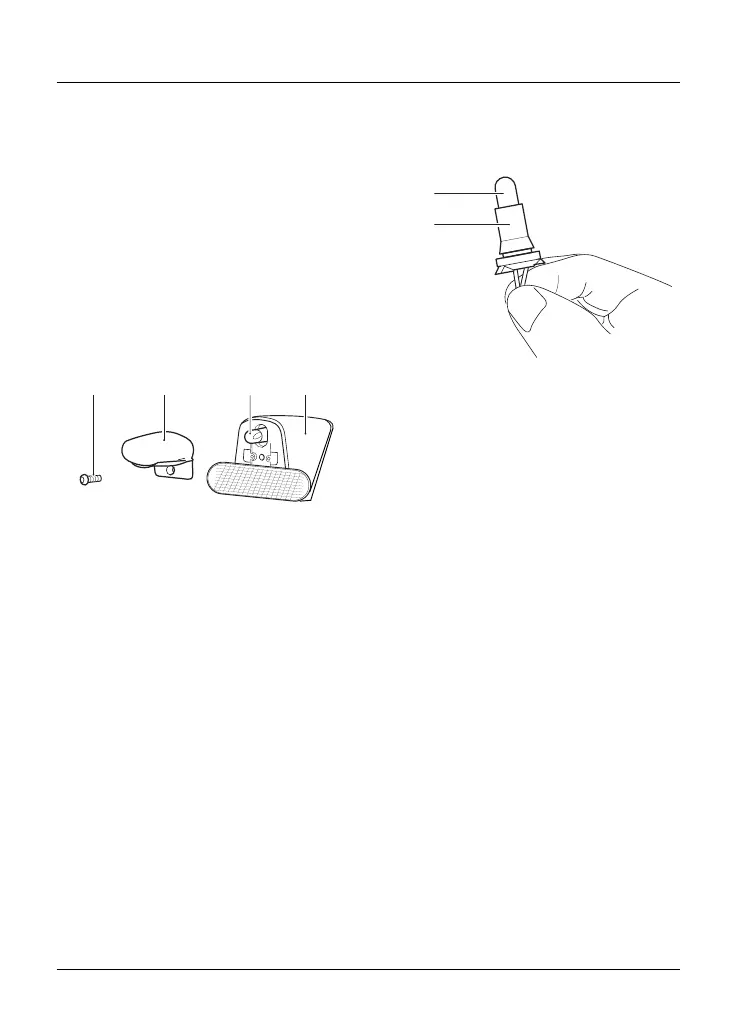

321 4
1. Fastener
2. Lens unit
3. Bulb
4. License plate bracket
To change the license plate light bulb:
• Disconnect the battery, negative
black lead first.
• Release the fastener from the lens
unit.
• Remove the lens unit from the
license plate bracket.
• Detach the bulb retainer from the
lens unit.
1
2
1. Bulb
2. Bulb retainer
• Carefully remove the bulb from the
bulb retainer. Mount a new bulb into
the bulb retainer.
• Remount the bulb retainer into the
lens unit.
• Remount the lens unit to the license
plate bracket.
• Tighten the fastener to 9 lbf in
(1 Nm).
• Reconnect the battery, positive (red)
lead first and tighten the battery
terminals to 39.8 lbf in (4.5 Nm).
• Apply a light coat of grease to the
terminals to prevent corrosion.
• Cover the positive terminal with the
protective cap.
