Maintenance and Adjustment
Remove the two fixings securing the
headlight rim to the headlight body.

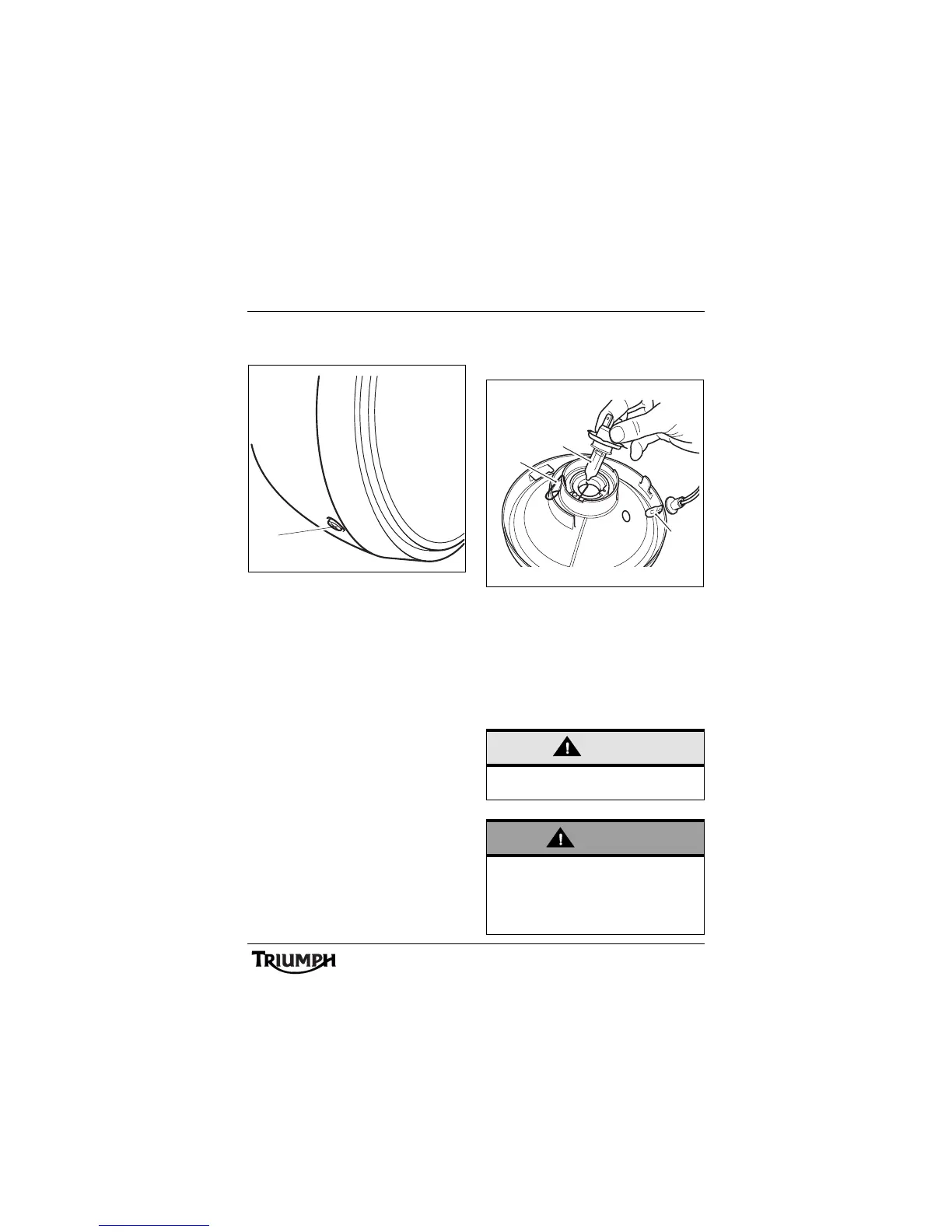

1. Headlight rim fixing (1 of 2)
Remove the headlight from its bowl while
supporting it to prevent the cables from
being over-extended.
Disconnect the multi-pin electrical connector
from the headlight bulb and remove the
rubber cover.
Detach the wire retainer from its clip (do not
remove the screw) then remove the bulb
from the light unit.
To remove the position light bulb:
Without pulling on the wires, ease the bulb
holder from its socket. The bulb is removed
from its holder by pulling gently upwards.
1. Headlight bulb
2. Bulb clip
3. Position light bulb
Installation for both bulbs is the reverse of the
removal procedure. Tighten the headlight rim
fixings to 3Nm.
Reconnect the battery, positive (red) lead first.
Refit the seat.
T9080481
1
Caution
When reconnecting the battery, connect
the positive (red) lead first.
Warning
Do not reconnect the battery until the
assembly process has been completed.
Premature battery reconnection could
result in ignition of the battery gases
causing risk of injury.
