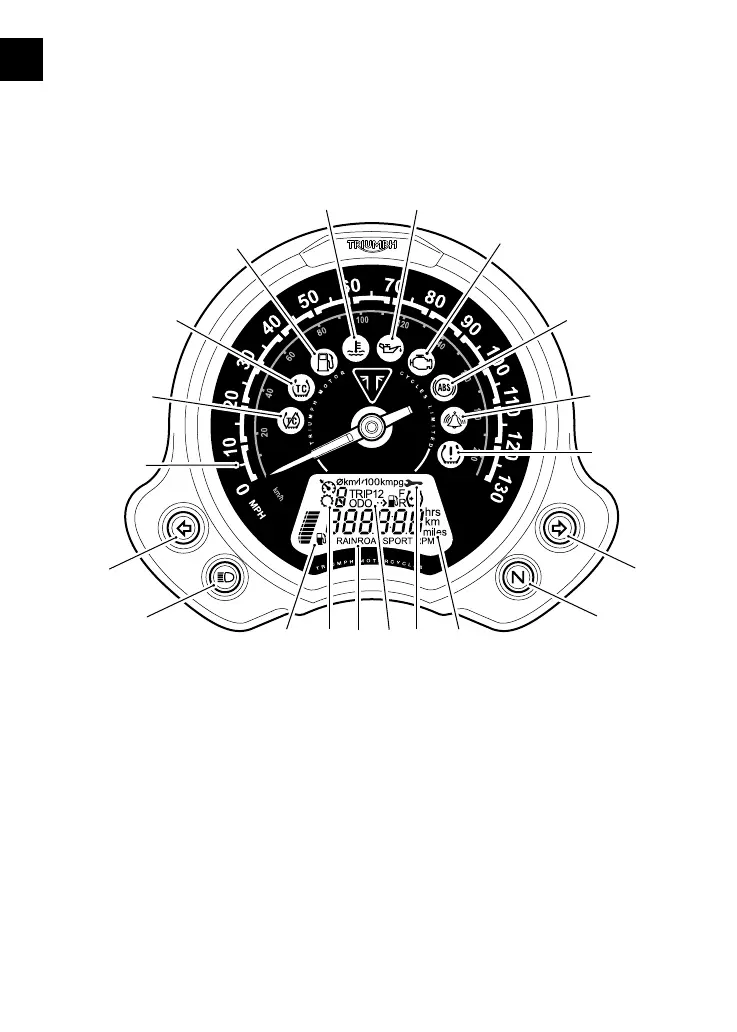

Instrument Panel Layout
Scrambler 900 and Speed Twin 900
(Speed Twin 900 shown)
19
18 17 16 15
11
10
9
8
7
5
4
3
2
1
12
14 13
20
6
1. Speedometer
2. Traction Control (TC) disabled warning
light
3. Traction Control (TC) indicator light
4. Low fuel level indicator light
5. High coolant temperature warning light
6. Low oil pressure warning light
7. Engine management Malfunction Indicator
Light (MIL)
8. Anti-lock Brake System (ABS) warning
light
9. Immobilizer/Alarm status indicator light
(alarm is an accessory kit)
10. Tire pressure warning light (if equipped
with Tire Pressure Monitoring System
(TPMS))
11. Right hand turn signal light
12. Neutral indicator light
13. Tachometer
14. Service interval indicator
15. Odometer/Trip meter/Clock
16. Rider mode display
17. Gear position indicator
18. Fuel gage
19. High beam indicator light
20. Left hand turn signal light

Triumph Speed Twin Specifications

General

Engine Type	Liquid-cooled, 8-valve, SOHC, 270° crank angle parallel-twin
Transmission	6-speed
Dry Weight	196 kg (432 lb)
Fuel Capacity	14.5 liters (3.8 US gallons)
Tires (Front)	120/70 ZR17
Tires (Rear)	160/60 ZR17
Max Power	100 PS / 98.6 bhp (73.6 kW) @ 7, 250 rpm
Max Torque	112 Nm @ 4, 250 rpm
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Brembo M50 4-piston calipers, 320mm discs, ABS
Rear Brakes	Single 220mm disc, Nissin 2-piston caliper, ABS
Seat Height	809 mm (31.8 in)
Frame	Tubular steel
