Trojan VISION 350 User Manual

10173-11
5. ASSEMBLY STEPS

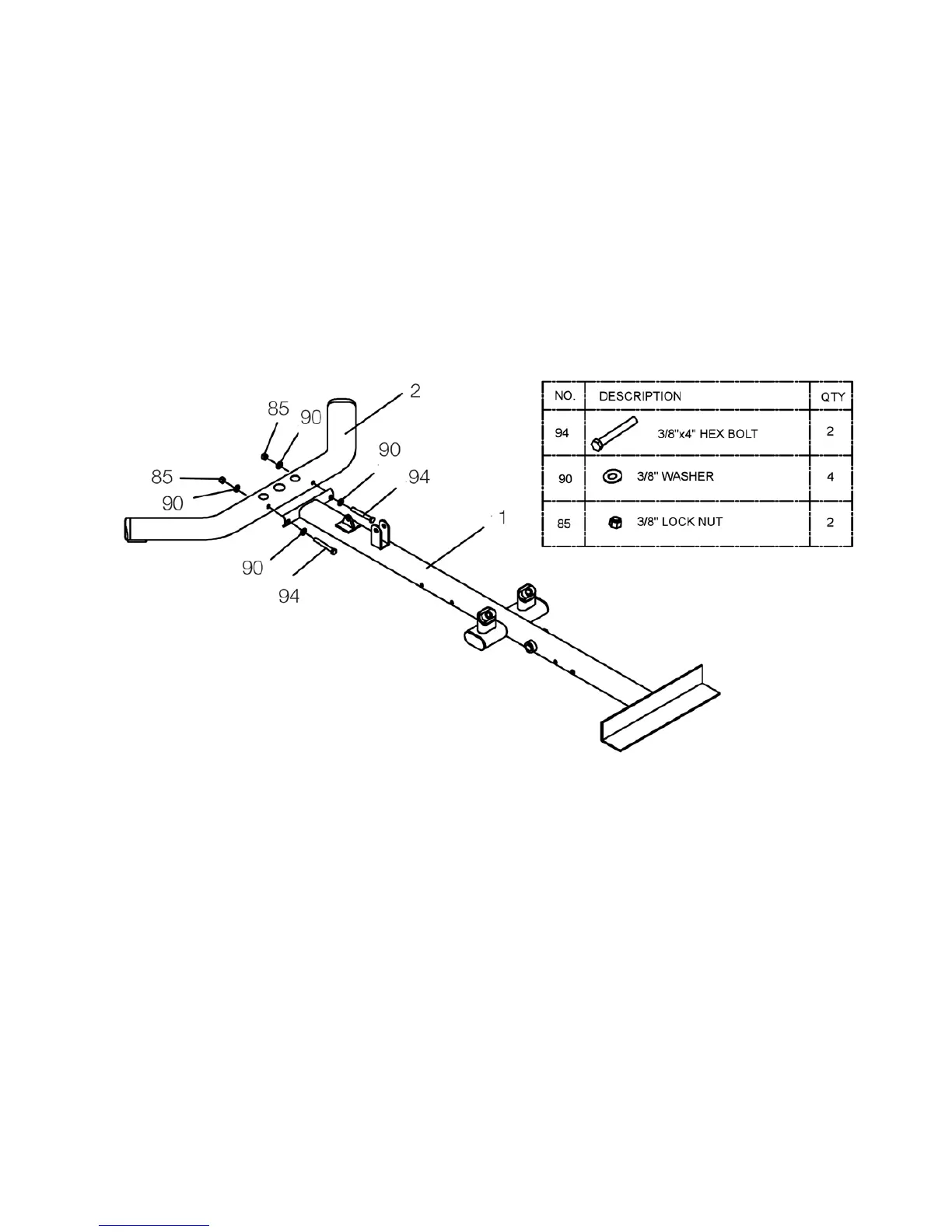

STEP 1
• AttachMainBase(1)toRearBase(2)usingtwo3/8”x4”HexBolts(94),four3/8”Washers(90)andtwo3/8”Lock
Nuts (85).
NO. DESCRIPTION QTY
77 1/2”x3-3/8”HexBolt 1
78 3/8”x3-3/4”HexBolt 2
79 3/8”x3”HexBolt 1
80 M10x25mmScrew 2
81 M8x16mmHexBolt 6
82 M8x42mmHexBolt 2
83 M8x60mmHexBolt 2
84 Ø19x280PivotShaft 1
85 3/8”LockNut 30
86 1/2”LockNut 1
87 5/8”LockNut 4
88 M8LockNut 2
89 M8 Washer 12
90 3/8” Washer 66
91 1/2” Washer 2
92 5/8” Washer 4
93 T3.0xØ11xØ36mmWasher 2
94 3/8”x4”HexBolt 2
95 T3.0xØ13xØ32mmWasher 1
96 T3.0xØ26xØ46mmWasher 1
97 3/8”x3/4”AllenBolt 2
98 Ø13xT1.0x11mmBushing 2
99 Ø13xT1.0x17mmBushing 2
100 Ø13xT1.0x22mmBushing 2
101 3/8”x1-3/4”HexBolt 1
