10173-19

STEP 9

• ThreadtheLowCable(64)throughbracketsasshowninthediagram.

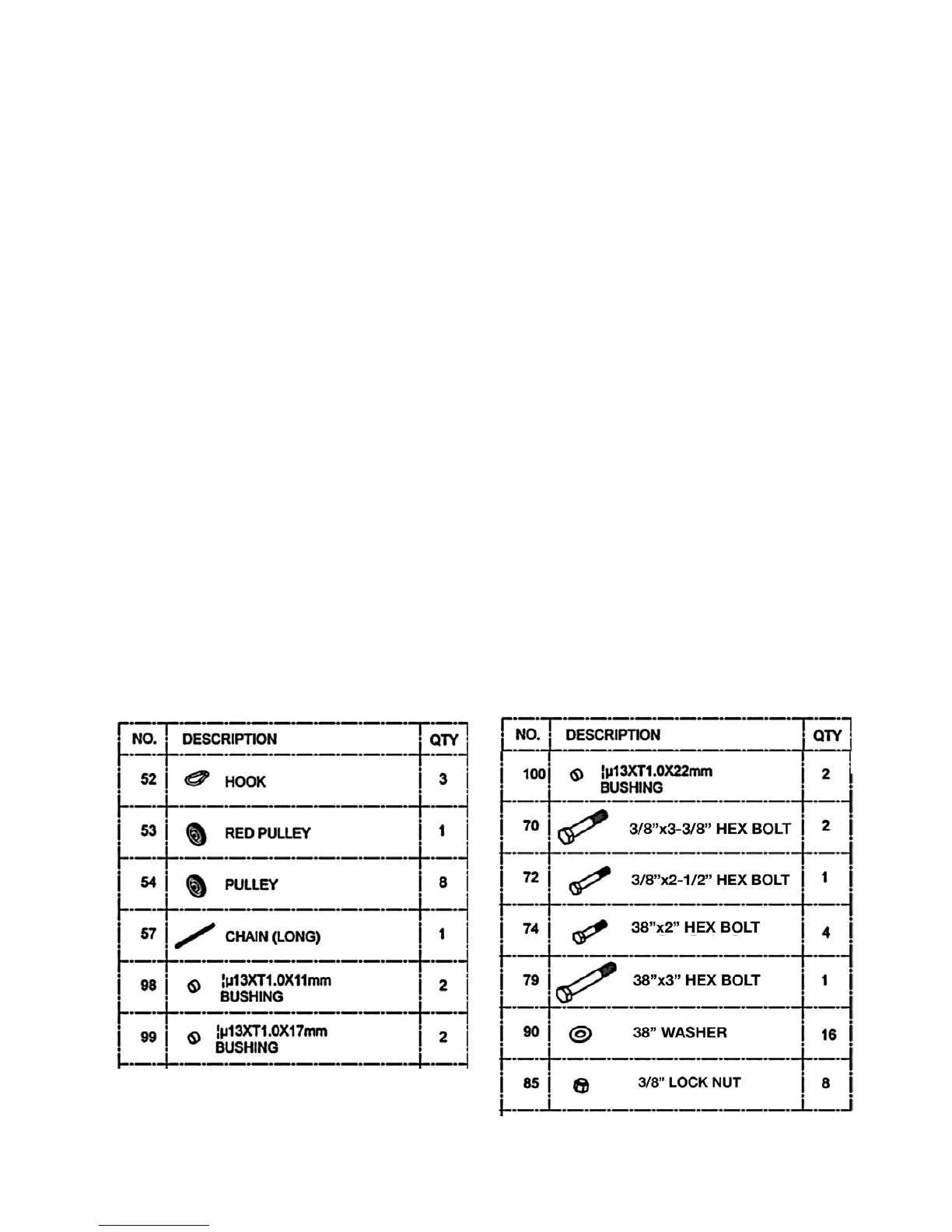

• WithLowCable(64)ingrooveofRedPulley(8),installthepulleyintotheholesofLegExtension(11)withone3/8”x2-1/2”

 HexBolt(72),twoØ13xT1.0x11mmBushings(98),two3/8”Washers(90)andone3/8”LockNut(85).

• WithLowCable(64)ingrooveofPulley(9),installthepulleyintotheholesofSeatSupportPost(10)withone3/8”x3”Hex

 Bolt(79),twoØ13xT1.0x17mmBushings(99),two3/8”Washers(90)andone3/8”LockNut(85).

• WithLowCable(64)ingrooveofPulley(10,12),installthepulleysintothebracketsofBenchPressArm(13)withone3/8”x

 3-3/8”HexBolt(70),two3/8”Washers(90)andone3/8”LockNut(85).

• WithLowCable(64)ingrooveofPulley(11),installthepulleyintotheslotofVerticalPost(3)withone3/8”x3-3/8”Hex

 Bolt(70),two3/8”Washers(90),twoØ13xT1.0x22mmBushings(100)andone3/8”LockNut(85).

• WithLowCable(64)ingrooveofPulley(13),installthepulleyintothebracketofVerticalPost(3)withone3/8”x2”Hex

 Bolt(74),two3/8”Washers(90)andone3/8”LockNut(85).

• WithLowCable(64)ingrooveofPulley(14),installthepulleyintotheloweroftheIntersectPulleyBracket(25)withone

 3/8”x2”HexBolt(74),two3/8”Washers(90)andone3/8”LockNut(85).

• WithLowCable(64)ingrooveofPulley(15),installthepulleyintothebracketofMainBase(1)withone3/8”x2”HexBolt

 (74),two3/8”Washers(90)andone3/8”LockNut(85).

• WithLowCable(64)ingrooveofPulley(16),installthepulleyintothelowerofPulleyBracketPlate(24)withone3/8”x2”

 HexBolt(74),two3/8”Washers(90)andone3/8”LockNut(85).

• AttachtheendofLowCable(64)tothesteelpieceofMainBase(1)withOneChainHook(52).Attachtheotherendof

 LowCable(64)toCurlBar(22)usingtwoChainHooks(52)andoneChain(Long)(57).

5. ASSEMBLY STEPS

ASSEMBLY DIAGRAM ON NEXT PAGE
