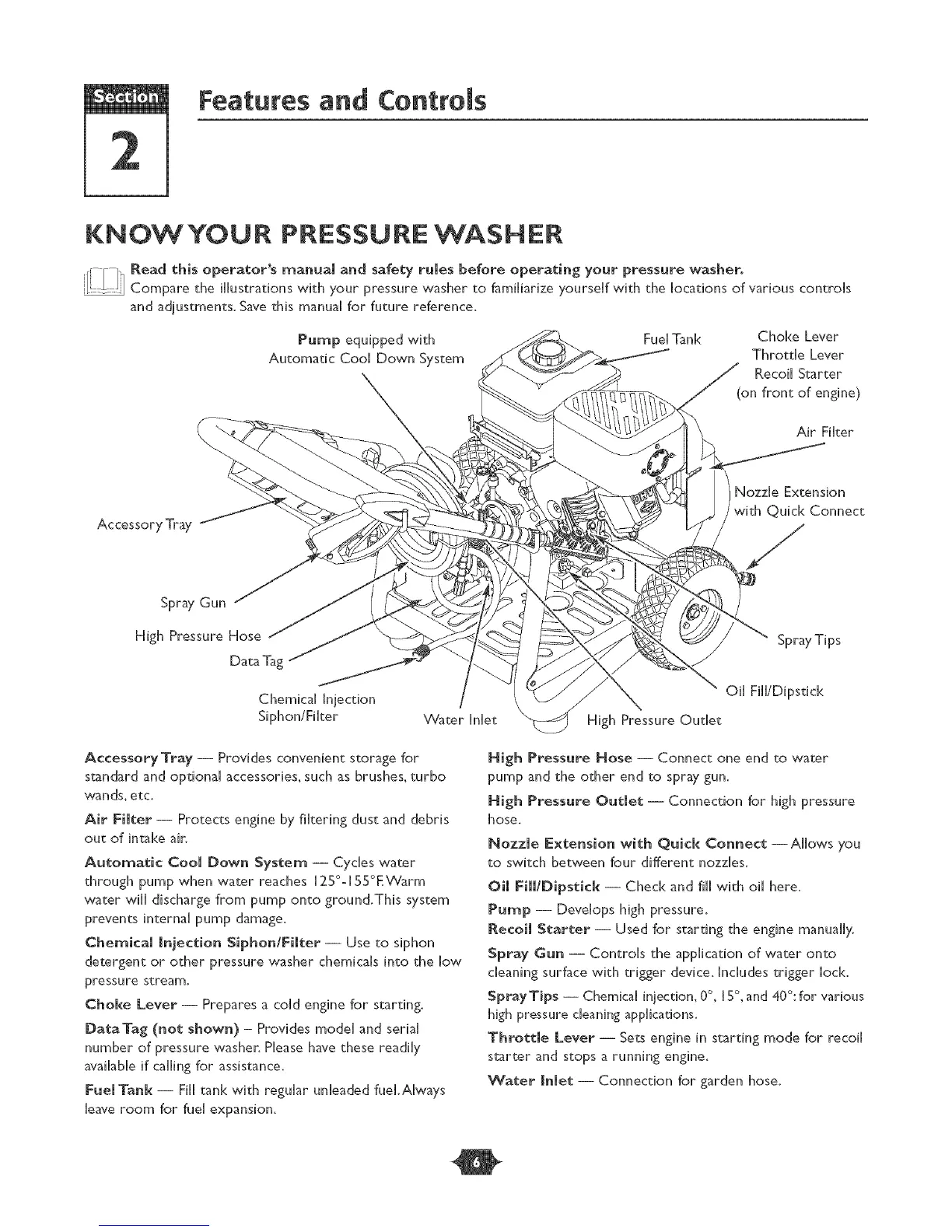

Features and ControJs
KNOWYOUR PRESSURE WASHER
iI- lil.ca.t.,soperator'sma°ua,a°.safetyru,es.e,oreoperat,°,yourpressurewas.er.
Compare the illustrations with your pressure washer to familiarize yoursdf with the Hocations of various controHs
and adiustments. Save this manuaHfor future reference.
Pump equipped with
Automatic CooH Down System
Fuel Tank
Choke Lever
Throttle Lever
Recoil Starter
(on front of engine)
Air Filter
AccessoryTray
Spray Gun
High Pressure Hose
Data Tag
Chemical Iniection
_A/ater inlet
Accessory Tray -- Provides convenient storage for
standard and optional accessories, such as brushes, turbo
wands, etc.
Air Filter -- Protects engine by filtering dust and debris
out of intake air.
Automatic Cool Down System -- Cycles water
through pump when water reaches 125°=155°EVVarm
water will discharge from pump onto ground.This system
prevents internal pump damage.
Chemical injection Siphon/Filter -- Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
Choke Lever -- Prepares a cold engine for starting.
DataTag (not shown) - Provides model and serial
number of pressure washer. Please have these readily
available if calling for assistance.
Fuel Tank- Fill tank with regular unleaded fuel.Always
leave room for fuel expansion.
SprayTips
Oil Fill/Dipstick
High Pressure Outlet
High Pressure Hose -- Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet -- Connection for high pressure
hose.
Nozzle Extension with Quick Connect --Allows you
to switch between four different nozzles.
Oil Fill/Dipstick -- Ched< and fill with oil here.
Pump -- Develops high pressure.
Recoil Starter -- Used for starting the engine manually.
Spray Gun -- Controls the application of water onto
cleaning surface with trigger device. Includes triF_userlock.
SprayTips -- Chemical injection 0°, 15°, and 40°: for various
high pressure cleaning applications.
Throttle Lever -- Sets engine in starting mode for recoil
starter and stops a running engine.
Water inlet -- Connection for garden hose.
