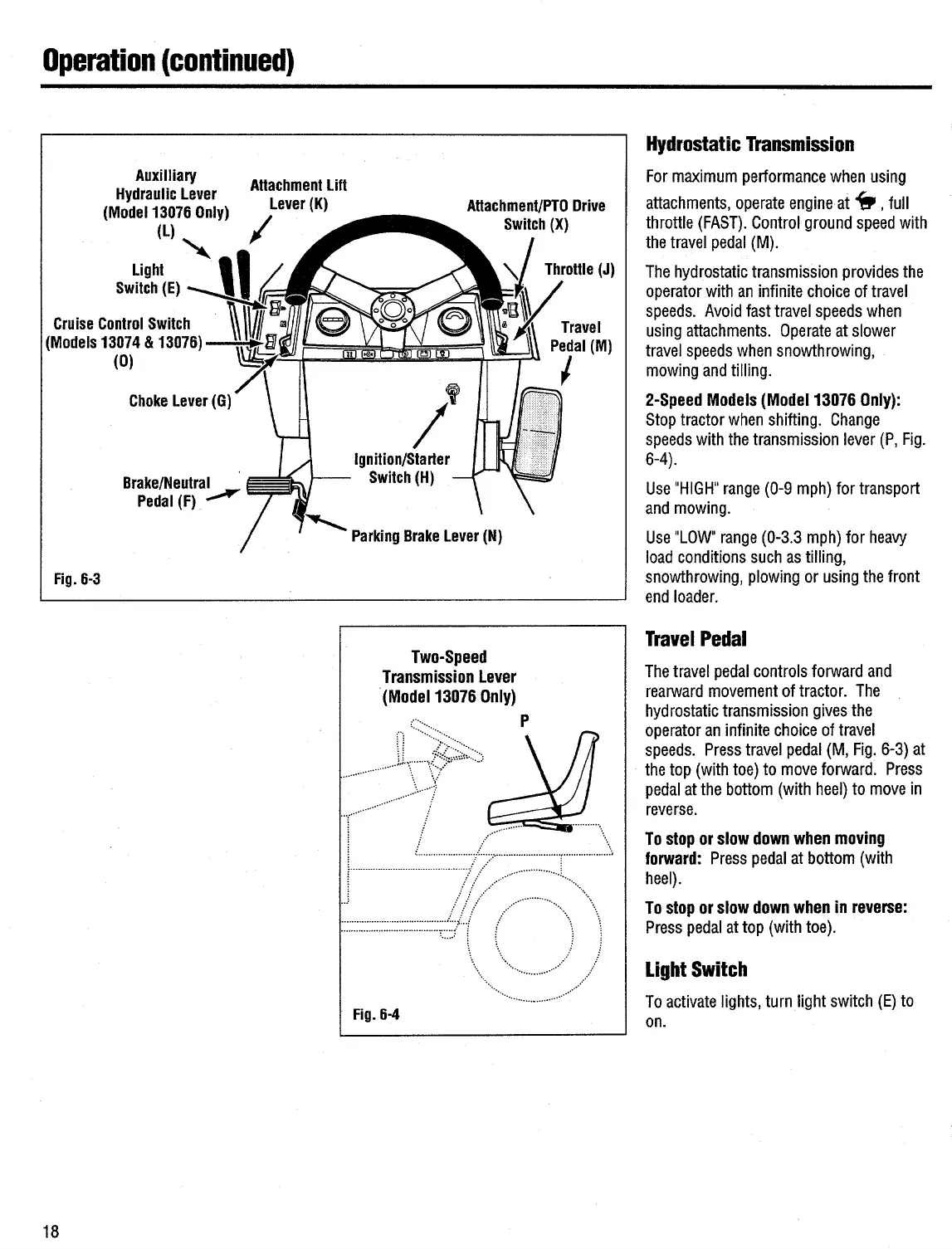

Operation (continued)
Auxilliary
Hydraulic Lever
(Model13076 Only)
(L)
Attachment Lift
Fig. 6·3
18
Light
Switch (E)
.......
Choke Lever (G)
Lever(K)
I
Parking Brake Lever (N)
···········
········
··y·····
Two-Speed
Transmission Lever
(Model13076 Only)
,....... p
... ··· ... ···· ..
..... tl.,:······'.(;~!;;;:;;;;:::::::,
__ ) .... ··~_?
I \
t························-~::::::::::::::::::_;./':>:::-:·.·.:······:::::::::::::::I.::··.·.:: .......... :·.
::: .............•.........................• // __ ; ........... ,,/················ ········· ... \ · ..
·······································:::::::·
\.
·· ............ ·····
..
/
.·
·... . ... ···
········-···
Fig. 6-4
Hydrostatic Transmission
For maximum performance when using
attachments, operate engine at iP , full
throttle (FAST). Control ground speed with
the travel pedal (M) .
The hydrostatic transmission provides the
operator with an infinite choice of travel
speeds. Avoid fast travel speeds when
using attachments. Operate at slower
travel speeds when snowthrowing,
mowing and tilling.
2-Speed Models (Model13076 Only):
Stop tractor when shifting. Change
speeds with the transmission lever (P, Fig.
6-4).
Use "HIGH" range (0-9 mph) for transport
and mowing.
Use "LOW" range (0-3.3 mph) for heavy
load conditions such as tilling,
snowthrowing, plowing or using the front
end loader.
Travel Pedal
The travel pedal controls forward and
rearward movement of tractor. The
hydrostatic transmission gives the
operator an infinite choice of travel
speeds. Press travel pedal (M, Fig. 6-3) at
the top (with toe) to move forward. Press
pedal at the bottom (with heel) to move in
reverse.
To stop or slow down when moving
forward: Press pedal at bottom (with
heel).
To stop or slow down when in reverse:
Press pedal at top (with toe).
Light Switch
To activate lights, turn light switch (E) to
on.
