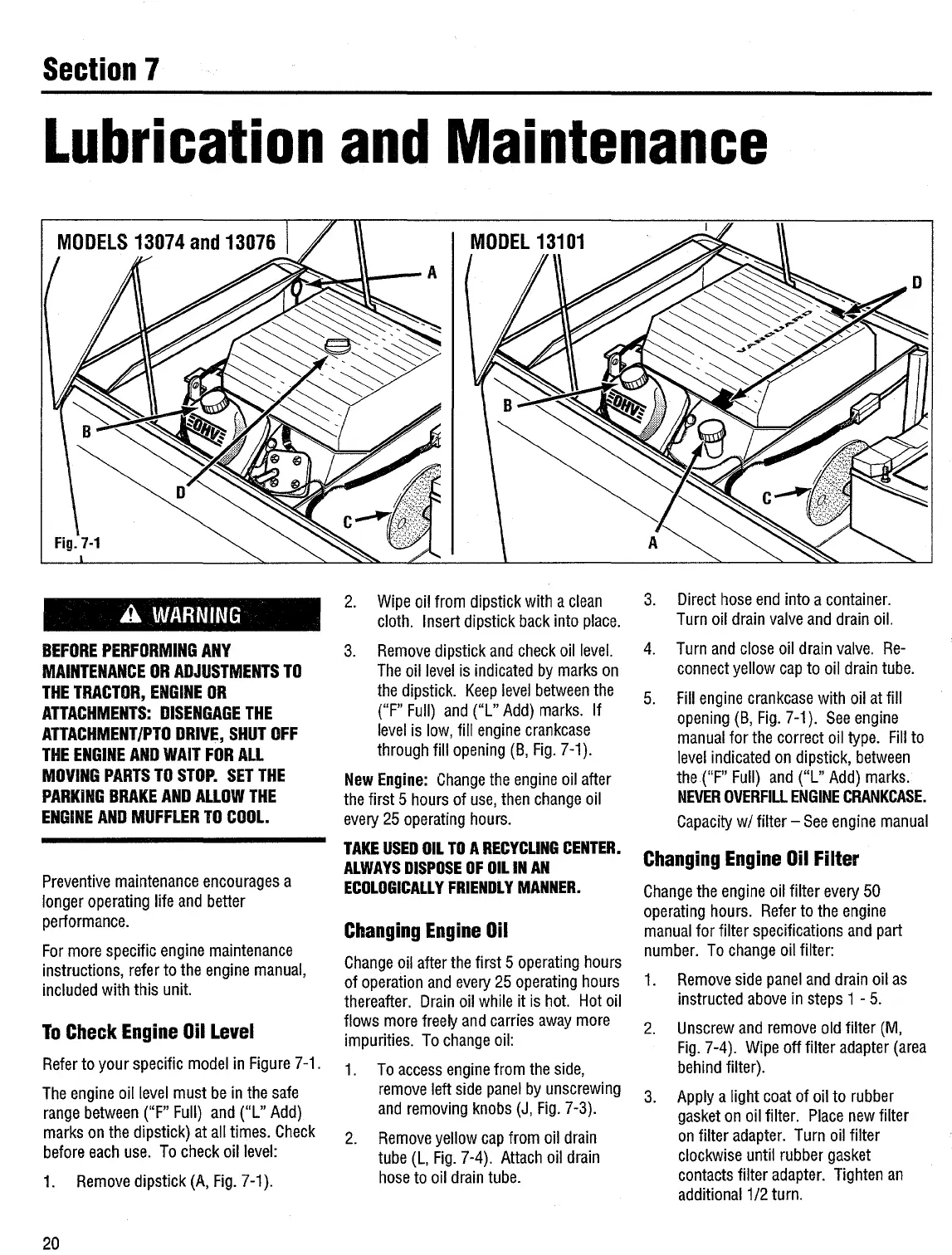

Troy-Bilt GTX 16 User Manual

Section 7
Lubrication and Maintenance
A WARNING
BEFORE PERFORMING ANY
MAINTENANCE OR ADJUSTMENTS TO
THE TRACTOR, ENGINE OR
ATTACHMENTS: DISENGAGE THE
ATTACHMENT/PTO DRIVE, SHUT Off
THE ENGINE AND WAIT FOR ALL
MOVING PARTS TO STOP. SET THE
PARKING BRAKE AND ALLOW THE
ENGINE AND MUFFLER TO COOL.
Preventive maintenance encourages a
longer operating life and better
performance.
For more specific engine maintenance
instructions, refer to the engine manual,
included with this unit.
To Check Engine Oil Level
Refer to your specific model in Figure 7-1.
The engine oil level must be in the safe
range between ("F" Full) and ("L" Add)
marks on the dipstick) at all times. Check
before each use. To check oil level:
1. Remove dipstick (A, Fig. 7-1).
20
2. Wipe oil from dipstick with a clean 3. Direct hose end into a container.
cloth. Insert dipstick back into place. Turn oil drain valve and drain oil.
3. Remove dipstick and check oil level.
The oil level is indicated by marks on
the dipstick. Keep level between the
("F" Full) and ("L" Add) marks. If
level is low, fill engine crankcase
through fill opening (8, Fig. 7-1 ).
New Engine: Change the engine oil after
the first 5 hours of use, then change oil
every 25 operating hours.
TAKE USED OIL TO A RECYCLING CENTER.
ALWAYS DISPOSE OF OIL IN AN
ECOLOGICALLY FRIENDLY MANNER.
Changing Engine Oil
Change oil after the first 5 operating hours
of operation and every 25 operating hours
thereafter. Drain oil while it is hot. Hot oil
flows more freely and carries away more
impurities. To change oil:
1. To access engine from the side,
remove left side panel by unscrewing
and removing knobs (J, Fig. 7-3).
2. Remove yellow cap from oil drain
tube (L, Fig. 7-4). Attach oil drain
hose to oil drain tube.
4. Turn and close oil drain valve. Re-
connect yellow cap to oil drain tube.
5. Fill engine crankcase with oil at fill
opening (8, Fig. 7-1). See engine
manual for the correct oil type. Fill to
level indicated on dipstick, between
the ("F" Full) and ("L" Add) marks.
NEVER OVERFILL ENGINE CRANKCASE.
Capacity w/ filter- See engine manual
Changing Engine Oil Filter
Change the engine oil filter every 50
operating hours. Refer to the engine
manual for filter specifications and part
number. To change oil filter:
1. Remove side panel and drain oil as
instructed above in steps 1 - 5.
2. Unscrew and remove old filter (M,
Fig. 7-4). Wipe off filter adapter (area
behind filter).
3. Apply a light coat of oil to rubber
gasket on oil filter. Place new filter
on filter adapter. Turn oil filter
clockwise until rubber gasket
contacts filter adapter. Tighten an
additional1/2 turn.
