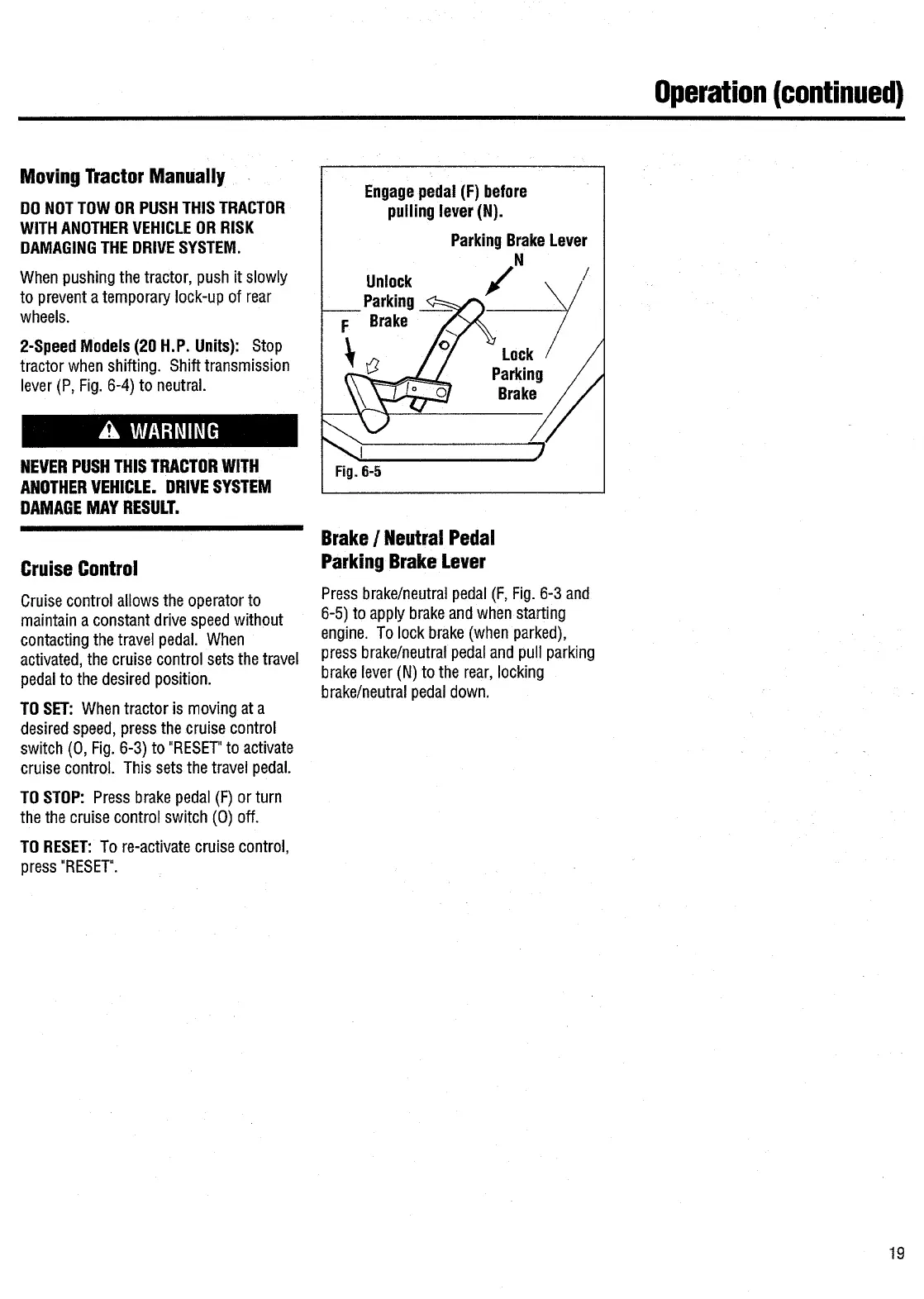

Moving Tractor Manually
DO NOT TOW OR PUSH THIS TRACTOR
WITH ANOTHER VEHICLE OR RISK
DAMAGING THE DRIVE SYSTEM.
When pushing the tractor, push it slowly
to prevent a temporary lock-up of rear
wheels.
2-Speed Models (20 H.P. Units): Stop
tractor when shifting. Shift transmission
lever (P, Fig. 6-4) to neutral.
A WARNING
NEVER PUSH THIS TRACTOR WITH
ANOTHER VEHICLE. DRIVE SYSTEM
DAMAGE MAY RESULT.
Cruise Control
Cruise control allows the operator to
maintain a constant drive speed without
contacting the travel pedal. When
activated, the cruise control sets the travel
pedal to the desired position.
TO SET: When tractor is moving at a
desired speed, press the cruise control
switch (0, Fig. 6-3) to "RESET" to activate
cruise control. This sets the travel pedal.
TO STOP: Press brake pedal (F) or turn
the the cruise control switch (0) off.
TO RESET: To re-activate cruise control
press "RESET". '
Engage pedal (F) before
pulling lever (N).
Unlock
Parking
Brake
Fig. 6-5
Parking
Brake
Brake I Neutral Pedal
Parking Brake Lever
Press brake/neutral pedal (F, Fig. 6-3 and
6-5) to apply brake and when starting
engine. To lock brake (when parked),
press brake/neutral pedal and pull parking
brake lever (N) to the rear, locking
brake/neutral pedal down.
Operation (continued)
19
