Controls & Features
4
10

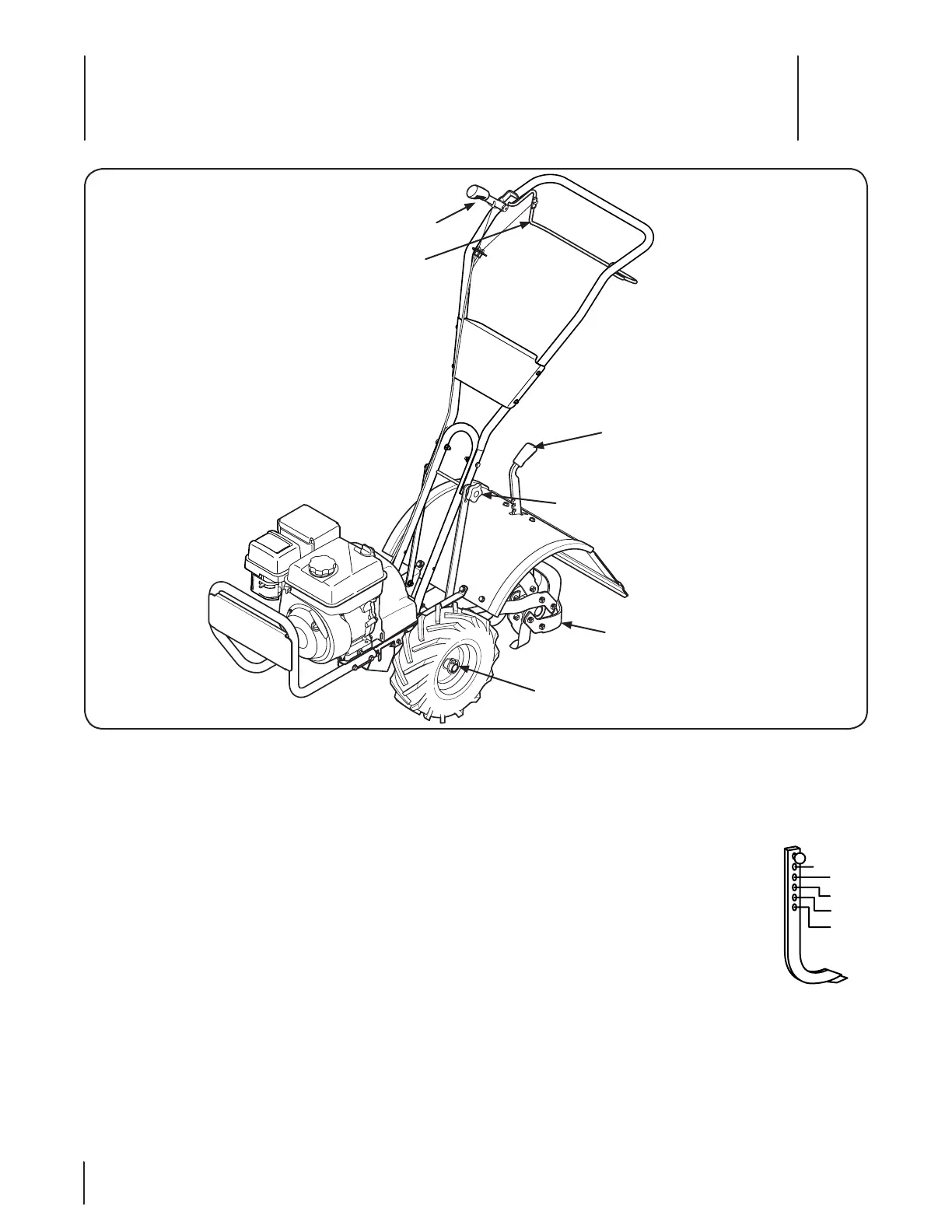

Figure 4-1
NOTE:
models. The tiller depicted may differ from yours.
Engine Controls
For detailed information on all engine controls refer to the
Wheel Drive Pins
Each wheel is equipped with a wheel drive click pin that secures
the wheel to the wheel shaft. The wheels can be positioned in
either a wheel drive or a freewheel mode.
Forward Clutch Bail
The forward clutch bail controls the engagement of the forward
drive of the wheels and tines.
Reverse Handle Assembly (if so equipped)
The reverse handle assembly controls the engagement of the
reverse drive of the wheels and tines.
Depth Regulator Lever
This lever controls the tilling depth of the tines.
Pull the lever back and slide it up or down to
engage the notched height settings.
Handlebar Height Adjustment
The handlebar height is adjustable to three different settings. In
general, adjust the handlebars so they are at waist level when the
Depth Regulator Lever
Handlebar Height Adjustment
Wheel Drive Pin
Tines
Reverse Handle Assembly
Forward Clutch Bail
