Assembly
Remove all loose parts before assembling.
Handle Assembly
Observe the lower rear area of the snow thrower to be sure 2.
both cables are aligned with roller guides before pivoting
NOTE: Make certain the upper ends of each cable are
seated properly in its bracket.
Secure the handle by tightening the plastic knob located 3.
on both the left and right sides of the handle. Remove
and discard any rubber bands, if present. They are for
packaging purposes only.

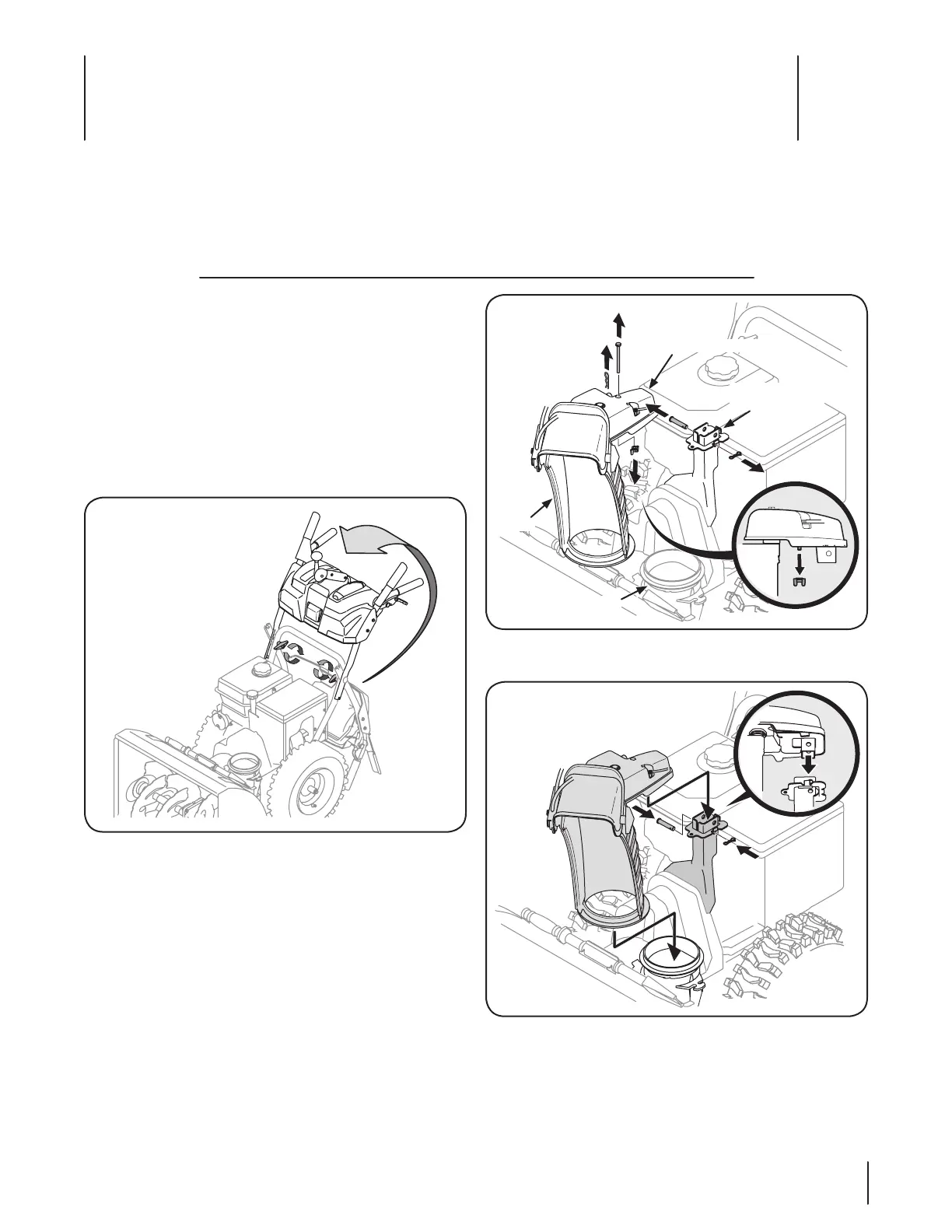

Chute Assembly
Remove cotter pin, wing nut and hex screw from chute
control head and clevis pin and bow-tie cotter pin from
chute support bracket. Position the chute over the chute
base. See Fig. 3-2.
Place chute onto chute base and secure chute control head 2.
to chute support bracket with clevis pin and bow-tie cotter
pin removed earlier. See Fig. 3-3.
Contents of Carton
One Snow Thrower Two Replacement Auger Shear Pins One Product Registration Card
One Snow Thrower Operator’s
Manual
Chute Assembly
Figure 3-3
Figure 3-1
Chute Control Head
Chute
Chute Support
Bracket
Chute Base
Figure 3-2
Assembly & Set-Up
3
7
