Assembly
Handle

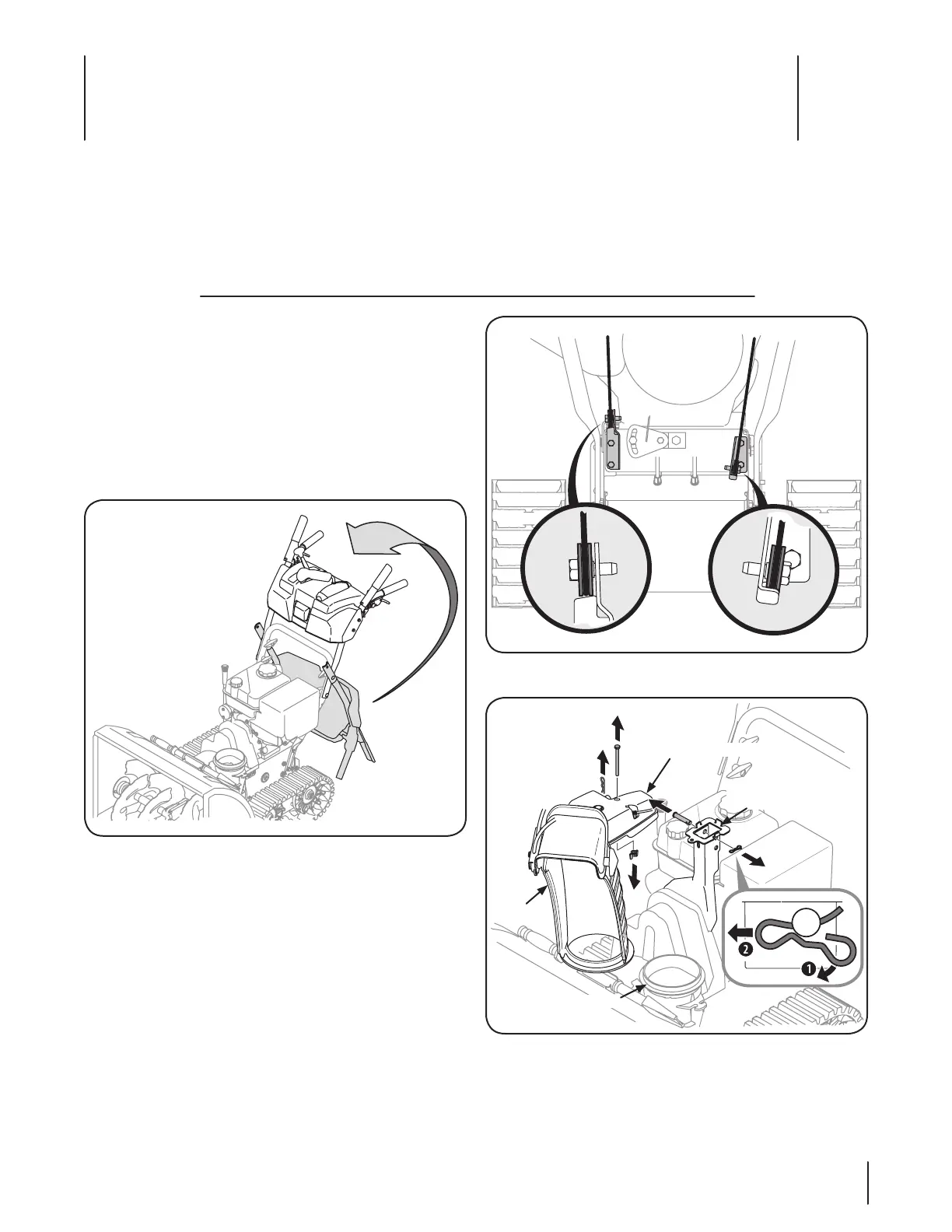

Remove the lower plastic wing nut and carriage bolt from 2.
each side of the upper handle; raise the upper handle
NOTE: Make certain the cables are seated properly in the
roller guides. See Figure 3-2.
Looking beneath the handle panel, check that all of the 3.
cables (steering, auger, shift, and drive) are properly routed
and not pinched or kinked.
Secure the handle by tightening the plastic knob located
on both the left and right sides of the handle. Remove
and discard any rubber bands, if present. They are for
packaging purposes only.
Chute Assembly
Remove cotter pin, wing nut and hex screw from chute
control head. Remove clevis pin and bow-tie cotter pin
from chute support bracket. See Fig. 3-3.
Bracket
Assembly & Set-Up
3
7
