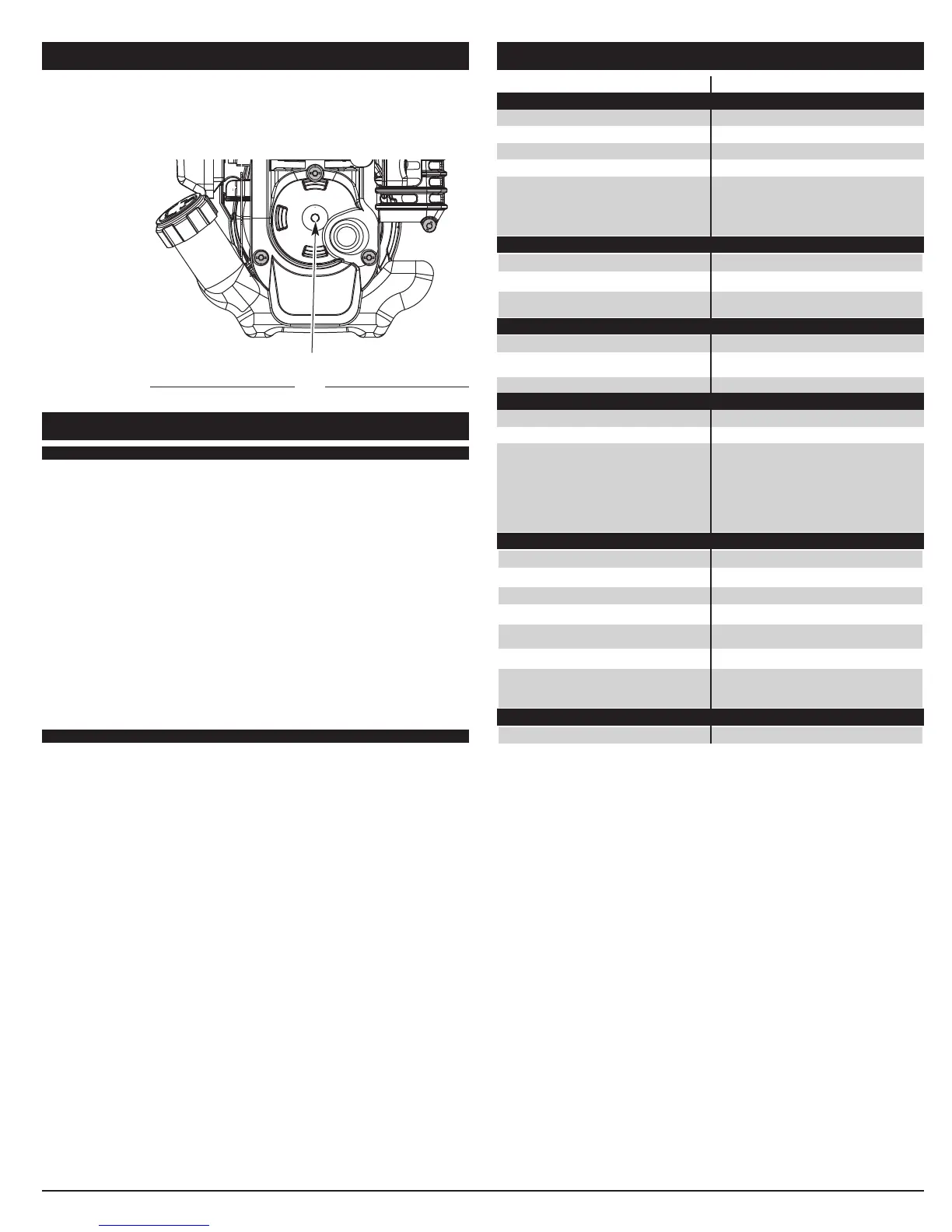

ELECTRIC STARTER AND POWER START BIT™ FEATURES
This unit is designed to be started with an optional electric starter or Power
Start Bit™ that are sold separately. If choosing to start the unit using one of
these features or have questions please contact your local retailer or call 1-
800-828-5500 U.S, (1-800-668-1238 Canada), for more information and
purchasing. You may also go to www.troybilt.com or www.troybilt.ca.
Electric Start Feature
ENGINE*
Drive Shaft Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Tube (EZ-LINK®)
Throttle Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Finger-Tip Trigger
Total Approximate Unit Weight (without fuel) . . . . . . . . 12-13.5 lbs (5.4-6 kg)
Cutting Mechanism. . . . . . . 4-Tooth Cutting Blade, Dual String Cutting Head
Line Spool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bump Line Releaser
Line Spool Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 inches (101.6 mm)
Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . 0.105 inches (2.67 mm)
Cutting Path Diameter, Trimmer Head . . . . . . . . . . . . . . . 18 inches (45.7 cm)
Cutting Path Diameter, Blade Head. . . . . . . . . . . . . . . . . . 8 inches (204 mm)
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 4-Cycle
Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 cu. in. (29 cc)
Operating RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,800+ rpm
Idle Speed RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,800 - 3,600 rpm
Ignition Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronic
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rocker Switch
Valve clearance . . . . . . . . . . . . . . . . . . . 0.003 – 0.006 in. (0.076 – 0.152 mm)
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 inch (0.635 mm)
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SAE 30 Oil
Crankcase Oil Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.04 oz (90 ml)
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unleaded
Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Diaphragm, All-Position
Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Rewind
Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Baffled with Guard
Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Spring Return
Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 oz (414 ml)
DRIVE SHAFT AND CUTTING ATTACHMENT*
SPECIFICATIONS
*All specifications are based on the latest product information available at the time
of printing. We reserve the right to make changes at any time without notice.
Oil, cleaner or lubricant in cutting head Clean and thoroughly dry the cutting head
If further assistance is required, contact your authorized service dealer.
OPTIONAL ACCESSORY
Fig. 49
CAUSE ACTION
Old fuel (over 30 days) Drain fuel tank and add fresh fuel
Fouled spark plug Replace or clean the spark plug
T
he outside temperature is above 90˚ F
M
ove the choke lever to Position 2, press
the primer bulb 10 times, squeeze the
throttle control and pull the starter rope
u
ntil the unit starts. Run the unit for 2-5
minutes. The unit may be used during
this time. Then move the choke lever to
P
osition 3.
O
ld fuel (over 30 days)
D
rain gas tank and add fresh fuel
Cutting attachment bound with grass
Stop the engine and clean the cutting
a
ttachment
D
irty air filter
C
lean or replace the air filter
TROUBLESHOOTING
E
mpty fuel tank
F
ill fuel tank with fuel
Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times
Old fuel (over 30 days) Drain fuel tank and add fresh fuel
Fouled spark plug Replace or clean the spark plug
E
ngine is over heated
Move the choke lever to Position 2,
squeeze the throttle control and pull the
s
tarter rope until the unit starts. Run the
u
nit for 2-5 minutes. Then move the
choke lever to Position 3.
A
ir filter is plugged
R
eplace or clean the air filter
Old fuel (over 30 days) Drain fuel tank and add fresh fuel
Improper idle speed
Adjust according to the Idle Speed
Adjustment section
Cutting attachment bound with grass Stop the engine and clean cutting attachment
Cutting attachment out of line Refill with new line
Inner reel bound up Replace the inner reel
Cutting head dirty Clean inner reel and outer spool
Line welded
Disassemble, remove the welded section
and rewind
Line twisted when refilled Disassemble and rewind the line
Not enough line is exposed
Push the bump head and pull out line
until 4 inches (102 mm) of line is outside
of the cutting attachment
E
NGINE WILL NOT START
E
NGINE WILL NOT IDLE
ENGINE WILL NOT ACCELERATE
ENGINE LACKS POWER OR STALLS WHEN CUTTING
CUTTING ATTACHMENT WILL NOT ADVANCE LINE
CUTTING LINE ADVANCES UNCONTROLLABLY

Troy-Bilt TB590 EC Specifications

General

Brand	Troy-Bilt
Model	TB590 EC
Category	Trimmer
Language	English
