TSC Alpha-3R User Manual

20
6 Operator Interface

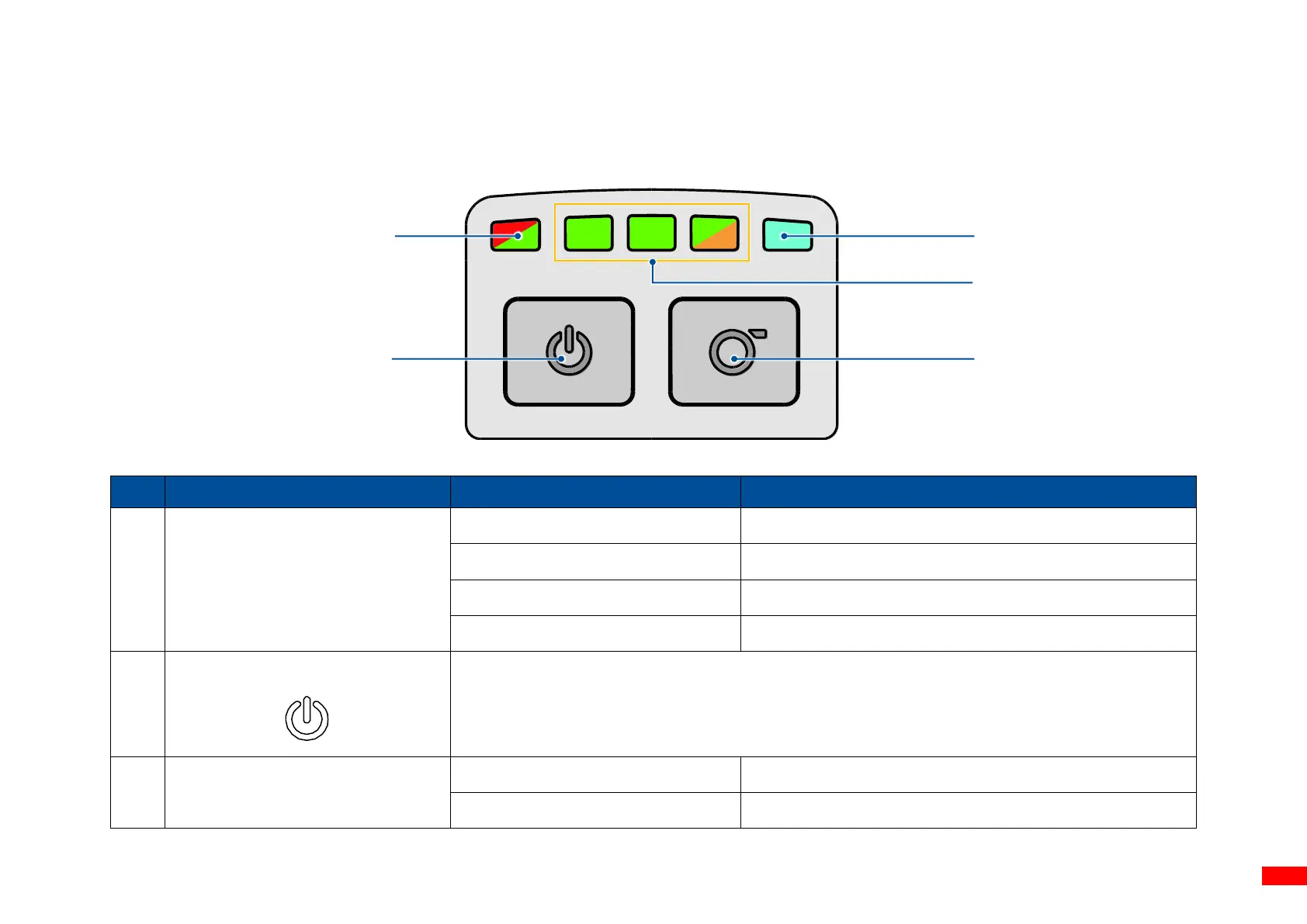

6.1 LED Indicators and Buttons
No.
Name & Icon
Status
Description
1
Printer status LED
Off
The printer is turned on and ready.
Green (blinking)
The printer is in pause state.
Red (solid)
The media cover is opened.
Red (blinking)
The printer is encountering errors.
2
Power button
 When the printer is turned off, press and hold for 2 - 3 seconds to turn on the printer.
 When the printer is on, press and hold for 2 - 3 seconds to turn off the printer.
3
Wireless connection status LED
Blue (solid)
The wireless connection is ready.
Blue (blinking)
The wireless device is communicating.
1
2
4
5
3

TSC Alpha-3R Specifications

General

Flash memory	4 MB
Certification	FCC, CE, CB, CCC, C-Tick, BIS, EAC, IC, NOM, NCC, RoHS, WEEE
Internal memory	8 MB
Built-in barcodes	Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	Yes
Page description languages	CPCL-native, EPL2, ESC/POS, TSPL-EZ, ZPL II
Core diameter	25.4 mm
Media thickness	0.14 mm
Maximum roll diameter	57 mm
Package type	Box
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Bluetooth	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Optional connectivity	Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Product color	Black, Grey
Battery voltage	7.4 V
Battery capacity	2500 mAh
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	72 mm
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight and Dimensions

Depth	148 mm
Width	116 mm
Height	70 mm
Weight	550 g
