TSC Alpha-3R User Manual

29

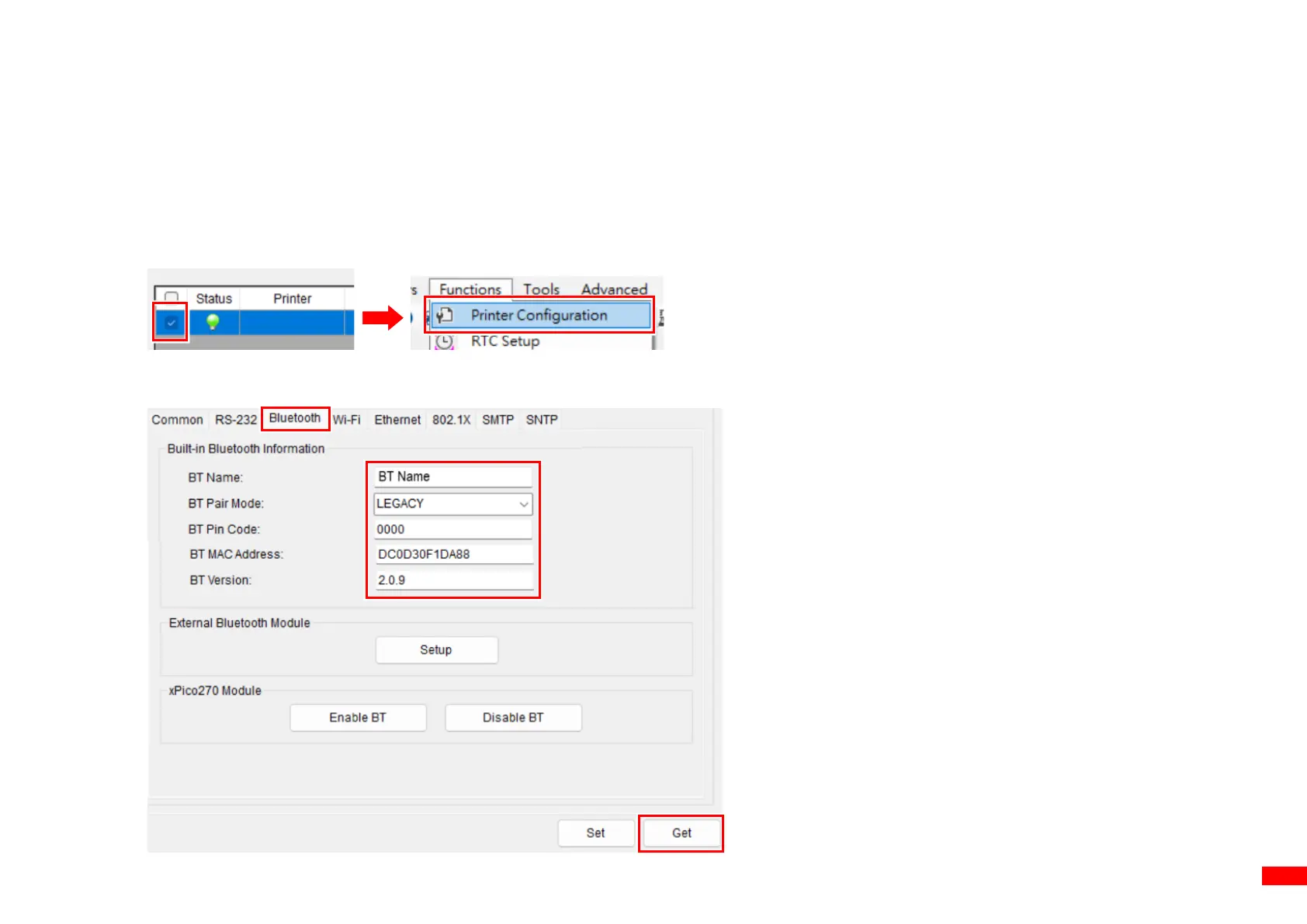

7.3 Configuring Bluetooth
Follow the steps below to configure Bluetooth for your printer:
1. Add the printer to the TSC Console main page via the USB port or COM port. For how to add the printer to the TSC Console
main page, please refer to Launching TSC Console.
2. Double click the printer you want to configure to open the Printer Configuration page.
3. Select the Bluetooth tab. Press the Get button to read the Bluetooth configuration.

TSC Alpha-3R Specifications

General

Flash memory	4 MB
Certification	FCC, CE, CB, CCC, C-Tick, BIS, EAC, IC, NOM, NCC, RoHS, WEEE
Internal memory	8 MB
Built-in barcodes	Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	Yes
Page description languages	CPCL-native, EPL2, ESC/POS, TSPL-EZ, ZPL II
Core diameter	25.4 mm
Media thickness	0.14 mm
Maximum roll diameter	57 mm
Package type	Box
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Bluetooth	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Optional connectivity	Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Product color	Black, Grey
Battery voltage	7.4 V
Battery capacity	2500 mAh
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	72 mm
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight and Dimensions

Depth	148 mm
Width	116 mm
Height	70 mm
Weight	550 g
