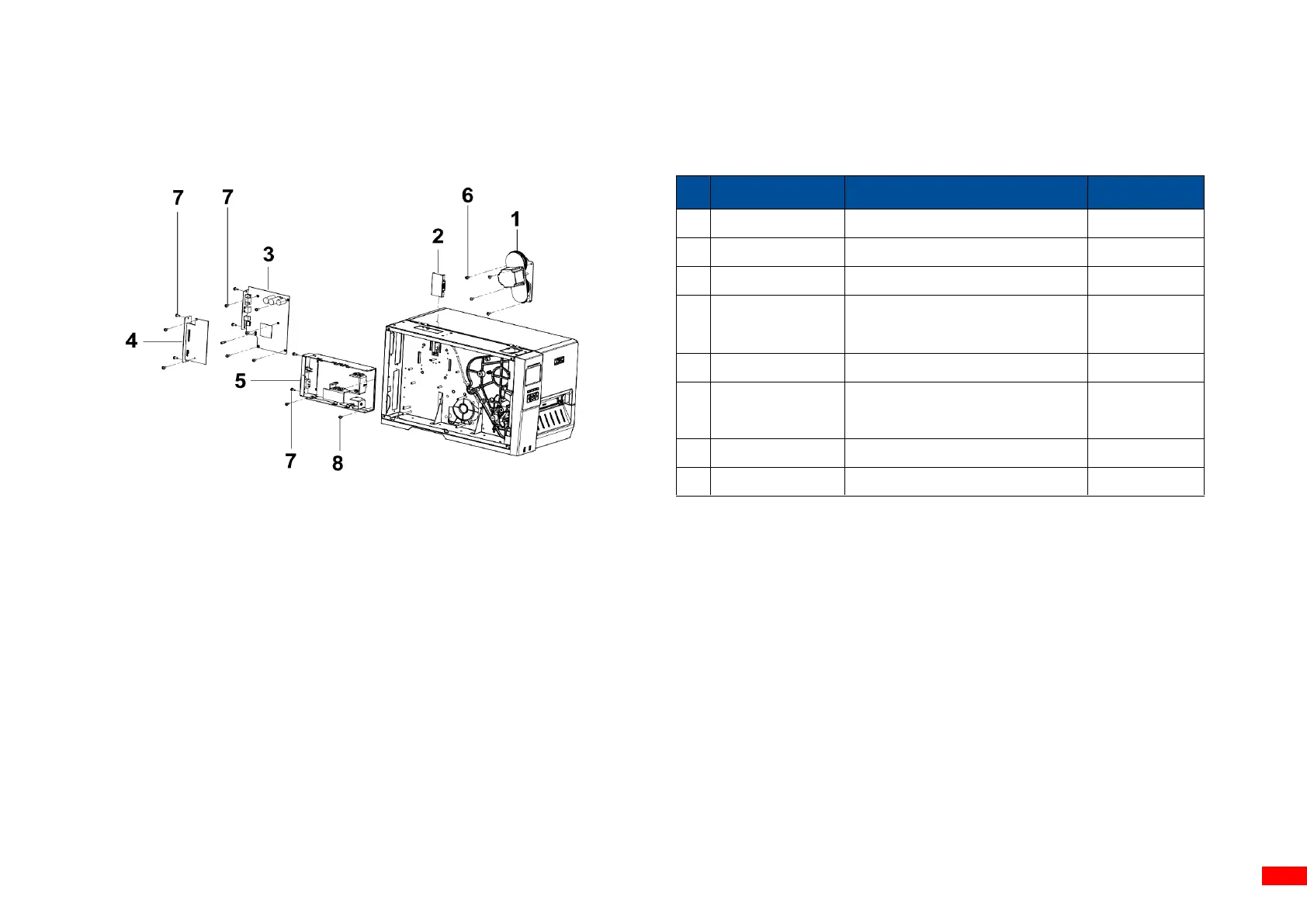

3. Electronics Side Assemblies
NO.
PART NO.
DESCRIPTION
SUGGEST
ATTACH RATE
1
SP-MH241-0021
STEPPING MOTOR ASSY
1%
2
SP-MH241-0022
MEDIA NEAR END SENSOR ASSY
3%
3
SP-MH241-0023
MAIN BOARD ASSY
5%
4
SP-MH241-0024
GPIO interface assembly (DB15F,
including parallel port, Factory
option)
5
SP-MH241-0025
POWER SUPPLY
3%
6*
--
MACHINE SPRING WASHER SCREW,
M4*8
7*
--
MACHINE SCREW, M3*6
8*
--
MACHINE WASHER SCREW, M3*12
* NOTE: Available only in Hardware Field Kit (P/N: SP-MH241-0052)
